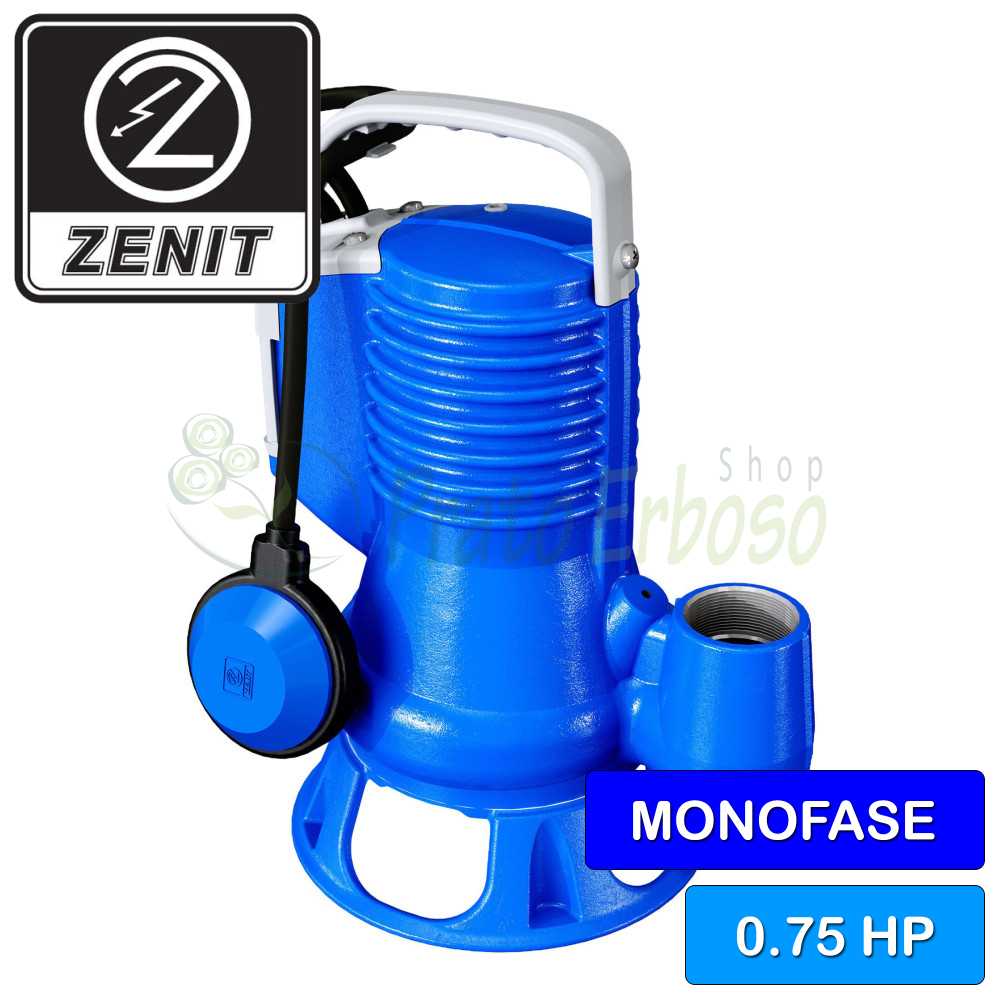

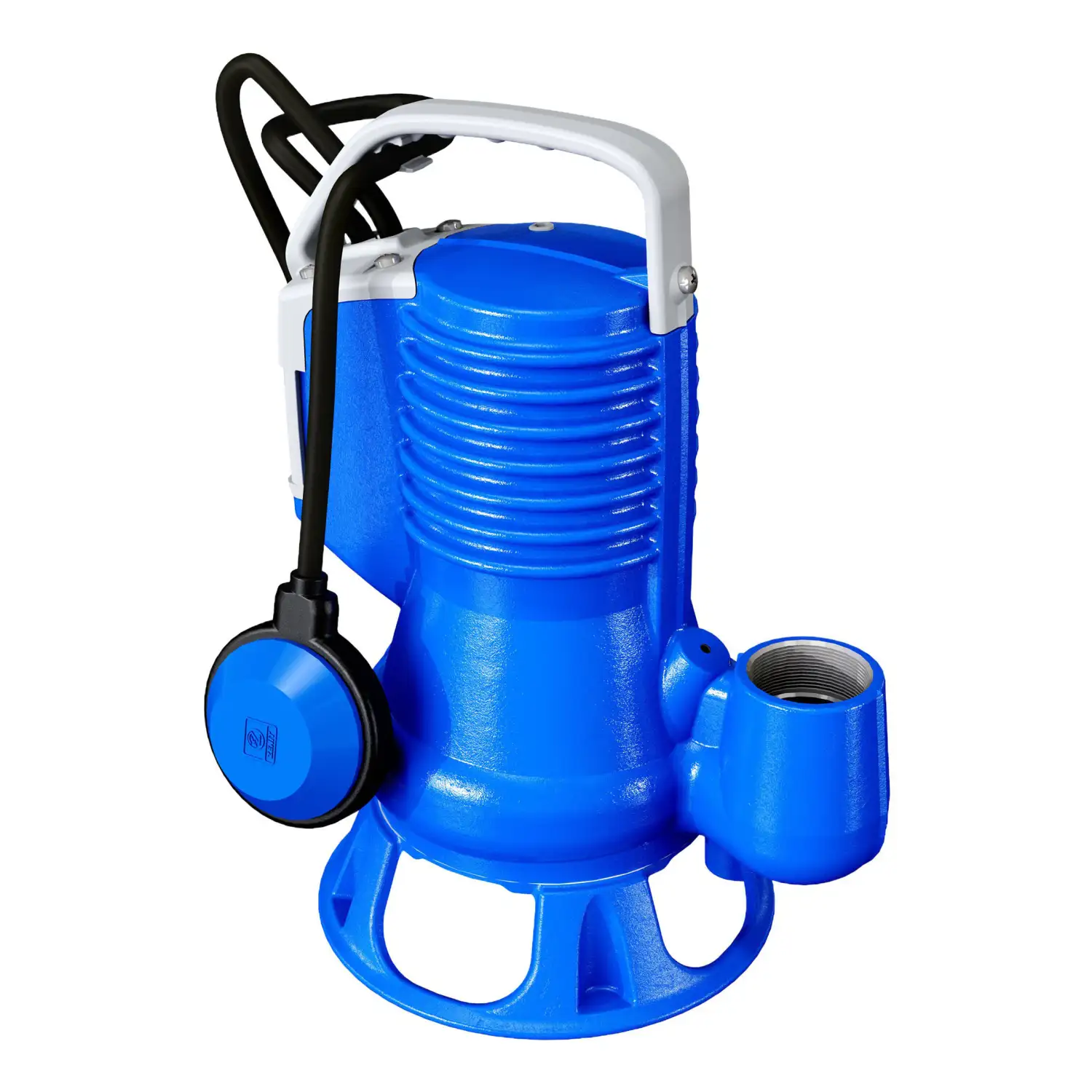

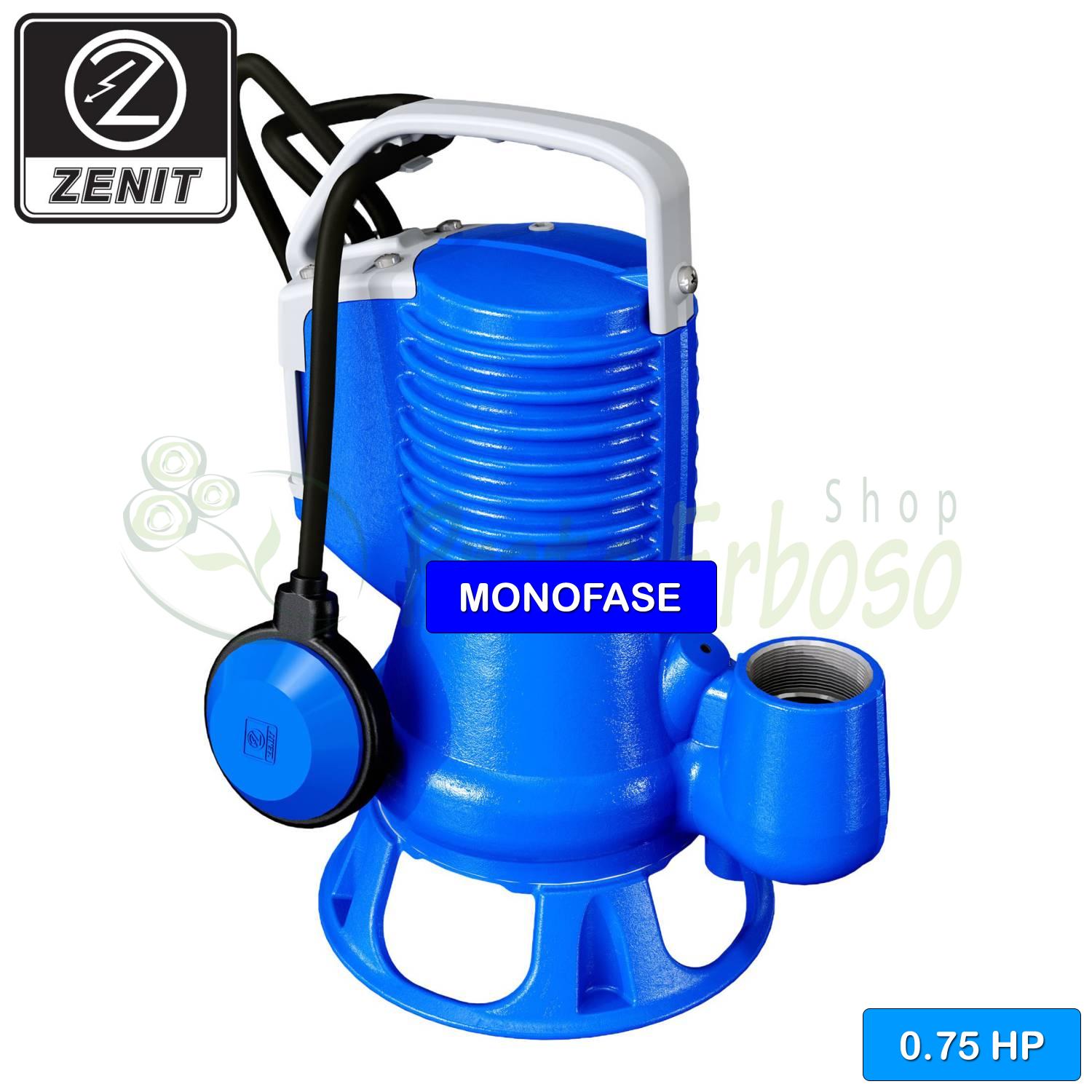

75/2/G40V A1BM5NCQTCG - 0.75 HP single-phase VORTEX electric pump for waste water
Flow rate up to 360 l/min (21.6 m³/h). Head up to 10.2 m. 0.55 kW (0.75 HP) motor. With float switch.
The 75/2/G40V A1BM5NCQTCG submersible electric pump from the DG bluePRO series by Zenit is reliable, robust and guarantees excellent performance.
Zenit has equipped this electric pump with a vortex impeller, making it suitable for filtering solids. This makes it ideal for use with contaminated biological fluids, sewage, rainwater, and seepage water. Recommended for domestic and professional use.
It has a maximum flow rate of 360 litres per minute and a maximum head of 10.2 metres.
The pump's construction is solid. Materials such as cast iron and steel make it resistant to even the most extreme working conditions.
It can be installed up to 20 meters below water level.
The cable supplied with the 75/2/G40V A1BM5NCQTCG is 5 meters.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- Max. flow rate (l./min.)
- Min. head (m.)
- Max. head (m.)
- Cable length (m.)
- Jobs
- slightly dirty waters, water supply, drainage
- Max. liquid temperature (°C)
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
- Warranty (years)
- 2
Compare with Similar Products
75/2/G40V A1BM5NCQTCG - 0.75 HP single-phase VORTEX electric pump for waste waterThis product Flow rate up to 360 l/min (21.6 m³/h). Head up to 10.2 m. 0.55 kW (0.75 HP) motor. With float switch. |
50/2/G40V A1BM5NCQTCG - 0.50 HP single-phase VORTEX electric pump for waste waterFlow rate up to 300 l/min (18.0 m³/h). Head up to 7 m. 0.37 kW (0.50 HP) motor. With float switch. |
100/2/G40V A1BM5NCQTCG - 1 HP single-phase VORTEX electric pump for waste waterFlow rate up to 420 l/min (25.2 m³/h). Head up to 11.4 m. 0.75 kW (1 HP) motor. With float switch. |
150/2/G50V A1CM5NCQTCG - 1.5 HP single-phase VORTEX electric pump for waste waterFlow rate up to 600 l/min (36.0 m³/h). Head up to 12.3 m. 1.1 kW (1.5 HP) motor. With float switch. |
|
|---|---|---|---|---|
| Price |
Price
€501.42
|
Price
€472.14
-5%
€448.53
|
Price
€627.08
-5%
€595.73
|
Price
€729.56
-5%
€693.08
|
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.55 | Power (Kw) 0.37 | Power (Kw) 0.75 | Power (Kw) 1.1 |
| Power (HP) | Power (HP) 0.75 | Power (HP) 0.50 | Power (HP) 1 | Power (HP) 1.5 |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 2" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron |
| Crankshaft | Crankshaft AISI 420 stainless steel | Crankshaft AISI 420 stainless steel | Crankshaft AISI 420 stainless steel | Crankshaft AISI 420 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- |
| Min. head (m.) | Min. head (m.) -- | Min. head (m.) -- | Min. head (m.) -- | Min. head (m.) -- |
| Max. head (m.) | Max. head (m.) -- | Max. head (m.) -- | Max. head (m.) -- | Max. head (m.) -- |
| Cable length (m.) | Cable length (m.) -- | Cable length (m.) -- | Cable length (m.) -- | Cable length (m.) -- |
| Jobs | Jobs slightly dirty waters, water supply, drainage | Jobs slightly dirty waters, water supply, drainage | Jobs slightly dirty waters, water supply, drainage | Jobs slightly dirty waters, water supply, drainage |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- |
| Height (cm) | Height (cm) -- | Height (cm) -- | Height (cm) -- | Height (cm) -- |
| Width (cm) | Width (cm) -- | Width (cm) -- | Width (cm) -- | Width (cm) -- |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
-
