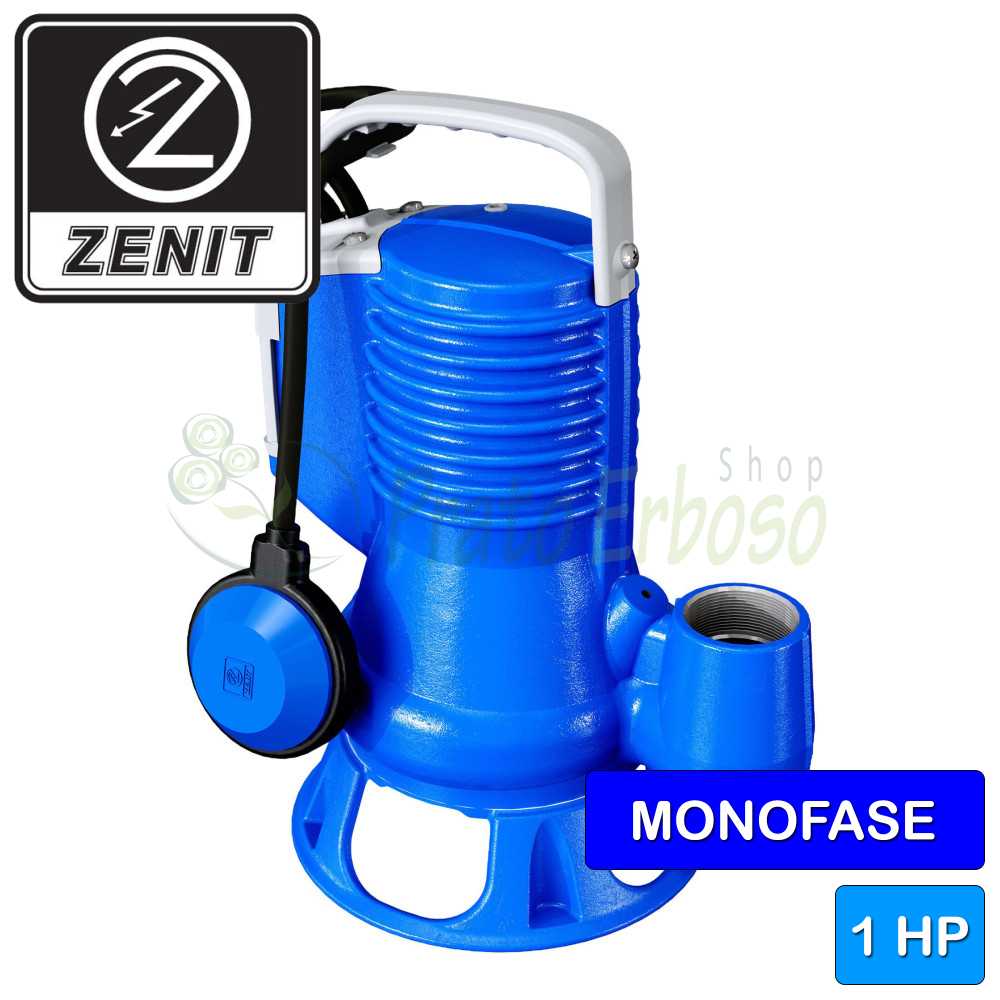

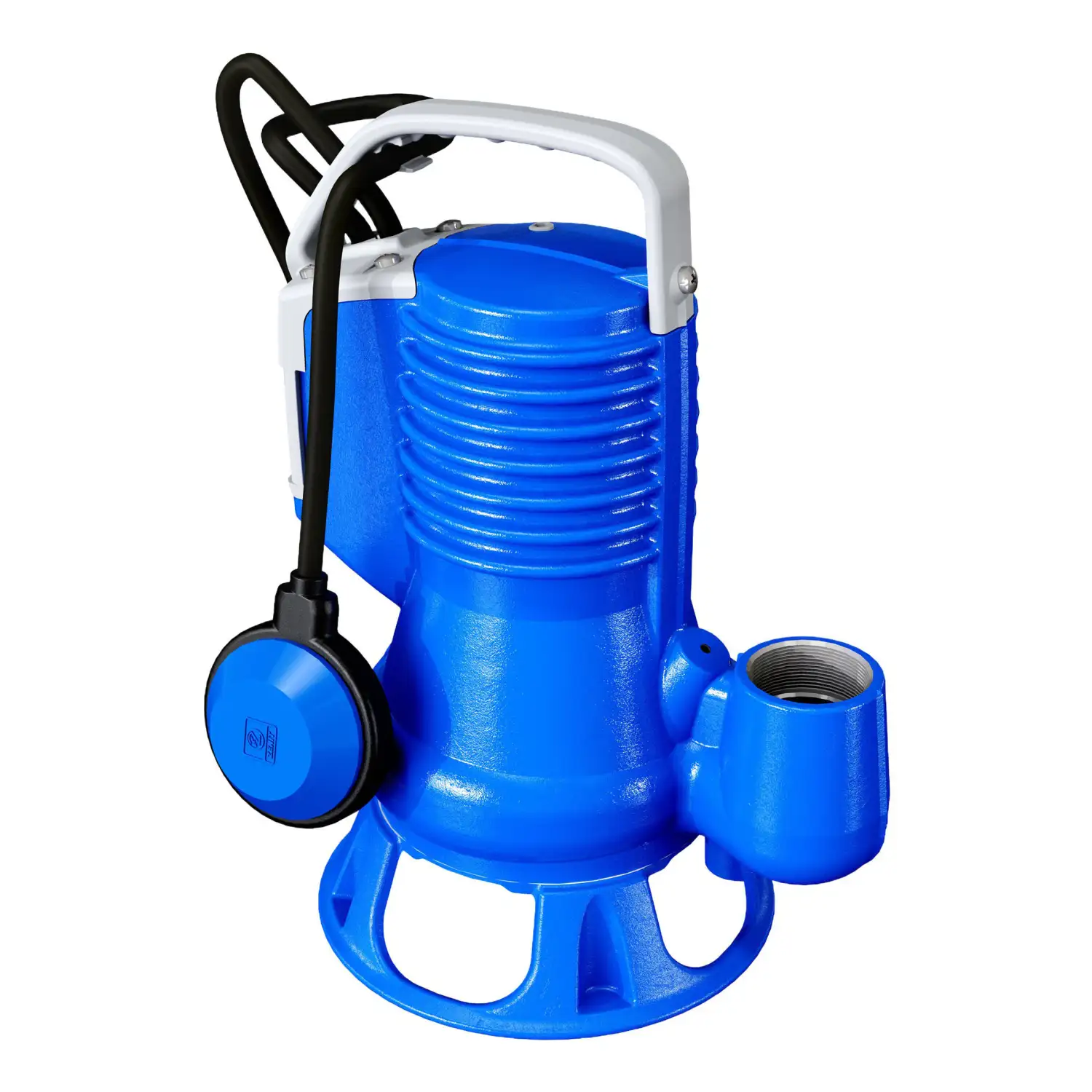

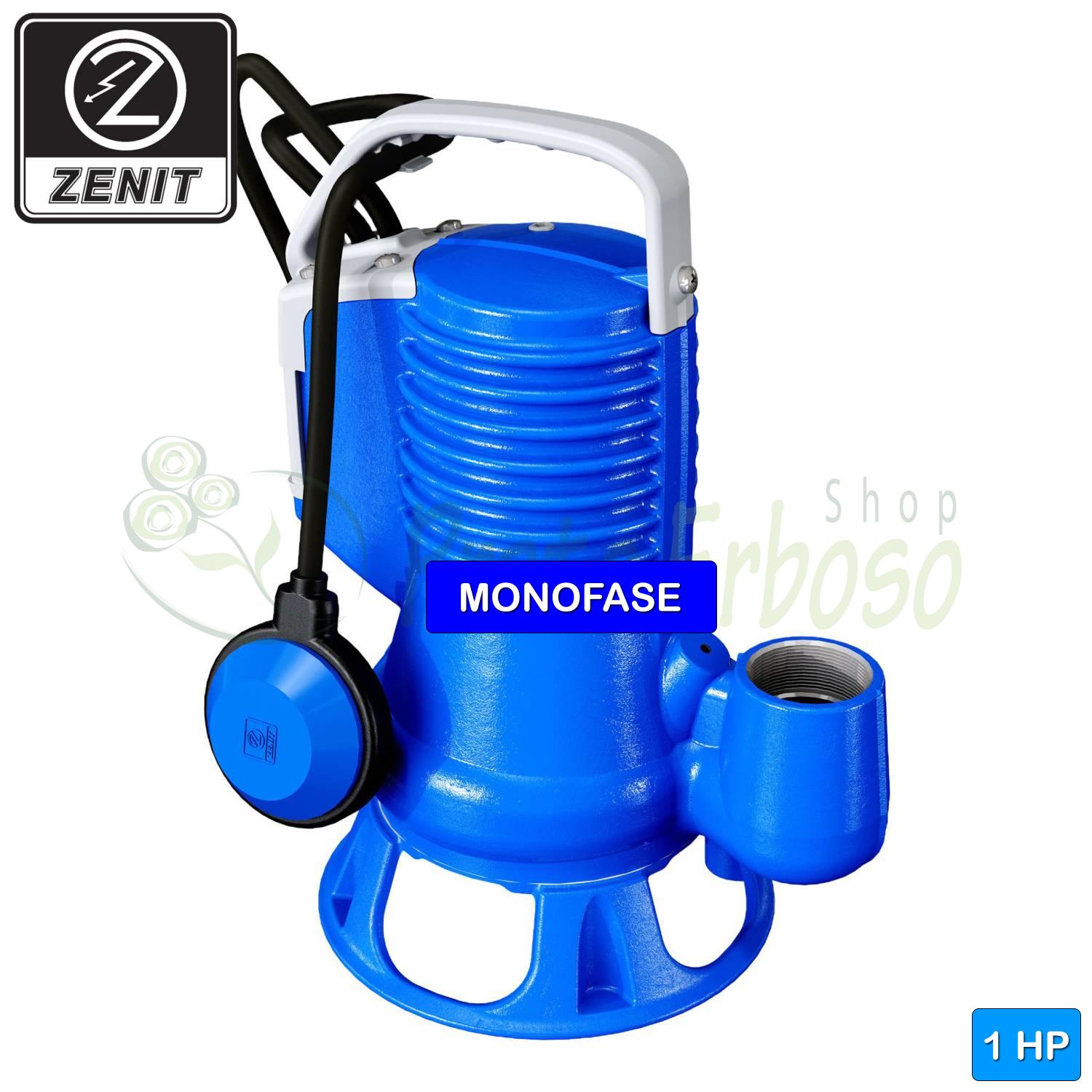

100/2/G40V A1BM5NCQTCG - 1 HP single-phase VORTEX electric pump for waste water
Flow rate up to 420 l/min (25.2 m³/h). Head up to 11.4 m. 0.75 kW (1 HP) motor. With float switch.
The Zenit DG bluePRO series 100/2/G40V A1BM5NCQTCG submersible electric pump is equipped with a vortex impeller. Its special geometry allows the passage of solids.
Useful for heavy-duty use in the presence of contaminated biological liquids, sewage, rainwater and seepage water.
Suitable for use in the domestic and professional sectors.
The Zenit electric pump has a maximum flow rate of 420 litres per minute and a maximum head of 11.4 metres.
Equipped with an induction electric motor with dry winding and thermal protection.
The 100/2/G40V A1BM5NCQTCG can be installed up to 20 meters below water level.
The use of cast iron and the double mechanical seal make the pump extremely resistant and suitable even for the most extreme uses.
The cable supplied with the 100/2/G40V A1BM5NCQTCG is 5 metres long.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- Max. flow rate (l./min.)
- Min. head (m.)
- Max. head (m.)
- Cable length (m.)
- Jobs
- slightly dirty waters, water supply, drainage
- Max. liquid temperature (°C)
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
- Warranty (years)
- 2
Compare with Similar Products
100/2/G40V A1BM5NCQTCG - 1 HP single-phase VORTEX electric pump for waste waterThis product Flow rate up to 420 l/min (25.2 m³/h). Head up to 11.4 m. 0.75 kW (1 HP) motor. With float switch. |
75/2/G40V A1BM5NCQTCG - 0.75 HP single-phase VORTEX electric pump for waste waterFlow rate up to 360 l/min (21.6 m³/h). Head up to 10.2 m. 0.55 kW (0.75 HP) motor. With float switch. |
150/2/G50V A1CM5NCQTCG - 1.5 HP single-phase VORTEX electric pump for waste waterFlow rate up to 600 l/min (36.0 m³/h). Head up to 12.3 m. 1.1 kW (1.5 HP) motor. With float switch. |
200/2/G50V A1CM5NCQTCG - 2 HP single-phase VORTEX electric pump for waste waterFlow rate up to 720 l/min (43.2 m³/h). Head up to 15.3 m. 1.5 kW (2 HP) motor. With float switch. |
|
|---|---|---|---|---|
| Price |
Price
€627.08
-5%
€595.73
|
Price
€501.42
|
Price
€729.56
-5%
€693.08
|
Price
€858.88
-5%
€815.94
|
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.55 | Power (Kw) 1.1 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 1 | Power (HP) 0.75 | Power (HP) 1.5 | Power (HP) 2 |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 2" | Delivery mouth 2" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron |
| Crankshaft | Crankshaft AISI 420 stainless steel | Crankshaft AISI 420 stainless steel | Crankshaft AISI 420 stainless steel | Crankshaft AISI 420 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- | Minimum flow rate (l./min.) -- |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) -- |
| Min. head (m.) | Min. head (m.) -- | Min. head (m.) -- | Min. head (m.) -- | Min. head (m.) -- |
| Max. head (m.) | Max. head (m.) -- | Max. head (m.) -- | Max. head (m.) -- | Max. head (m.) -- |
| Cable length (m.) | Cable length (m.) -- | Cable length (m.) -- | Cable length (m.) -- | Cable length (m.) -- |
| Jobs | Jobs slightly dirty waters, water supply, drainage | Jobs slightly dirty waters, water supply, drainage | Jobs slightly dirty waters, water supply, drainage | Jobs slightly dirty waters, water supply, drainage |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- |
| Height (cm) | Height (cm) -- | Height (cm) -- | Height (cm) -- | Height (cm) -- |
| Width (cm) | Width (cm) -- | Width (cm) -- | Width (cm) -- | Width (cm) -- |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
