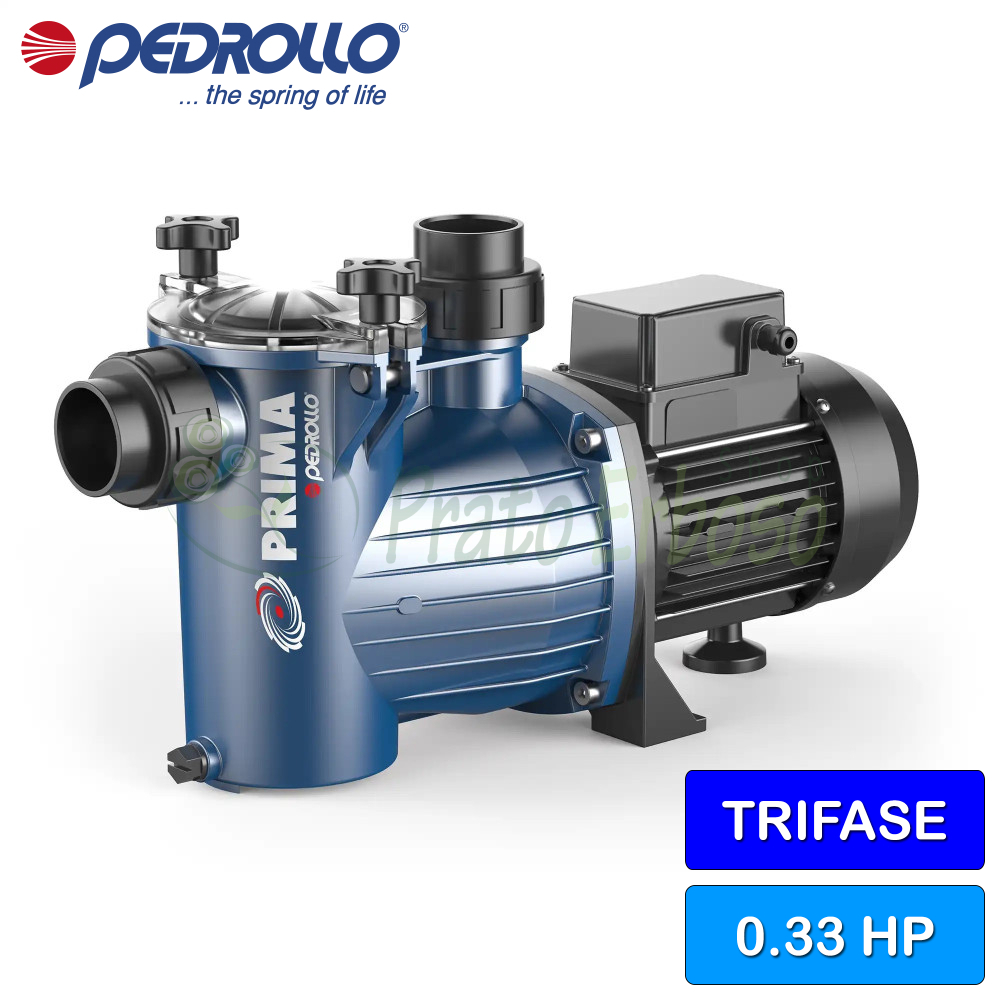

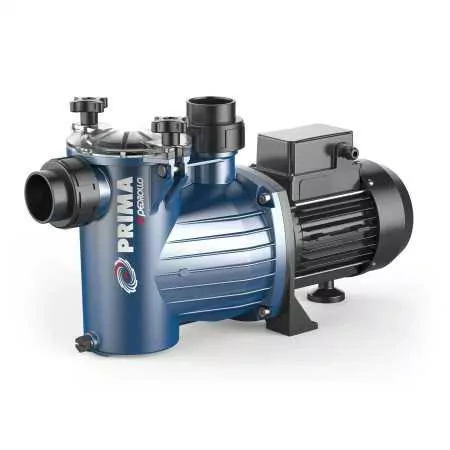

PRIMA 33 - Three-phase 0.33 HP electric pool pump
Flow rate up to 190 l/min (11.4 m³/h). Head up to 10.3 m. 0.25 Kw (0.33 HP) motor.
The PRIMA 33 self-priming electric pump by Pedrollo is recommended for water circulation in residential swimming pools up to 70 cubic metres in size.
The pump has the advantage of being resistant to heat and chemical corrosion, thanks to the fact that the motor casing is painted using the cataphoresis technique.
It has good robustness and is also particularly quiet.
Equipped with a pre-filter complete with transparent lid to facilitate visual inspection and an extra large filter basket that allows for a reduction in the frequency of cleaning operations.
The PRIMA 33 must be powered by a three-phase voltage, has a horsepower of 0.33 HP and the temperature of the liquid to be pumped reaches up to +40 degrees centigrade.
The flow rate ranges from 20 to 190 litres per minute and the head from 4 to 10.3 metres.
The PRIMA 33 manometric suction lift is up to 9 meters. The pump tolerates water with pH 6.5 – 8.4.
Certified IP55, the pump is safe from dust and water ingress.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.25
- Power (HP)
- 0.33
- Absorption at 230V (A)
- 1.9
- Current consumption at 400V (A)
- 1.1
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
- Pump body
- Polypropylene
- Impeller
- Noryl
- Number of impellers
- 1
- Crankshaft
- AISI 316 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 190
- Min. head (m.)
- 4
- Max. head (m.)
- 10.3
- Jobs
- circulation in the pool
- Max. liquid temperature (°C)
- +40°C
- Motor voltage
- 230 V, 400V
- Height (cm)
- 27.5
- Width (cm)
- 19.7
- Depth (cm)
- 47.6
- Weight (Kg)
- 8.8
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
