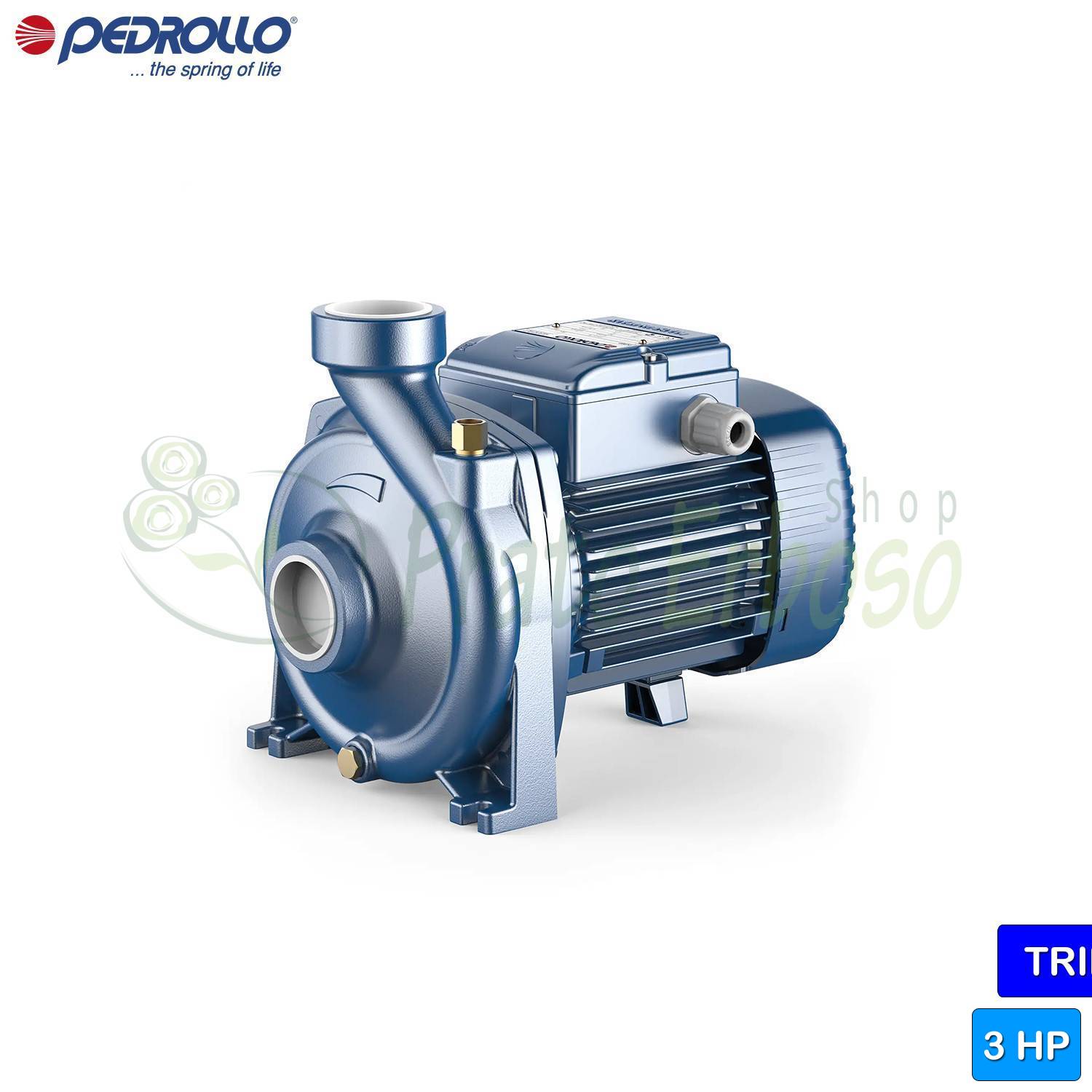

HF 5ARM - 3 HP three-phase centrifugal electric pump
Flow rate up to 700 l/min (42 m³/h). Head up to 23.5 m. 2.2 Kw (3 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 27 October - Wednesday 28 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 27 October - Wednesday 28 October |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Tuesday 27 October - Wednesday 28 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 30 October - Monday 2 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Monday 26 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 27 October - Wednesday 28 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 27 October - Wednesday 28 October
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 27 October - Wednesday 28 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 30 October - Monday 2 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 26 October
The Pedrollo HF 5ARM submersible pump is recommended for use in the agricultural and industrial sectors.
It has a flow rate that varies from 100 to 700 litres per minute with a head of 23 to 10 metres.
It must be powered by a three-phase voltage, has a horsepower of 3 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.
The high efficiency and the possibility of continuous use make the HF 5ARM advantageous for flow and sprinkler irrigation, for drawing water from lakes, rivers, wells or for the most varied industrial uses characterised by the need to achieve considerable flow rates in relation to medium-low heads.
- Jobs
- water supply, irrigation, cooling systems, tank transfer
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 8
- Current consumption at 400V (A)
- 4.6
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 700
- Min. head (m.)
- 10
- Max. head (m.)
- 23
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V, 400 V
- Degree of protection
- IP 44
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Height (cm)
- 26
- Width (cm)
- 20.8
- Depth (cm)
- 40.6
- Weight (Kg)
- 24.6
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, irrigation, cooling systems, tank transfer
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 8
- Current consumption at 400V (A)
- 4.6
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 700
- Min. head (m.)
- 10
- Max. head (m.)
- 23
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +90°C
Power supply and electrical parameters
- Motor voltage
- 230 V, 400 V
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 2"
- Delivery mouth
- 2"
Dimensions and weight
- Height (cm)
- 26
- Width (cm)
- 20.8
- Depth (cm)
- 40.6
- Weight (Kg)
- 24.6
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
