STEADYPRES 4.0 - Universal inverter
For pumps up to 1.5 HP. Single-phase/single-phase. Single-phase/three-phase.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October

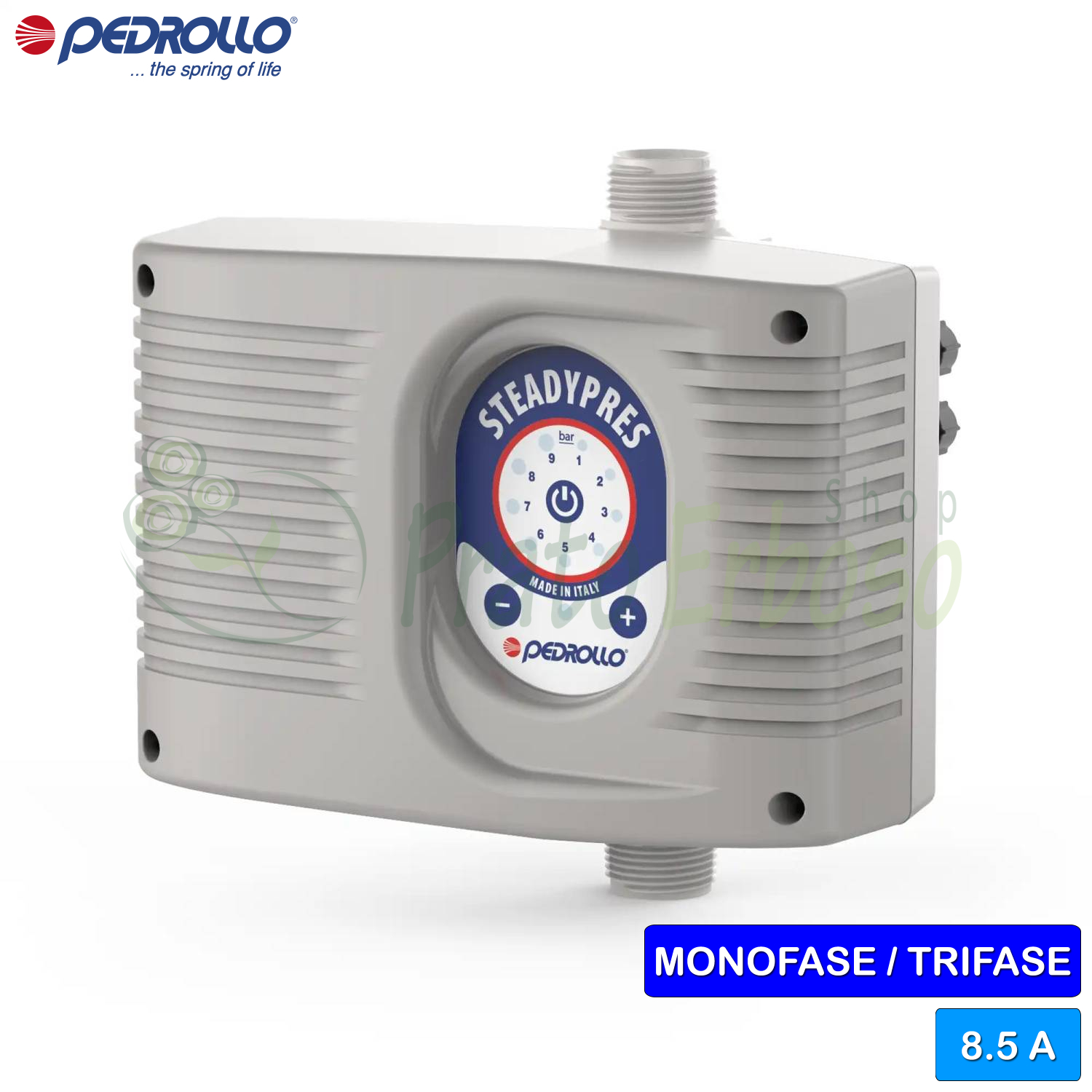

The STEADYPRES 4.0 by Pedrollo is an inverter for single-phase and three-phase 230 Volt surface and submersible electric pumps.
This inverter works with both single-phase power supply and single-phase motor output and with single-phase power supply and three-phase motor output but at 230 volts.
It is applied to the delivery of the electric pump and, by modulating the value and frequency of the output voltage, allows the rotation speed of the motor to be varied according to the quantity of water required, thus ensuring constant pressure in the system.
The STEADYPRESS 4.0 is suitable for domestic water supply and irrigation; it adapts to any type of pressurization system, even existing ones, ensuring maximum comfort, increasing the system's average lifespan, and allowing for significant energy savings.
It helps ensure the durability of the system, as it protects against dry running, overcurrent, undervoltage, overtemperature, short circuit or current leakage.
The Pedrollo inverter is very simple and intuitive to use thanks to a well-organized control panel and LED indicators that show the operating status of the instrument.
- Power (HP)
- 1.5
- Max. working pressure (bar)
- 10
- Max. liquid temperature (°C)
- 40
- Output Voltage (Volts)
- 1 x 230, 3 x 230
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- single phase, three-phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- 8.5, 7
- Motor phase frequency (Hz)
- 50, 60
- Degree of protection
- IP 65
- Overcurrent protection
- Yes
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Height (cm)
- 21
- Width (cm)
- 23
- Depth (cm)
- 15.7
- Weight (Kg)
- 2.4
- Warranty (years)
- 2
Engine and mechanical performance
- Power (HP)
- 1.5
Hydraulic performance and filtration
- Max. working pressure (bar)
- 10
Liquids and pumping conditions
- Max. liquid temperature (°C)
- 40
Power supply and electrical parameters
- Output Voltage (Volts)
- 1 x 230, 3 x 230
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- single phase, three-phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- 8.5, 7
- Motor phase frequency (Hz)
- 50, 60
Safety and protection
- Degree of protection
- IP 65
- Overcurrent protection
- Yes
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
Installation and connections
- Suction mouth
- 1"
- Delivery mouth
- 1"
Dimensions and weight
- Height (cm)
- 21
- Width (cm)
- 23
- Depth (cm)
- 15.7
- Weight (Kg)
- 2.4
Packaging, maintenance, and warranty
- Warranty (years)
- 2
