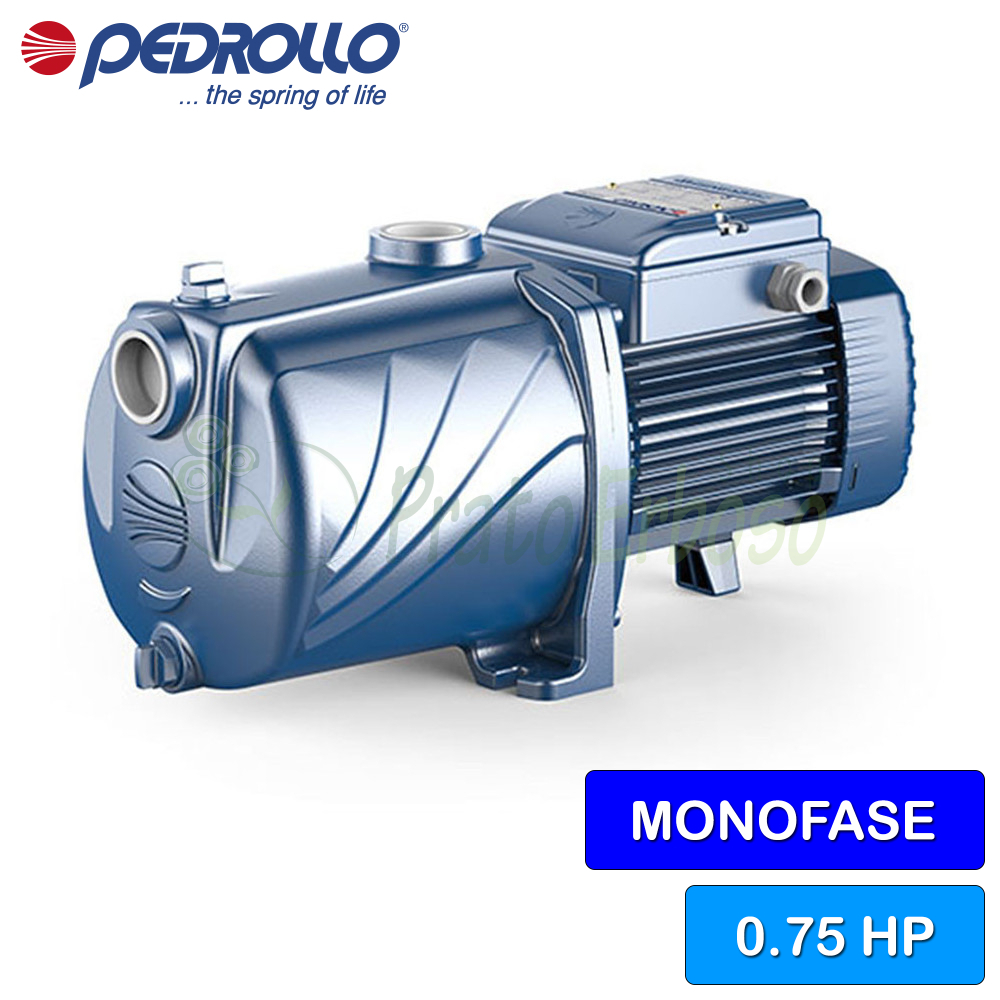

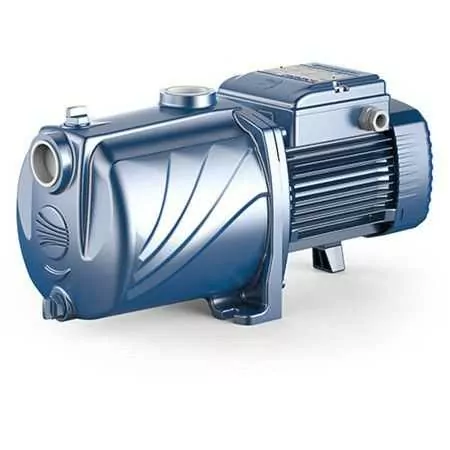

3CPm 100 - 0.75 HP single-phase multi-impeller electric pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 36 m. 0.60 Kw (0.75 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 5 February - Friday 6 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 5 February - Friday 6 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Thursday 5 February - Friday 6 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 5 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Thursday 5 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 5 February - Friday 6 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 5 February - Friday 6 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 5 February - Friday 6 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 5 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Thursday 5 February
The 3CPm 100 centrifugal electric pump from the 2-4CP series by Pedrollo guarantees excellent performance and reliability.
Its silence makes it perfect for use in the domestic sector.
Suitable for carrying out water distribution activities in conjunction with small or medium pressure tanks and for the irrigation of vegetable gardens or gardens.
The noryl impeller distinguishes it from the 2-4CP-I series.
The 3CPm 100 must be installed indoors or in any case protected from the elements to prevent it from being damaged by atmospheric agents.
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 4.1
- Capacitor
- 14 µF 450 VL
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 3
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 5
- Max. head (m.)
- 38
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 17.2
- Width (cm)
- 15.8
- Depth (cm)
- 30.7
- Weight (Kg)
- 10.4
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6202 ZZ - C3 |
| Opposite side motor bearing | 6201 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-13 |
| LP diameter | 13 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Shim Ring | POM acetal resin |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
 3CPm 100 - 0.75 HP single-phase multi-impeller electric pumpThis product Flow rate up to 120 l/min (7.2 m³/h). Head up to 36 m. 0.60 Kw (0.75 HP) motor. |  4CPm 100 - 1 HP single-phase multi-impeller electric pumpFlow rate up to 130 l/min (7.8 m³/h). Head up to 46 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|
| Price | Price €307.44 -42% €178.32 | Price €351.36 -42% €203.79 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (HP) | Power (HP) 0.75 | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 4.1 | Absorption at 230V (A) 6 |
| Capacitor | Capacitor 14 µF 450 VL | Capacitor 20 µF 450 VL |
| Suction mouth | Suction mouth 1" | Suction mouth 1" |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 3 | Number of impellers 4 |
| Crankshaft | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 130 |
| Min. head (m.) | Min. head (m.) 5 | Min. head (m.) 5 |
| Max. head (m.) | Max. head (m.) 38 | Max. head (m.) 50 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 17.2 | Height (cm) 19.1 |
| Width (cm) | Width (cm) 15.8 | Width (cm) 15.8 |
| Depth (cm) | Depth (cm) 30.7 | Depth (cm) 35.6 |
| Weight (Kg) | Weight (Kg) 10.4 | Weight (Kg) 13.4 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
