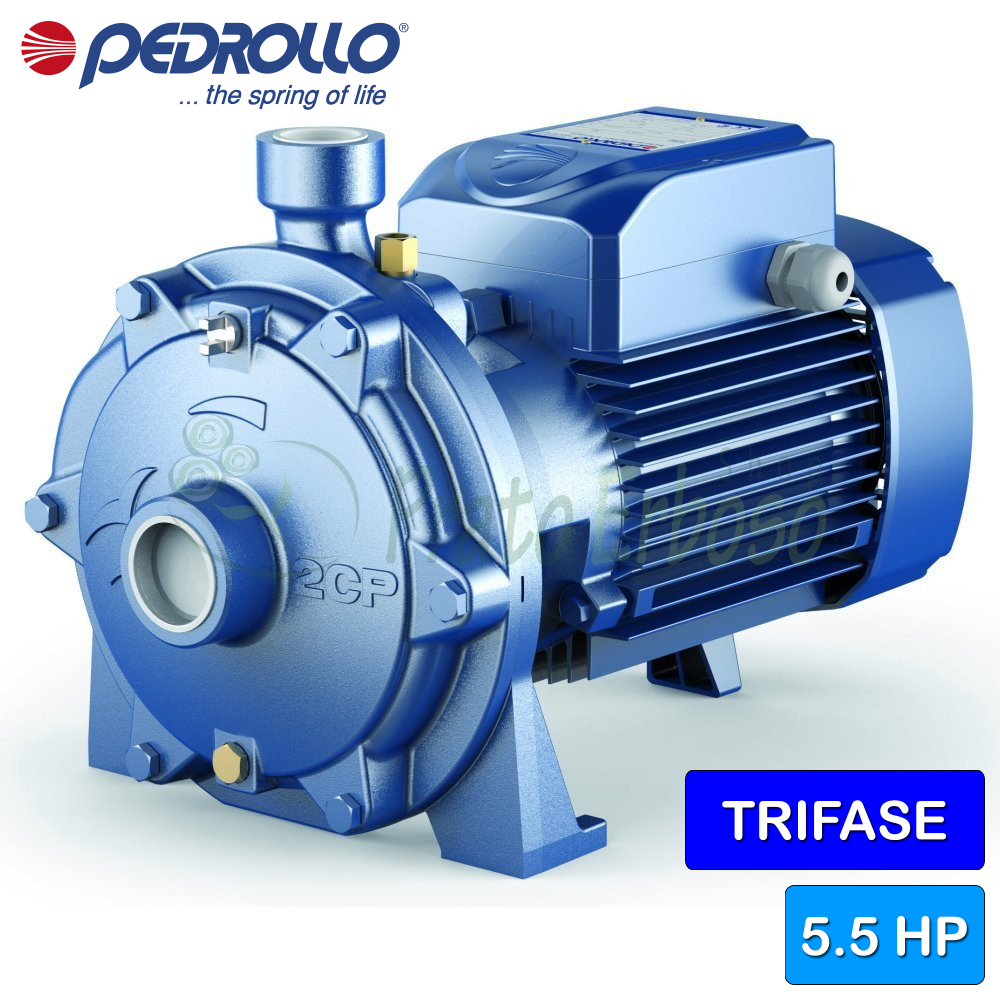

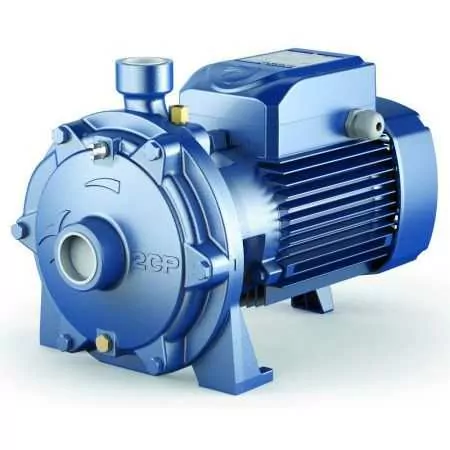

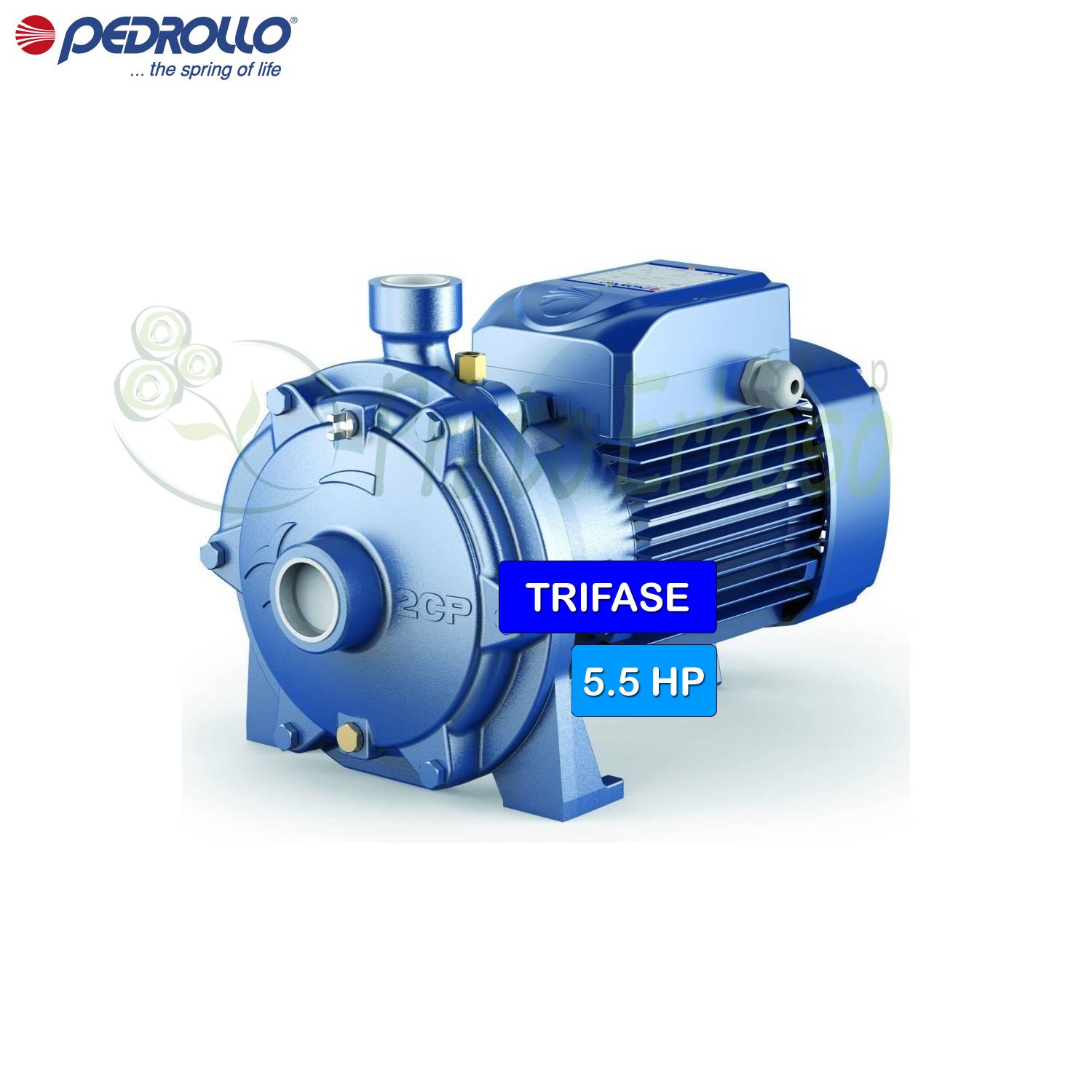

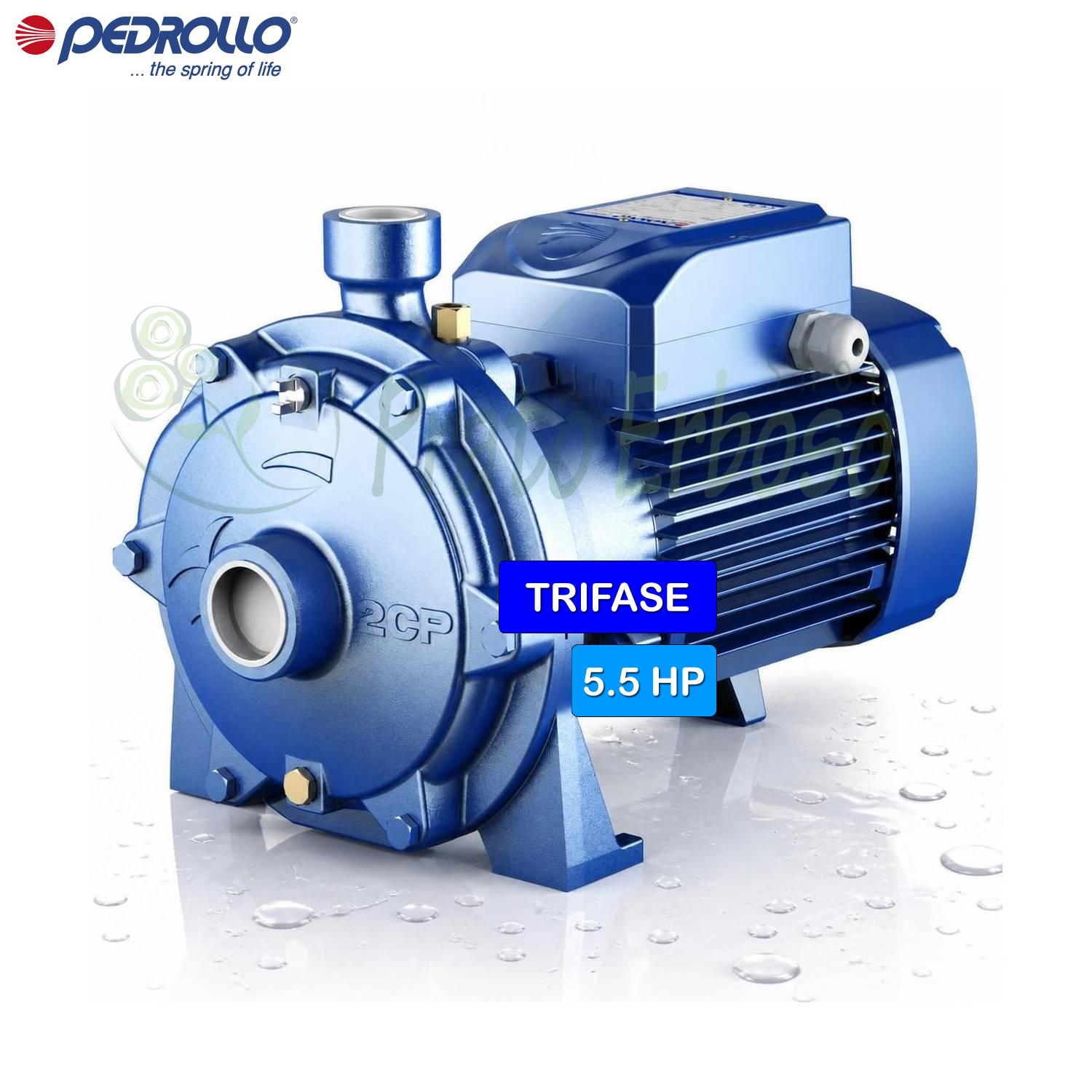

2CP 32/200B - 5.5 HP three-phase twin-impeller centrifugal pump
Flow rate up to 250 l/min (15 m³/h). Head up to 85 m. 4 kW (5.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The 2CP 32/200B twin-impeller centrifugal electric pump from the CP series by Pedrollo stands out for its performance and reliability.
Ideal for domestic, civil, and industrial installations. It is particularly suitable for water distribution in conjunction with pressure tanks, for increasing mains pressure, and for fire-fighting units.
It can pump clean water and liquids that are chemically non-aggressive for the components.
Pedrollo used cast iron, brass, and stainless steel to create the 2CPm 25/14A. This combination of elements creates a robust and long-lasting product.
The flow rate ranges from 40 to 250 litres and the head from 49 to 85 metres.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 4
- Power (HP)
- 5.5
- Absorption at 230V (A)
- 10.5
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/4
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 2
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 40
- Max. flow rate (l./min.)
- 250
- Min. head (m.)
- 49
- Max. head (m.)
- 85
- Jobs
- water supply, pressurization systems, fire prevention systems
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 30.4
- Width (cm)
- 26.6
- Depth (cm)
- 46.4
- Weight (Kg)
- 43
- Warranty (years)
- 2
Models and performances 2CP 32/200
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 2CP 32/200
Bearings
| Pump side motor bearing | 6206 ZZ- C3 |
| Opposite side motor bearing | 6206 ZZ- C3 |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-20 |
| LP diameter | 20 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Materials
| 1.1 - Aspiring Body | Cast iron GJL 200 EN 1561 |
| 1.2 - Pressing Body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46122 |
