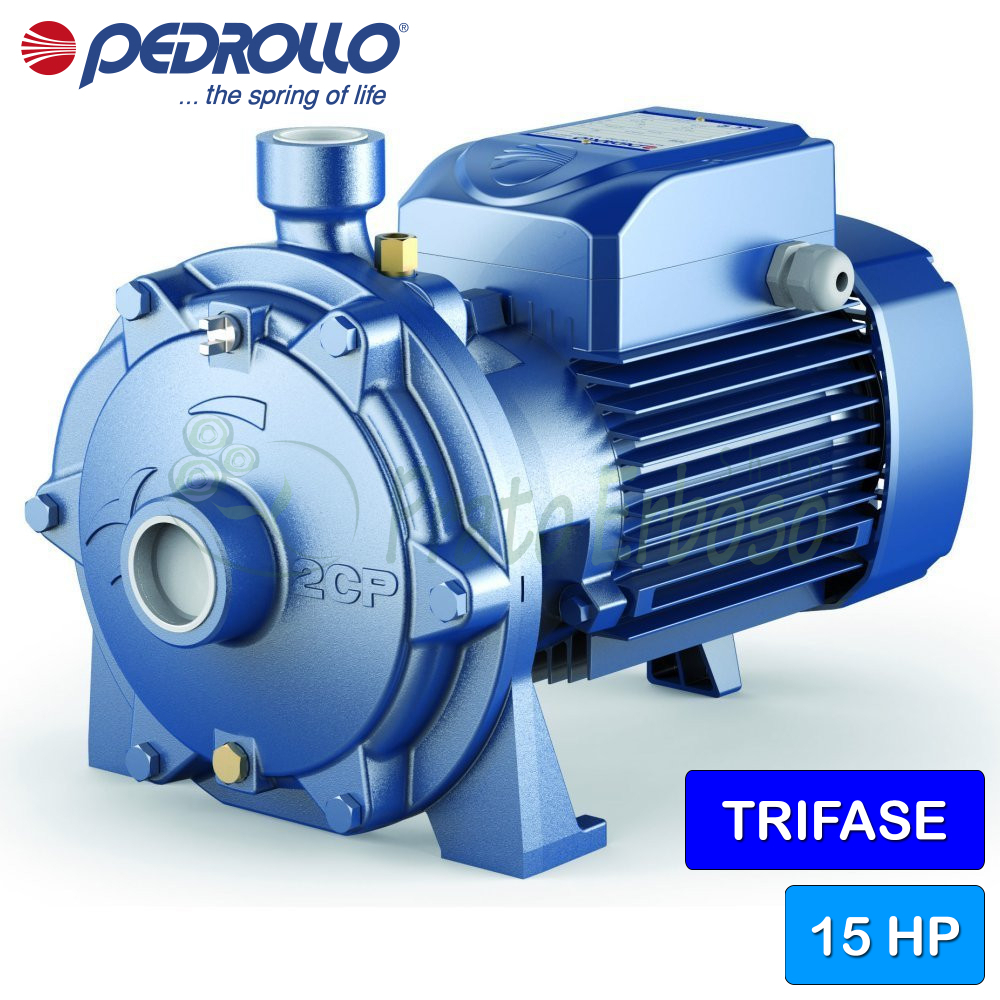

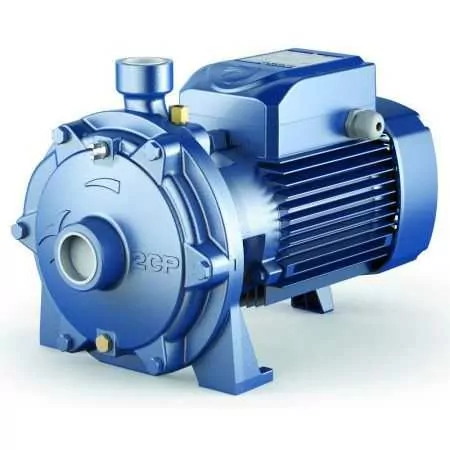

2CP 40/200A - 15 HP three-phase twin-impeller centrifugal pump
Flow rate up to 450 l/min (27 m³/h). Head up to 106 m. 11 kW (15 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 5 February - Friday 6 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 5 February - Friday 6 February |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 6 February - Monday 9 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 5 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Thursday 5 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 5 February - Friday 6 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 5 February - Friday 6 February
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 6 February - Monday 9 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 5 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Thursday 5 February
The 2CP 40/200A twin-impeller centrifugal electric pump from the CP series by Pedrollo is recommended for use in the domestic, civil and industrial sectors.
It can pump clean water and liquids that are chemically non-aggressive for the components.
The CP 40/200A guarantees high performance and adaptability to the most varied uses.
Suitable for various fields and is particularly useful for water distribution in conjunction with pressure tanks, for increasing network pressure and for fire-fighting units.
The flow rate ranges from 100 to 450 litres and the head from 71 to 106 metres.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 11
- Power (HP)
- 15
- Current consumption at 400V (A)
- 20
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 2
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 450
- Min. head (m.)
- 71
- Max. head (m.)
- 106
- Jobs
- water supply, pressurization systems, fire prevention systems
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 35.5
- Width (cm)
- 29.8
- Depth (cm)
- 56.6
- Weight (Kg)
- 91
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6308 ZZ- C3 |
| Opposite side motor bearing | 6308 ZZ- C3 |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-32 FU |
| LP diameter | 32 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Materials
| 1.1 - Aspiring Body | Cast iron GJL 200 EN 1561 |
| 1.2 - Pressing Body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46138 |
