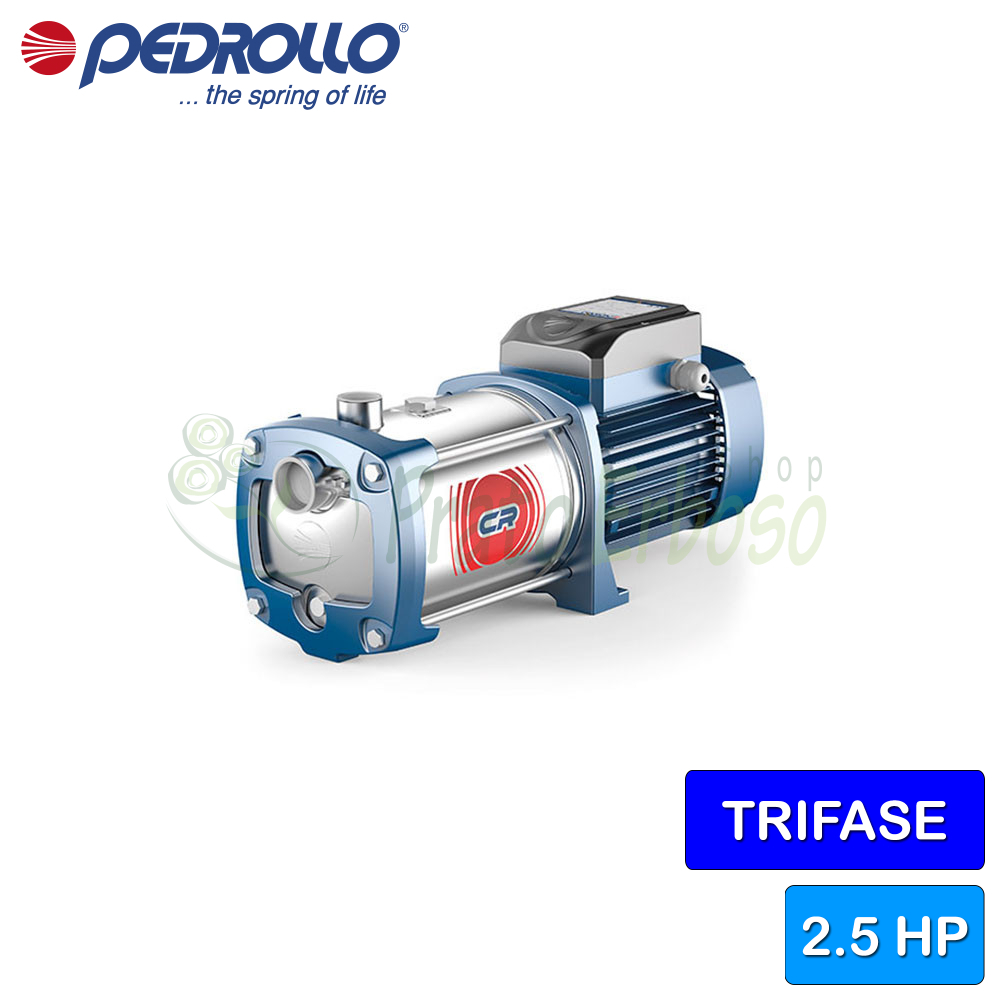

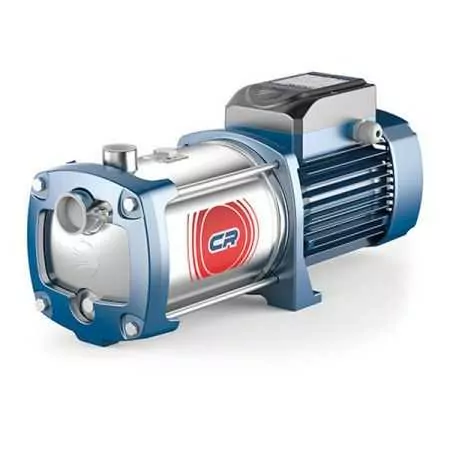

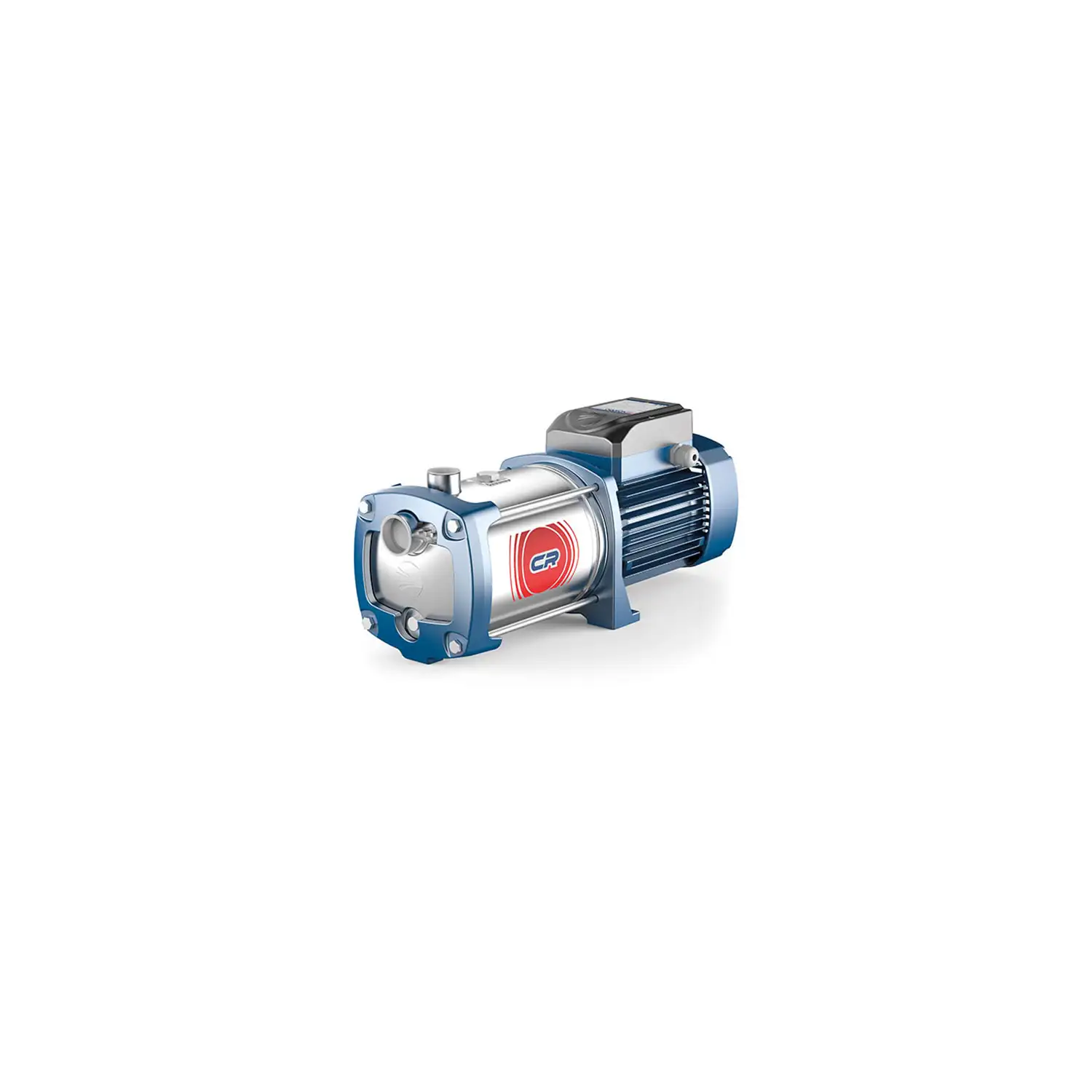

FCR 90/7 - 2.5 HP three-phase multi-impeller electric pump
With stainless steel impeller. Flow rate up to 90 l/min (5.4 m³/h). Head up to 111 m. 1.8 kW (2.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The FCR 90/7 centrifugal electric pump from Pedrollo 's FCR series stands out for its low energy consumption.
Made entirely of AISI 304 and 431 stainless steel for greater robustness and to ensure maximum hygiene.
The FCR 90/7 also stands out for its reliability and silence, making it suitable for the domestic and civil sector.
Recommended for activities such as water distribution in conjunction with small or medium pressure tanks and for irrigation of vegetable gardens or gardens.
Data sheet
- Motor connection
- THREE-PHASE
- Power (HP)
- 2.5
- Absorption at 230V (A)
- 8.3
- Current consumption at 400V (A)
- 4.8
- Capacitor
- 50 µF 450 VL
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 7
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 90
- Min. head (m.)
- 53
- Max. head (m.)
- 111
- Jobs
- irrigation
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 22.8
- Width (cm)
- 56.9
- Depth (cm)
- 18.5
- Weight (Kg)
- 26
- Warranty (years)
- 2
Construction data of the FCR-90-FCR-130-FCR 200
Bearings
| Pump side motor bearing | 6304 2RS-C3 |
| Opposite side motor bearing | 6204 ZZ-C3E |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump Body | EN 1.4301 stainless steel (AISI 304) |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | EN 1.4301 stainless steel (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | EN 1.4301 stainless steel (AISI 304) |
| 5.2 - Shim Ring | PTFE |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Models and performance FCR 90-130
