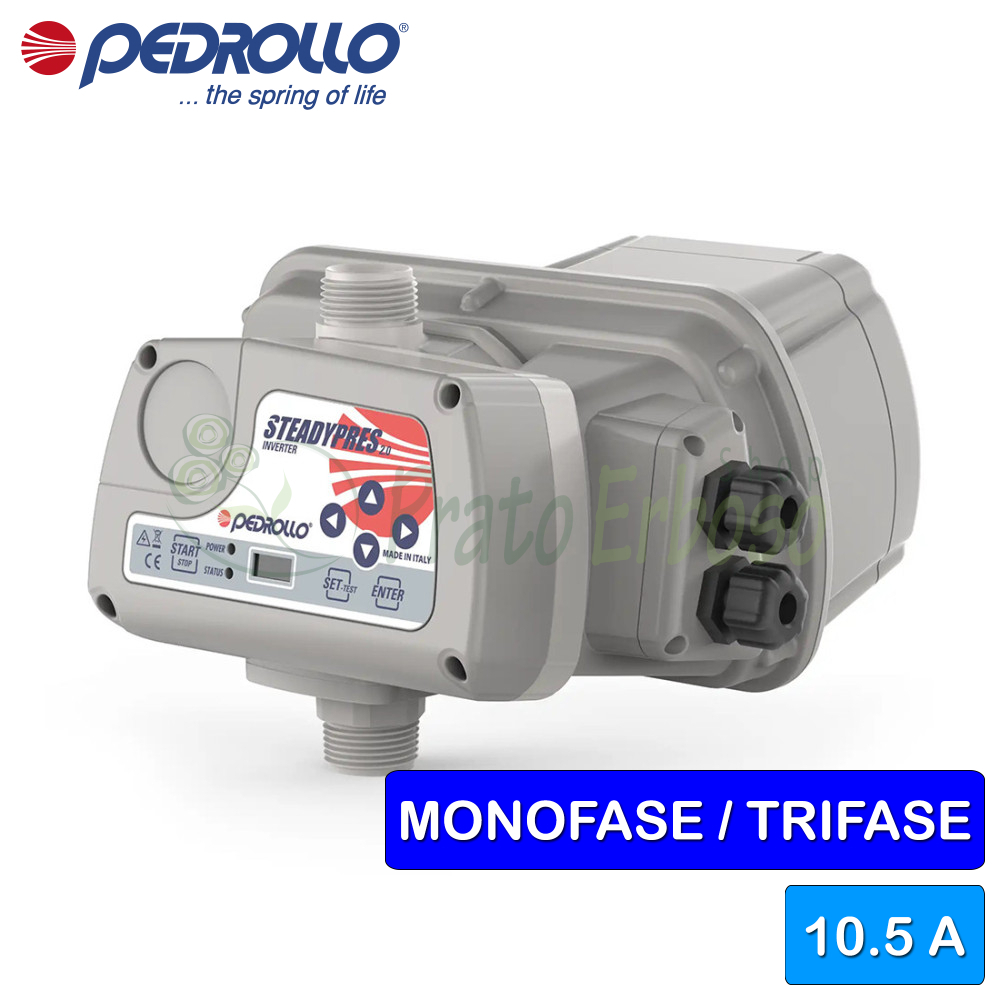

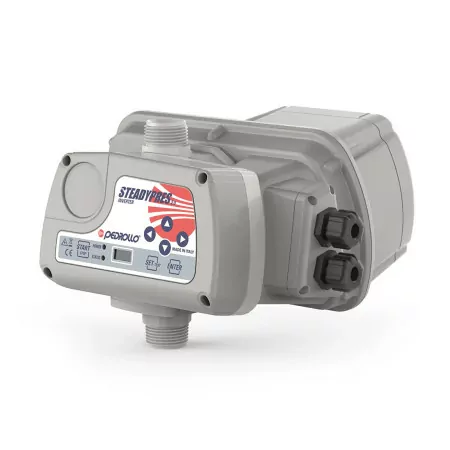

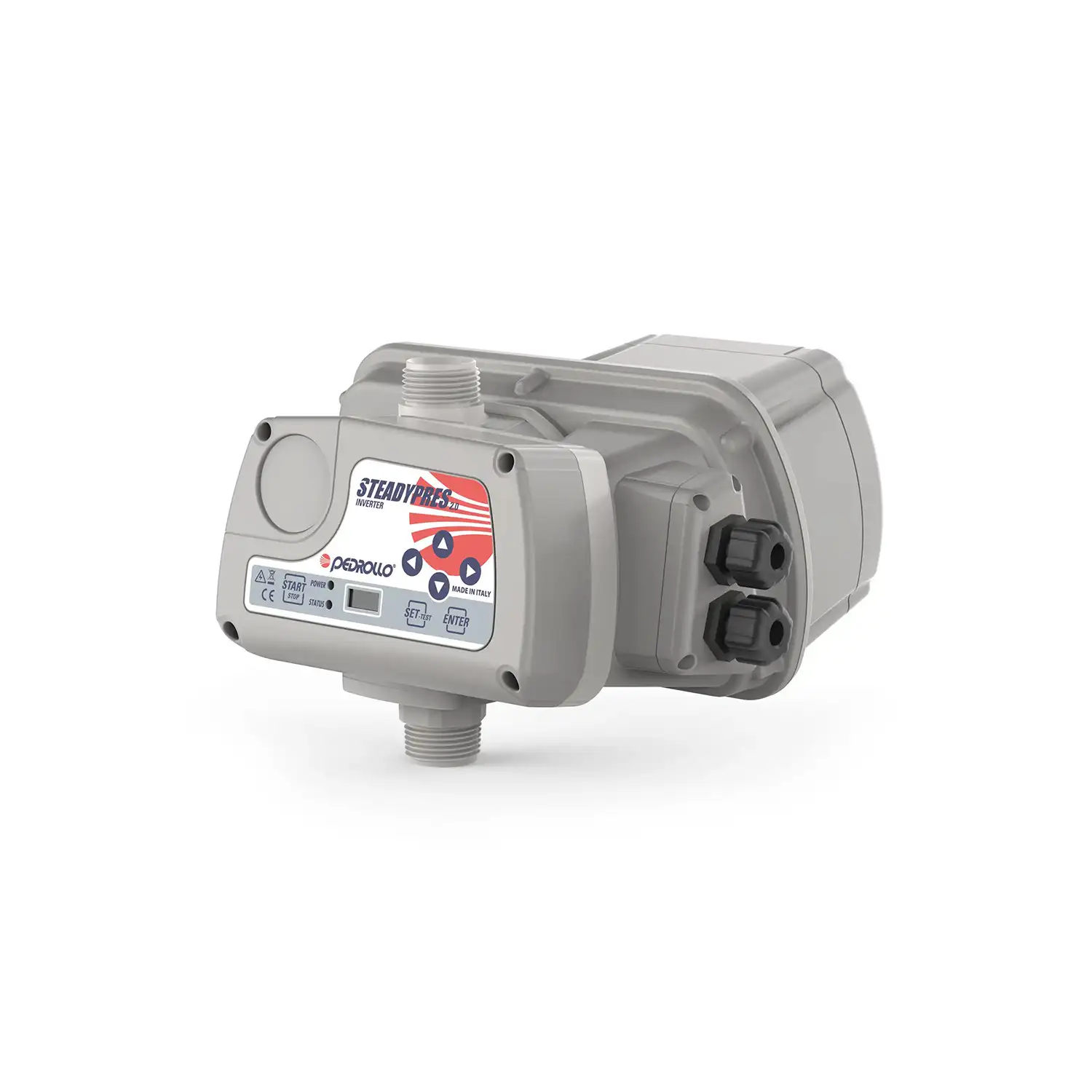

STEADYPRES MT 10 - 10.5 A single-phase/three-phase inverter
The STEADYPRES MT 10 inverter from Pedrollo is used for water supply in residential, commercial and irrigation sectors.
It is applied to the delivery of the electric pump and modulates the output voltage value, allowing the motor speed to be varied based on the quantity of water required.
Flexible in its use, it adapts to any type of pressurization system, even existing ones.
The STEADYPRES MT 10 consists of a frequency converter, pressure and flow sensor, panel with keypad and display and a non-return valve.
It has several features that allow you to protect the system from dry running, overcurrent, overvoltage, undervoltage and short circuits.
Easy and simple both in installation and programming thanks to the comfortable keypad and display and the intuitive user interface.
- Power (HP)
- 3
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Degree of protection
- IP 55
- Max. working pressure (bar)
- Output Voltage (Volts)
- Max. liquid temperature (°C)
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- three-phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- 10.5
- Overcurrent protection
- Yes
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
- Height (cm)
- 23.5
- Width (cm)
- 27.9
- Depth (cm)
- 24.1
- Weight (Kg)
- Warranty (years)
- 2
- Motor phase frequency (Hz)
- 50, 60
Related articles on blog
Compare with Similar Products
 STEADYPRES MT 10 - 10.5 A single-phase/three-phase inverterThis product For three-phase pumps up to 3 HP. Single-phase/three-phase. |  Active Driver Plus M/T 2.2 - 10.5 A single-phase/three-phase inverterFor three-phase pumps up to 3 HP. Single-phase/three-phase. |  PWM II 230 D/10.5 - 10.5 A single-phase/three-phase inverterFor three-phase pumps up to 3 HP. Single-phase/three-phase. | |
|---|---|---|---|
| Price | Price €803.98 -42% €466.31 | Price €774.70 | Price €774.70 |
| Power (HP) | Power (HP) 3 | Power (HP) 3 | Power (HP) 3 |
| Suction mouth | Suction mouth 1" | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) 300 |
| Max. working pressure (bar) | Max. working pressure (bar) -- | Max. working pressure (bar) -- | Max. working pressure (bar) -- |
| Output Voltage (Volts) | Output Voltage (Volts) -- | Output Voltage (Volts) -- | Output Voltage (Volts) -- |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- |
| Line power supply | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase |
| Supply voltage (Volts) | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 |
| Engine power supply | Engine power supply three-phase | Engine power supply three-phase | Engine power supply three-phase |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Motor Phase Current (Amperes) | Motor Phase Current (Amperes) 10.5 | Motor Phase Current (Amperes) -- | Motor Phase Current (Amperes) -- |
| Overcurrent protection | Overcurrent protection Yes | Overcurrent protection Yes | Overcurrent protection Yes |
| Amperometric protection | Amperometric protection Yes | Amperometric protection Yes | Amperometric protection Yes |
| Short circuit protection | Short circuit protection Yes | Short circuit protection Yes | Short circuit protection Yes |
| Dry running protection | Dry running protection Yes | Dry running protection Yes | Dry running protection Yes |
| Height (cm) | Height (cm) 23.5 | Height (cm) 28.2 | Height (cm) 28.2 |
| Width (cm) | Width (cm) 27.9 | Width (cm) 23.7 | Width (cm) 23.7 |
| Depth (cm) | Depth (cm) 24.1 | Depth (cm) 18.4 | Depth (cm) 18.4 |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
| Motor phase frequency (Hz) | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 |
