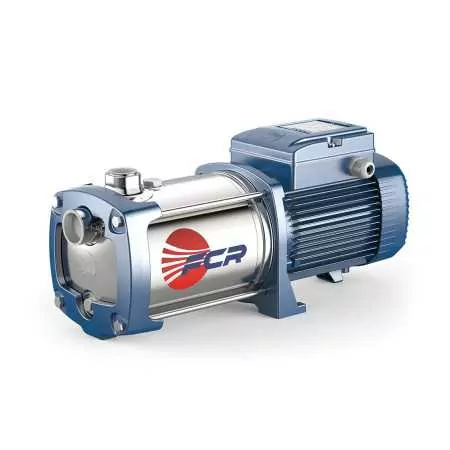

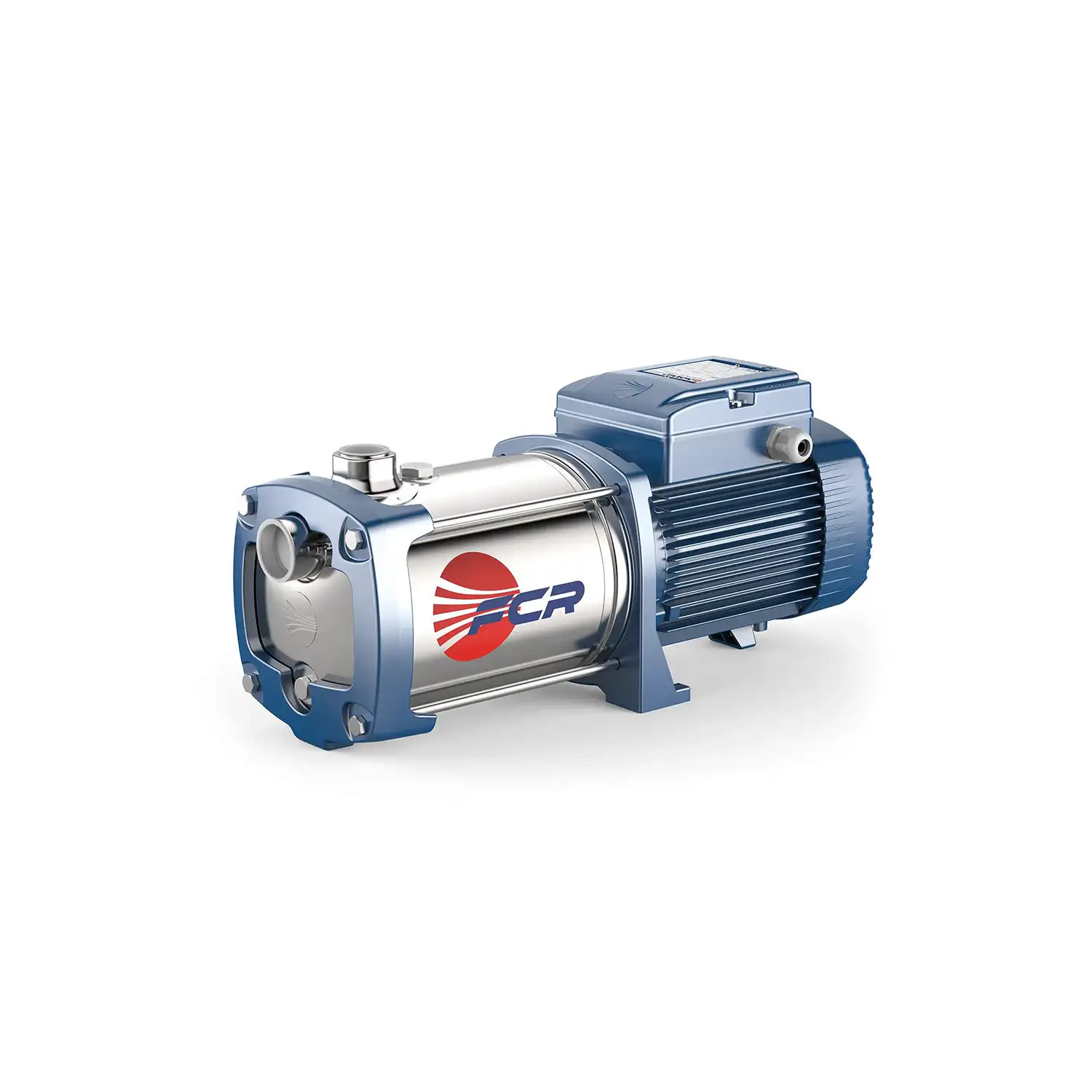

FCR 240/5 - 3 HP three-phase multi-impeller electric pump

Name: FCR 240/5 - 3 HP three-phase multi-impeller electric pump
Brand: Pedrollo
SKU: FCR 240/5
Price: 607.93 EUR
Availability: InStock

Flow rate up to 240 l/min (14.4 m³/h). Head up to 77 m. 2.2 Kw (3 HP) motor.

Variants:

Make a purchase proposal

After-sales assistance for product installation.

Reinforced packaging to reduce transport damage.

Telephone support for information before purchasing.

We supply all spare parts on this product.

Description

The FCR 240/5 multi-impeller electric pump is recommended for irrigating vegetable gardens and gardens.

This pump is recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

The operation of the peripheral pump is very simple and reliable, as the movement of the impellers in the pumping body increases the pressure of the pumped water.

The FCR 240/4 is a multi-impeller pump and is therefore particularly appreciated in domestic environments due to its great silence.

The flow rate ranges from 19 to 77 liters per minute. The head ranges from 20 to 240 meters.

This pump has a 1¼" suction port and a 1" discharge port.

The FCR 240/5 must be powered by a three-phase voltage, has a horsepower of 3 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.

The pump body, the impeller and the motor shaft are made of AISI 304 stainless steel, this gives the pump good strength and resistance.

The FCR 240/4 must be installed indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (HP): 3
Absorption at 230V (A): 8.6
Current consumption at 400V (A): 5.0
Suction mouth: 1" 1/4
Delivery mouth: 1"
Impeller: AISI 304 stainless steel
Number of impellers: 2
Crankshaft: AISI 304 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 20
Max. flow rate (l./min.): 240
Min. head (m.): 19
Max. head (m.): 77
Jobs: irrigation
Max. liquid temperature (°C): +40°C, +90°C
Motor voltage: 230 V, 400V
Height (cm): 22.8
Width (cm): 18.5
Depth (cm): 51.2
Weight (Kg): 22.7
Warranty (years): 2

Attachments

Technical data sheet FCR

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo FCR 90-130-200-240 series pumps.

Download (770.97KB)

Models and performance FCR 200-240

TYPE

single phase

FCR 90/5

FCR 90/6

FCR 90/7

FCR 130/3

FCR 130/4

FCR 130/5

FCR 200/3

FCR 200/4

FCR 200/5

FCR 200/6

POWER
KW	HP
1.1	1.5
1.5	2
1.8	2.5
1.1	1.5
1.5	2
1.8	2.5
1.1	1.5
1.5	2
1.8	2.5
2.2	3

PERFORMANCES
Q liters/min	H meters
5 ÷ 90	80 ÷ 38
5 ÷ 90	96 ÷ 45
5 ÷ 90	111 ÷ 53
5 ÷ 130	49 ÷ 24
5 ÷ 130	65 ÷ 31
5 ÷ 130	81 ÷ 39
5 ÷ 200	46 ÷ 13
5 ÷ 200	58 ÷ 17
5 ÷ 200	73 ÷ 22
5 ÷ 200	87 ÷ 26

MOUTH
asp.	send.
1 1/4"	1"

Q	m³/hour	0	0.3	0.6	1.2	2.4	3.6	4.8	5.4	6.0	7.8	8.4	9.6	10.8	12.0
Q	l/min	0	5	10	20	40	60	80	90	100	130	140	160	180	200
H	meters	80	78	77	74	67	57	45	38
		96	94	92	88	80	69	53	45
		111	110	108	103	93	80	63	53
		49	49	48.5	47.5	45	42.5	38.5	36	33.5	24
		65	65	64	63	60	56	50	47	43	31
		81	81	80.5	79	75	70	62.5	59	54	39
		44	43.5	43.5	43	42	40.5	38	36.5	35	29	27.5	23	18	13
		58	57.5	57.5	57	55	52.5	49.5	47	45	38	35.5	30	24	17
		73	72	71.5	71	69	65.5	62	59	56.5	48	44.5	38	30	22
		87	86	85.5	85	82	78	73	69	67	57	53	45	36	26

Construction data of the FCR-90-FCR-130-FCR 200

Bearings

Pump side motor bearing	6304 2RS-C3
Opposite side motor bearing	6204 ZZ-C3E

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-18
LP diameter	18
Fixed ring LP	Graphite
Rotating ring LP	Silicon carbide
LP elastomer	NBR

Materials

1.0 - Pump Body	EN 1.4301 stainless steel (AISI 304)
2.1 - Seal holder cover	EN 1.4301 stainless steel (AISI 304)
3.0 - Impeller	EN 1.4301 stainless steel (AISI 304)
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
5.1 - Diffuser	EN 1.4301 stainless steel (AISI 304)
5.2 - Shim Ring	PTFE
6.0 - Motor holder	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
