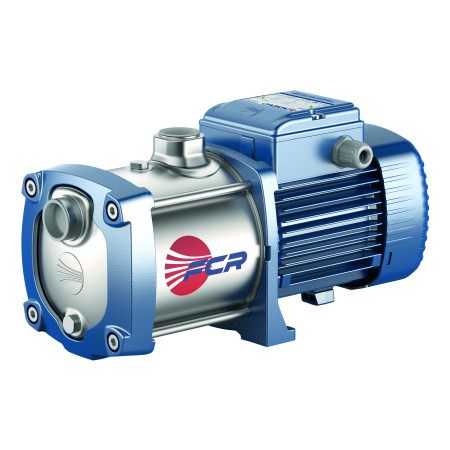

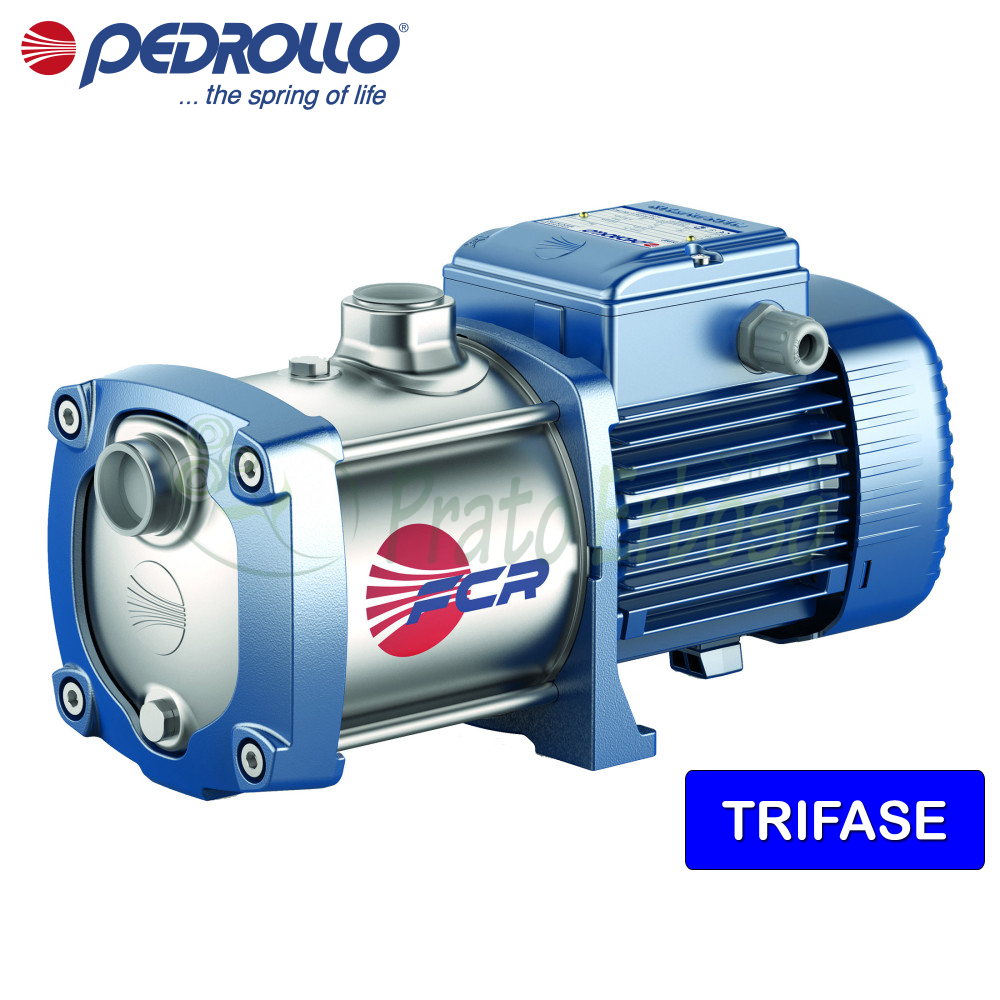

FCR 80/2 - 0.40 HP three-phase multi-impeller electric pump
With stainless steel impeller. Flow rate up to 70 l/min (4.2 m³/h). Head up to 27 m. Motor 0.30 Kw (0.40 HP).
The Pedrollo FCR 80/2 centrifugal electric pump is ideal for domestic and civil use.
The main feature of this pump is its silence. With the multi-stage construction, the operating noise is particularly low.
All components are made entirely of stainless steel which guarantees a long life and high performance and also allows to preserve energy consumption.
The FCR 80/2 is particularly recommended for water distribution in combination with pressure tanks, for industrial applications, irrigation systems.
It must be powered by a three-phase voltage, has a horsepower of 0.3 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +60.
The flow rate ranges from 5 to 70 metres and the head from 5 to 27 litres.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.30
- Power (HP)
- 0.40
- Absorption at 230V (A)
- 1.6
- Current consumption at 400V (A)
- 0.9
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 2
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 70
- Min. head (m.)
- 5
- Max. head (m.)
- 27
- Jobs
- irrigation
- Max. liquid temperature (°C)
- +60°C
- Motor voltage
- 230 V, 400V
- Height (cm)
- 17.1
- Width (cm)
- 16.0
- Depth (cm)
- 33.3
- Weight (Kg)
- 6.9
- Warranty (years)
- 2
Compare with Similar Products

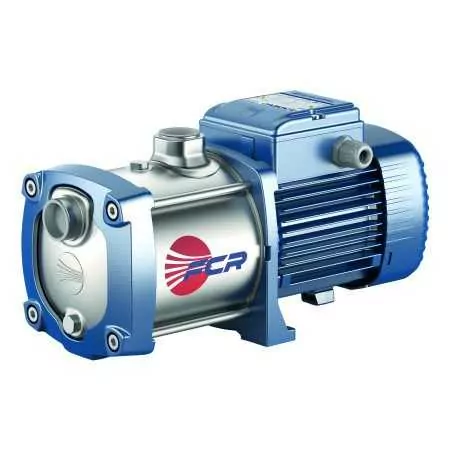

 FCR 80/2 - 0.40 HP three-phase multi-impeller electric pumpThis product With stainless steel impeller. Flow rate up to 70 l/min (4.2 m³/h). Head up to 27 m. Motor 0.30 Kw (0.40 HP). |  2CR 80 - 0.40 HP three-phase multi-impeller centrifugal electric pumpFlow rate up to 70 l/min (4.2 m³/h). Head up to 27 m. Motor 0.30 Kw (0.40 HP). | |
|---|---|---|
| Price | Price €414.80 -45% €228.14 | Price €320.86 -42% €186.10 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 0.30 | Power (Kw) 0.30 |
| Power (HP) | Power (HP) 0.40 | Power (HP) 0.40 |
| Absorption at 230V (A) | Absorption at 230V (A) 1.6 | Absorption at 230V (A) 1.7 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 0.9 | Current consumption at 400V (A) 1.0 |
| Suction mouth | Suction mouth 1" 1/4 | Suction mouth 1" |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller Noryl |
| Number of impellers | Number of impellers 2 | Number of impellers 2 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 70 | Max. flow rate (l./min.) 70 |
| Min. head (m.) | Min. head (m.) 5 | Min. head (m.) 5 |
| Max. head (m.) | Max. head (m.) 27 | Max. head (m.) 27 |
| Jobs | Jobs irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +60°C | Max. liquid temperature (°C) +40°C |
| Motor voltage | Motor voltage 230 V, 400V | Motor voltage -- |
| Height (cm) | Height (cm) 17.1 | Height (cm) 18.2 |
| Width (cm) | Width (cm) 16.0 | Width (cm) 18.2 |
| Depth (cm) | Depth (cm) 33.3 | Depth (cm) 36.1 |
| Weight (Kg) | Weight (Kg) 6.9 | Weight (Kg) 6.5 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
