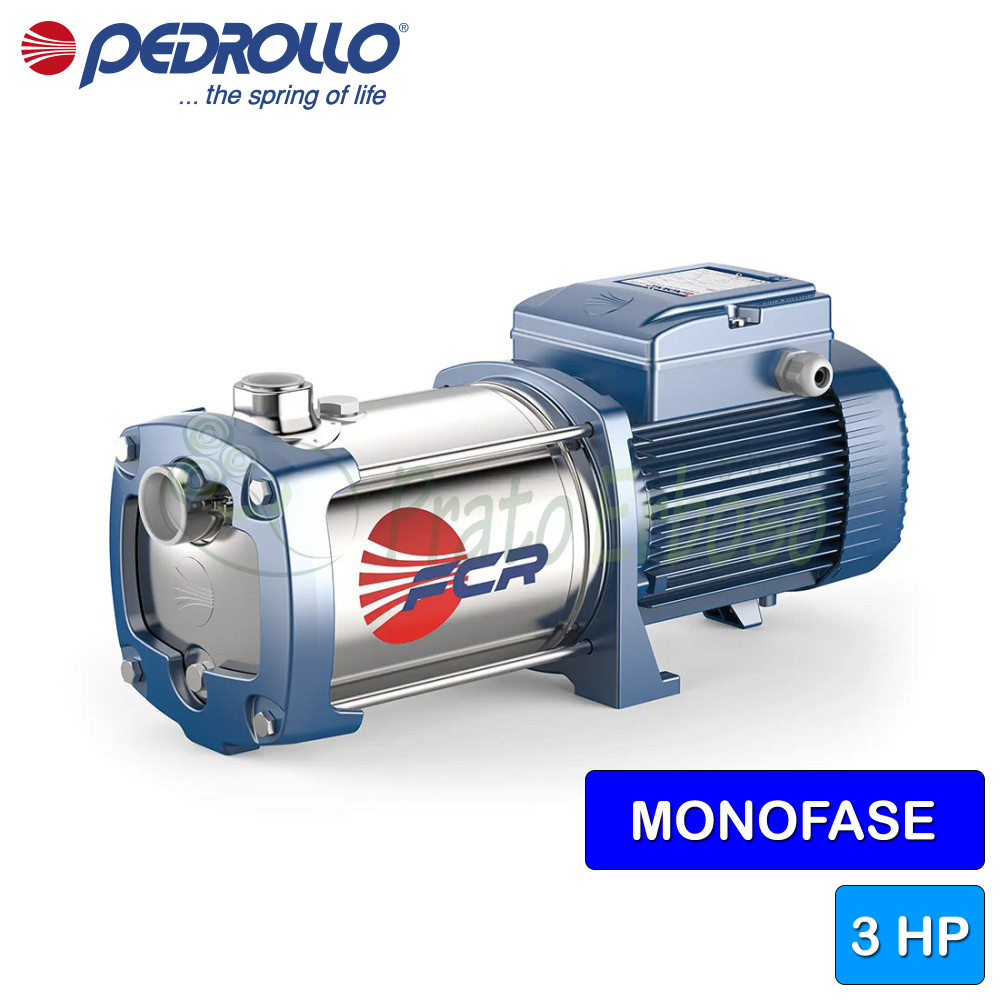

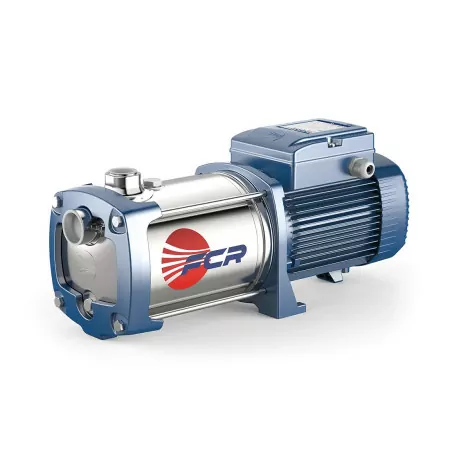

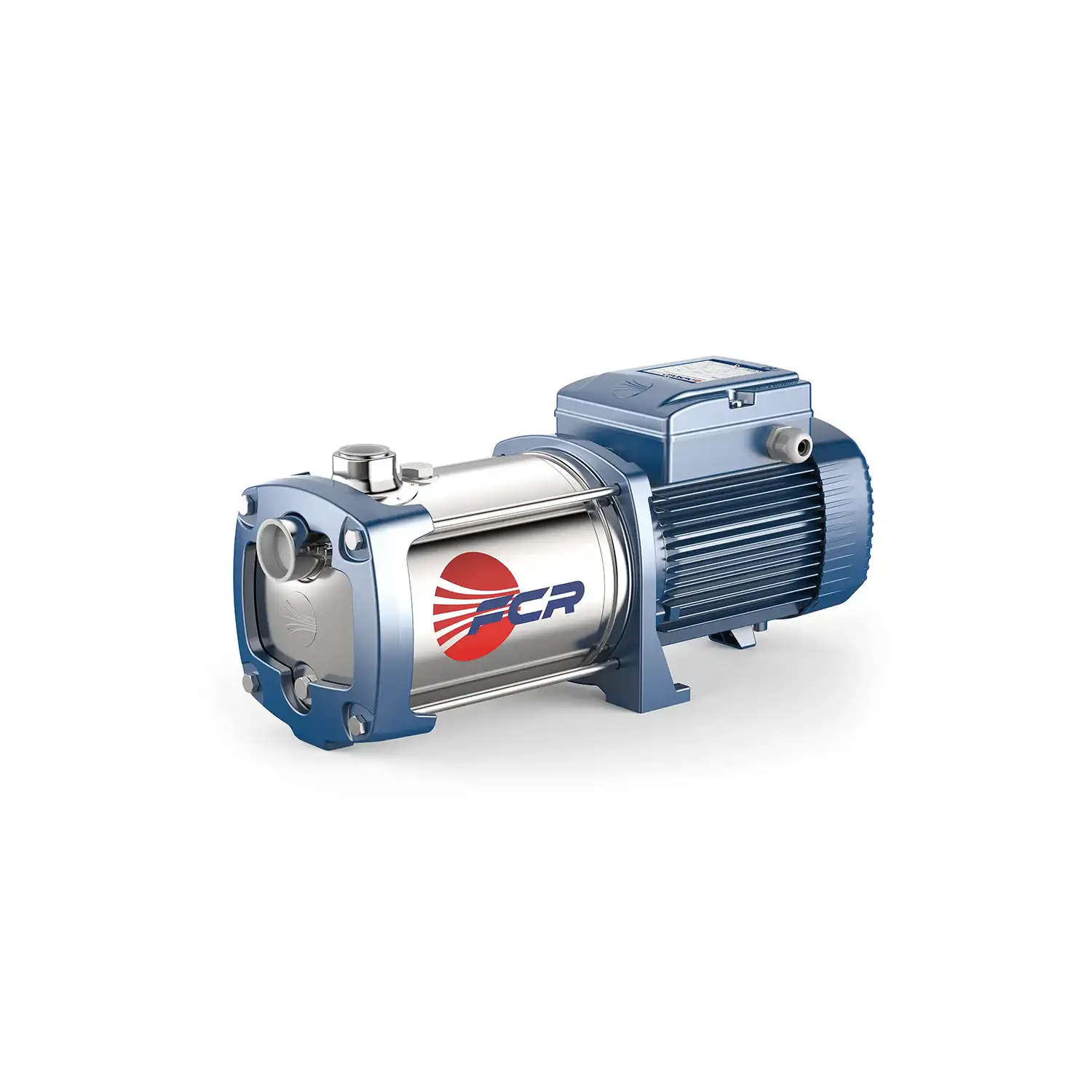

FCRm 130/6 - 3 HP single-phase multi-impeller electric pump
With stainless steel impellers. Flow rate up to 130 l/min (7.8 m³/h). Head up to 103 m. Motor 2.2 Kw (3 HP).
The FCRm 130/6 electric pump is recommended for domestic and civil use.
Recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The FCRm 130/6 is reliable and quiet, thanks to the multi-stage construction, the operating noise is particularly low.
It is widely used in the domestic sector and in particular for the distribution of water in combination with small or medium pressure tanks, for the irrigation of vegetable gardens or gardens.
All pump components are made of stainless steel which guarantees long life and high performance.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 13.5
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 5
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 62
- Max. head (m.)
- 103
- Jobs
- irrigation
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 22.8
- Width (cm)
- 18.5
- Depth (cm)
- 53.8
- Weight (Kg)
- 24.7
- Warranty (years)
- 2
