-45%

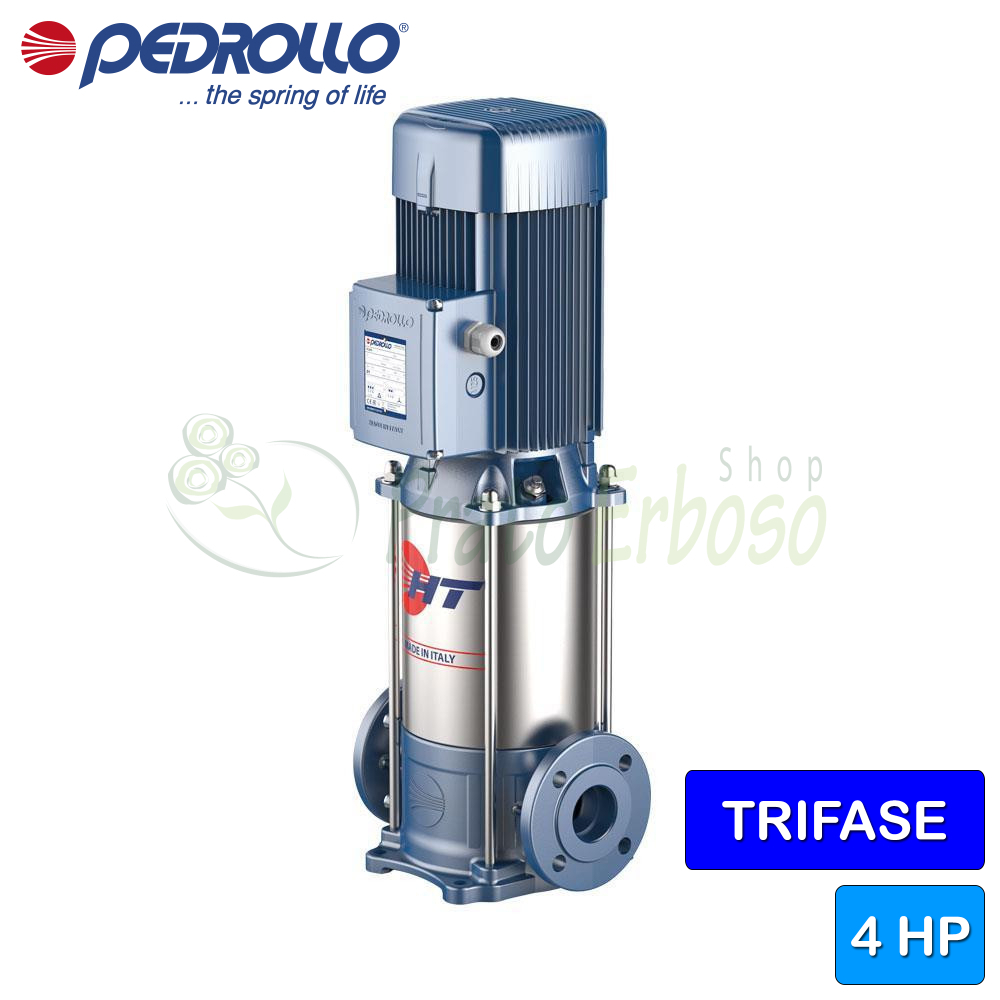

HT 15/3R - 4 HP three-phase vertical multistage electric pump
Flow rate up to 350 l/min (21 m³/h). Head up to 64.5 m. 3 kW (4 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The HT 15/3R centrifugal electric pump from the HT series by Pedrollo is suitable for water distribution in combination with pressure tanks, for increasing network pressure, for fire-fighting systems and for washing systems and for irrigation.
Its great reliability and high performance make it ideal for use in the domestic, agricultural and industrial sectors.
Designed to ensure high hydraulic performance combined with a robust, compact and reliable mechanical construction.
All pump components are made of stainless steel which guarantees high efficiency and reliable performance.
Thanks to its multi-stage construction, the HT 15/3R is particularly quiet.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 350
- Min. head (m.)
- 27
- Max. head (m.)
- 64.5
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
HT 15 models and performances
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HT 15 series
