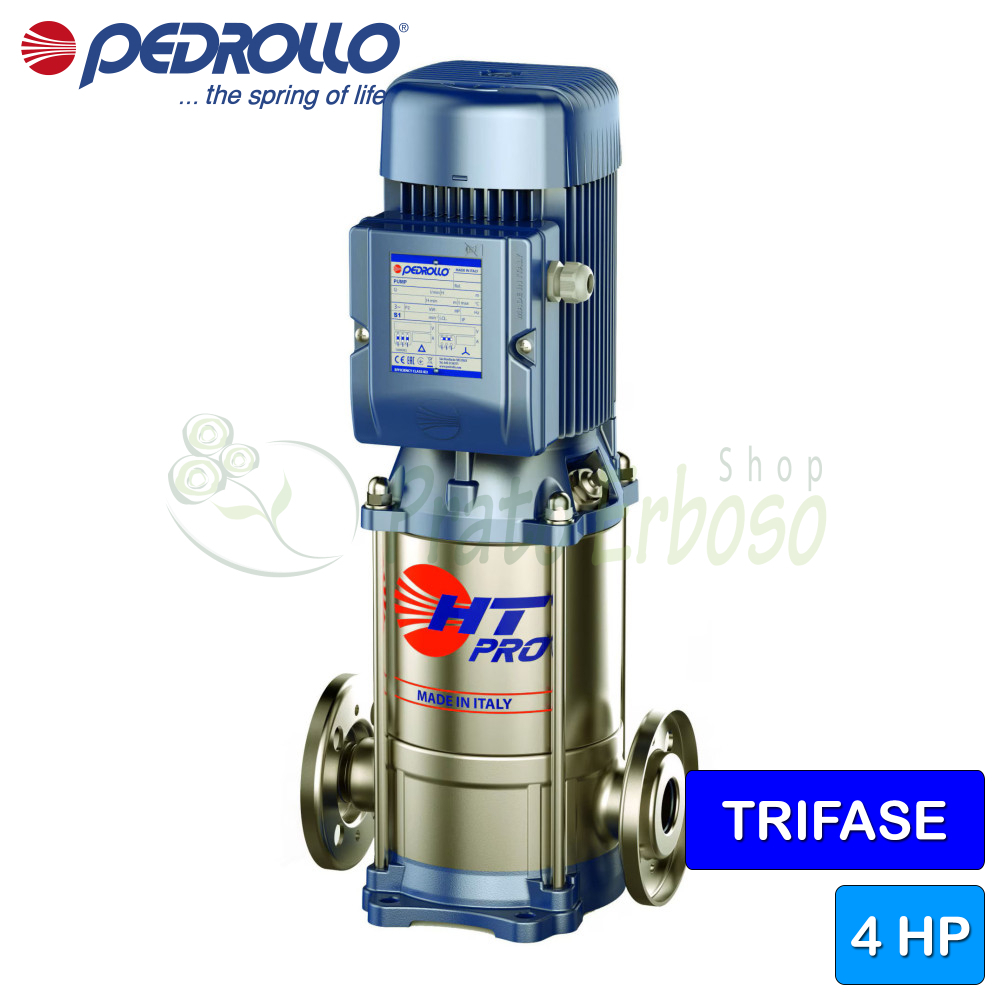

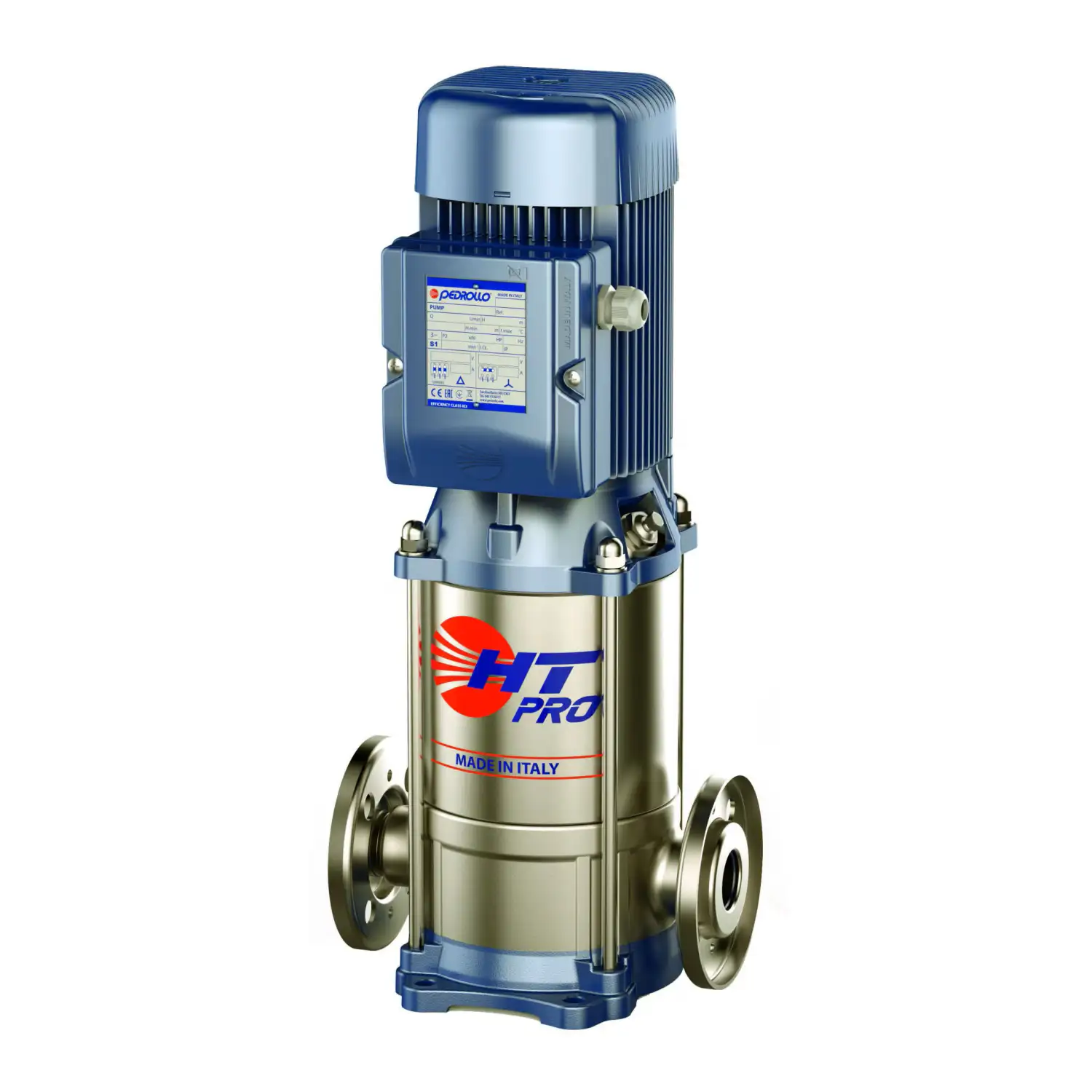

HT 15/3R-PRO - 4 HP three-phase vertical multistage electric pump
Flow rate up to 350 l/min (21 m³/h). Head up to 64.5 m. 3 kW (4 HP) motor.
The HT 15/3R-PRO centrifugal electric pump from the HT-PRO series by Pedrollo boasts a compact and reliable construction.
Pedrollo 's use of cast iron and stainless steel makes the electric pump solid and robust.
The pump body, cover, jacket, impellers and diffusers are made of AISI 304 stainless steel and the drive shaft is made of AISI 431 stainless steel, guaranteeing long life and high efficiency.
It can pump clean water and liquids that are not chemically aggressive to the components.
The HT 15/3R-PRO is suitable for use in the agricultural, civil and industrial sectors.
It is particularly recommended for water distribution in conjunction with pressure tanks, for increasing network pressure, for fire-fighting systems and for washing systems and for irrigation.
The multi-stage stainless steel construction ensures long life and very low operating noise.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 350
- Min. head (m.)
- 27
- Max. head (m.)
- 64.5
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
