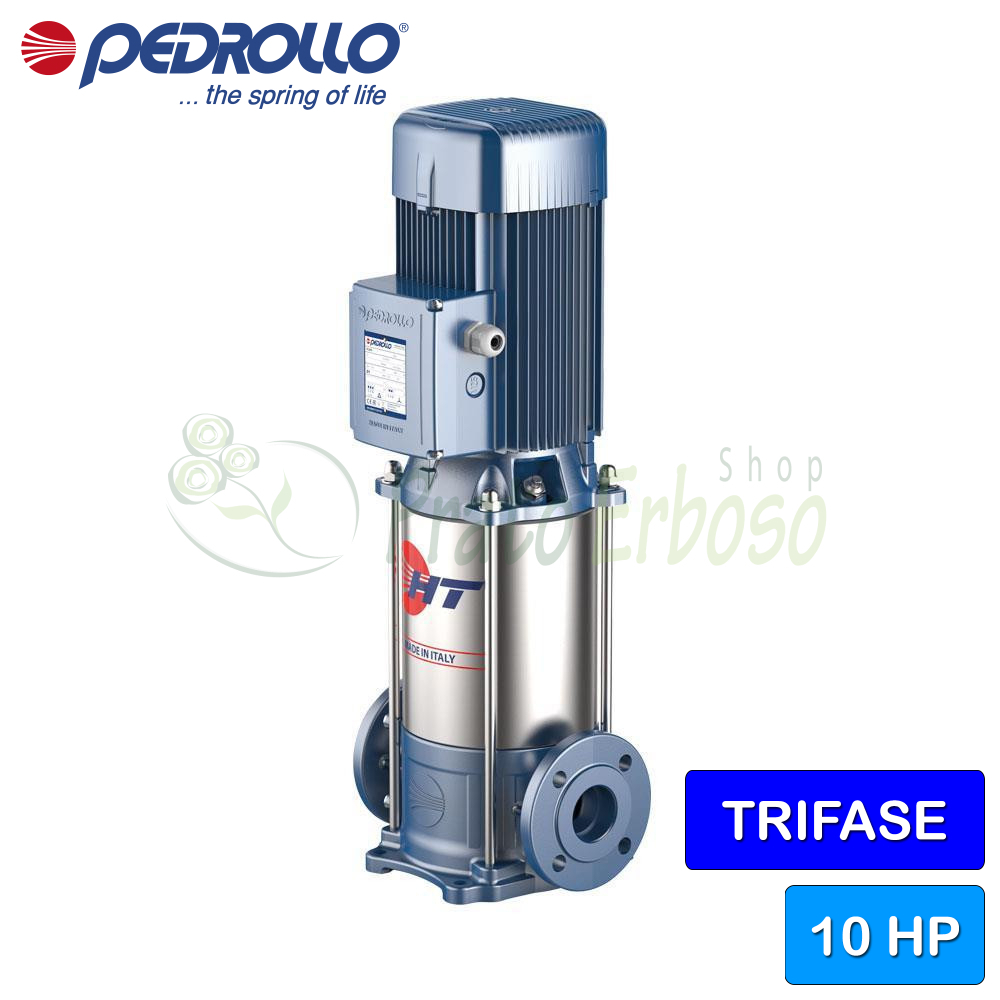

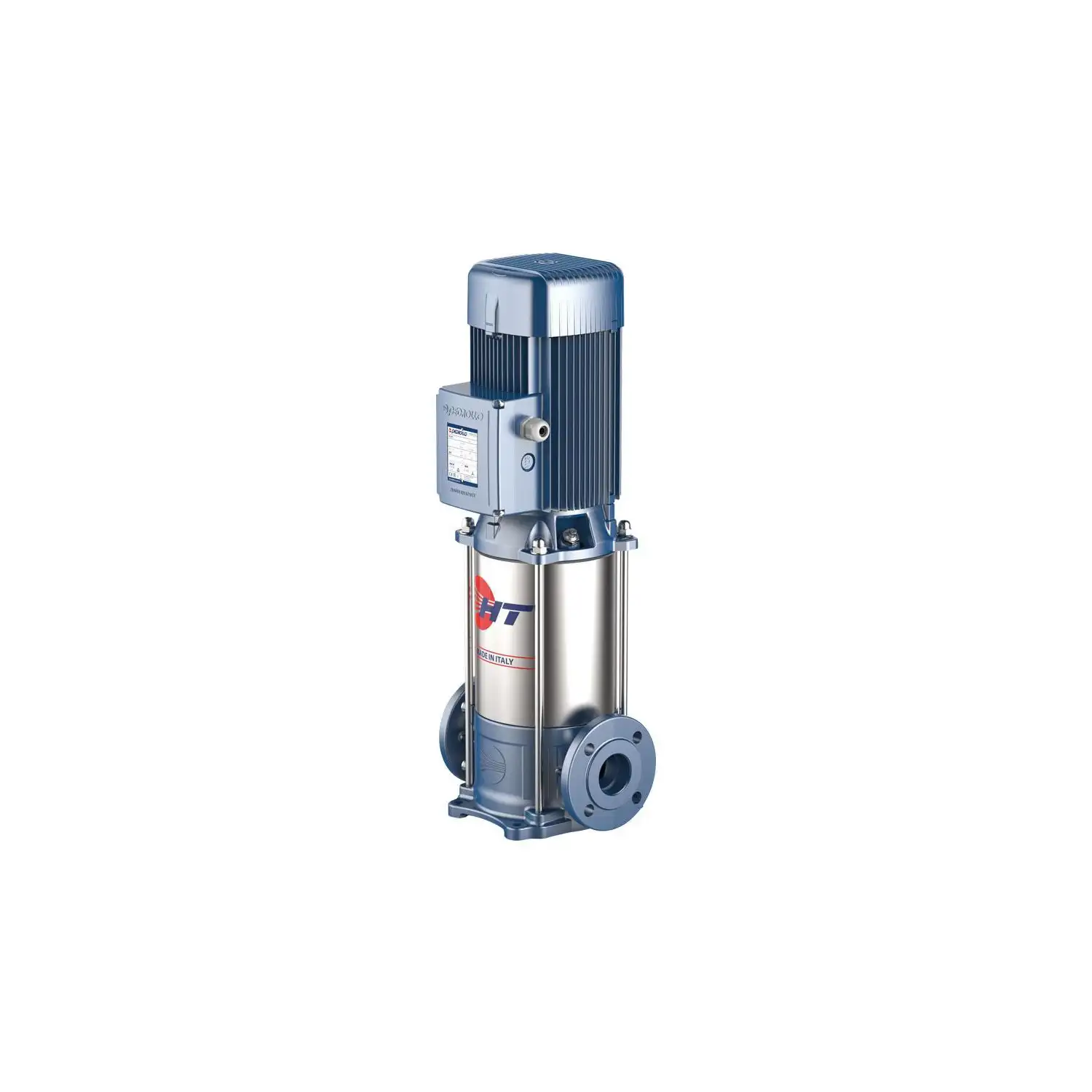

HT 15/5 - 10 HP three-phase vertical multistage electric pump
Flow rate up to 400 l/min (24 m³/h). Head up to 120 m. 7.5 Kw (10 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The HT 15/5 centrifugal electric pump from the HT series by Pedrollo is recommended for use in the domestic, civil, agricultural and industrial sectors.
It can pump clean water and chemically non-aggressive liquids.
The HT 15/5 stands out for its high performance and its great adaptability to various types of use.
Suitable for water distribution in conjunction with pressure tanks, for increasing network pressure, for fire-fighting systems and for washing systems and for irrigation.
Designed to ensure high hydraulic performance combined with a compact and reliable construction.
The jacket, impellers, diffusers and crankshaft are made of stainless steel which guarantees high performance.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 7.5
- Power (HP)
- 10
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 45
- Max. head (m.)
- 120
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
HT 15 models and performances
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HT 15 series
