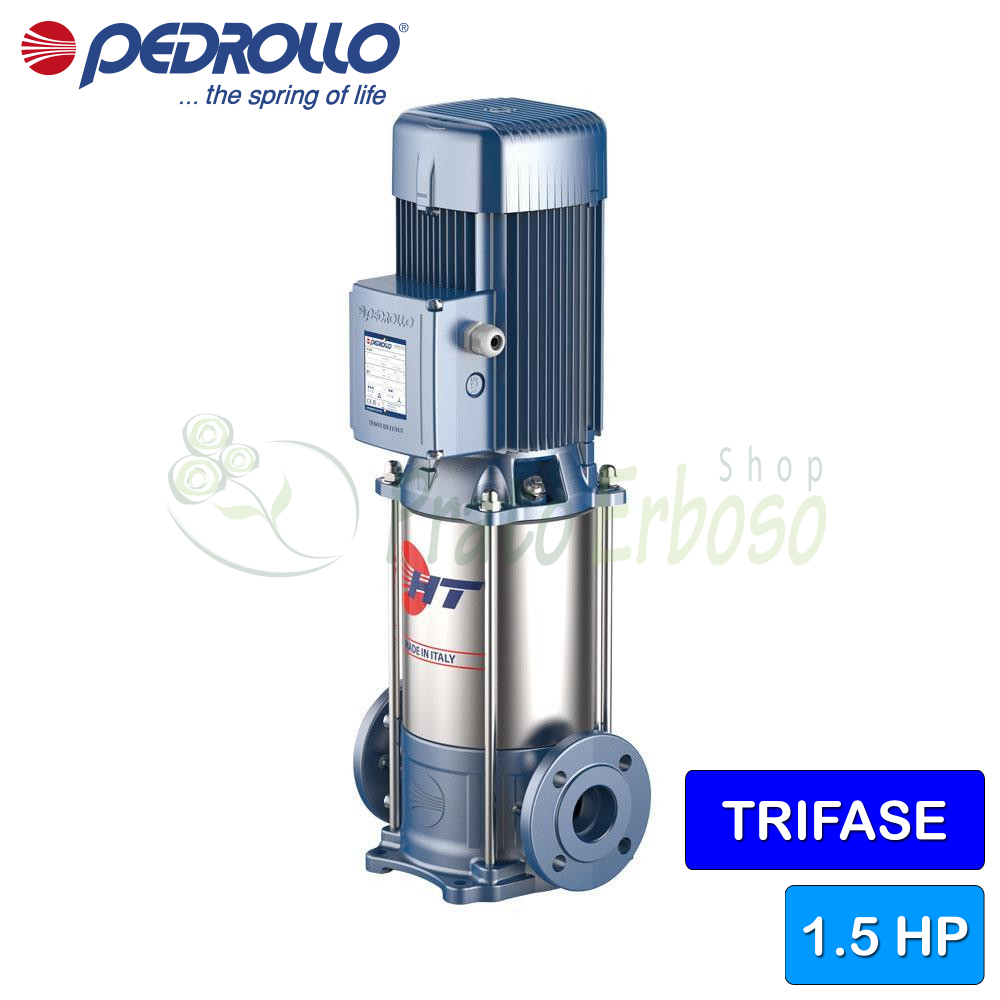

HT 3/5 - 1.5 HP three-phase vertical multistage electric pump
Flow rate up to 90 l/min (5.4 m³/h). Head up to 81 m. 1.1 Kw (1.5 HP) motor.
The HTm 3/5 centrifugal electric pump from the HT series by Pedrollo is recommended for use in the domestic, civil, agricultural and industrial sectors.
It can pump clean water and chemically non-aggressive liquids.
The HTm 3/5 stands out for its high performance and its great adaptability to various types of use.
Suitable for water distribution in conjunction with pressure tanks, for increasing network pressure, for fire-fighting systems and for washing systems and for irrigation.
Designed to ensure high hydraulic performance combined with a compact and reliable construction.
The jacket, impellers, diffusers and crankshaft are made of stainless steel which guarantees high performance.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 90
- Min. head (m.)
- 44
- Max. head (m.)
- 81
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Weight (Kg)
- 35
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 HT 3/5 - 1.5 HP three-phase vertical multistage electric pumpThis product Flow rate up to 90 l/min (5.4 m³/h). Head up to 81 m. 1.1 Kw (1.5 HP) motor. |  MK 3/5 - 1.5 HP three-phase vertical multistage electric pumpFlow rate up to 80 l/min (4.8 m³/h). Head up to 87 m. 1.1 Kw (1.5 HP) motor. |  FCR 90/5 - 1.5 HP three-phase multi-impeller electric pumpWith stainless steel impeller. Flow rate up to 90 l/min (5.4 m³/h). Head up to 80 m. 1.1 kW (1.5 HP) motor. | |
|---|---|---|---|
| Price | Price €1,244.40 -45% €684.42 | Price €791.78 -42% €459.23 | Price €990.64 -45% €544.85 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 1.1 | Power (Kw) -- |
| Power (HP) | Power (HP) 1.5 | Power (HP) 1.5 | Power (HP) 1.5 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) 5.2 | Absorption at 230V (A) 6.1 |
| Current consumption at 400V (A) | Current consumption at 400V (A) -- | Current consumption at 400V (A) 3.0 | Current consumption at 400V (A) 3.5 |
| Suction mouth | Suction mouth 1" | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller Noryl | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 3 | Number of impellers 5 | Number of impellers 5 |
| Crankshaft | Crankshaft -- | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection -- | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 90 | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 90 |
| Min. head (m.) | Min. head (m.) 44 | Min. head (m.) 48 | Min. head (m.) 38 |
| Max. head (m.) | Max. head (m.) 81 | Max. head (m.) 87 | Max. head (m.) 80 |
| Jobs | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply | Jobs water supply, pressurization systems, irrigation, washing systems, fire prevention systems | Jobs irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +90°C |
| Height (cm) | Height (cm) -- | Height (cm) 50.4 | Height (cm) 22.8 |
| Width (cm) | Width (cm) -- | Width (cm) 18.5 | Width (cm) 49.7 |
| Depth (cm) | Depth (cm) -- | Depth (cm) 22.3 | Depth (cm) 18.5 |
| Weight (Kg) | Weight (Kg) 35 | Weight (Kg) 20.1 | Weight (Kg) 19.8 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
