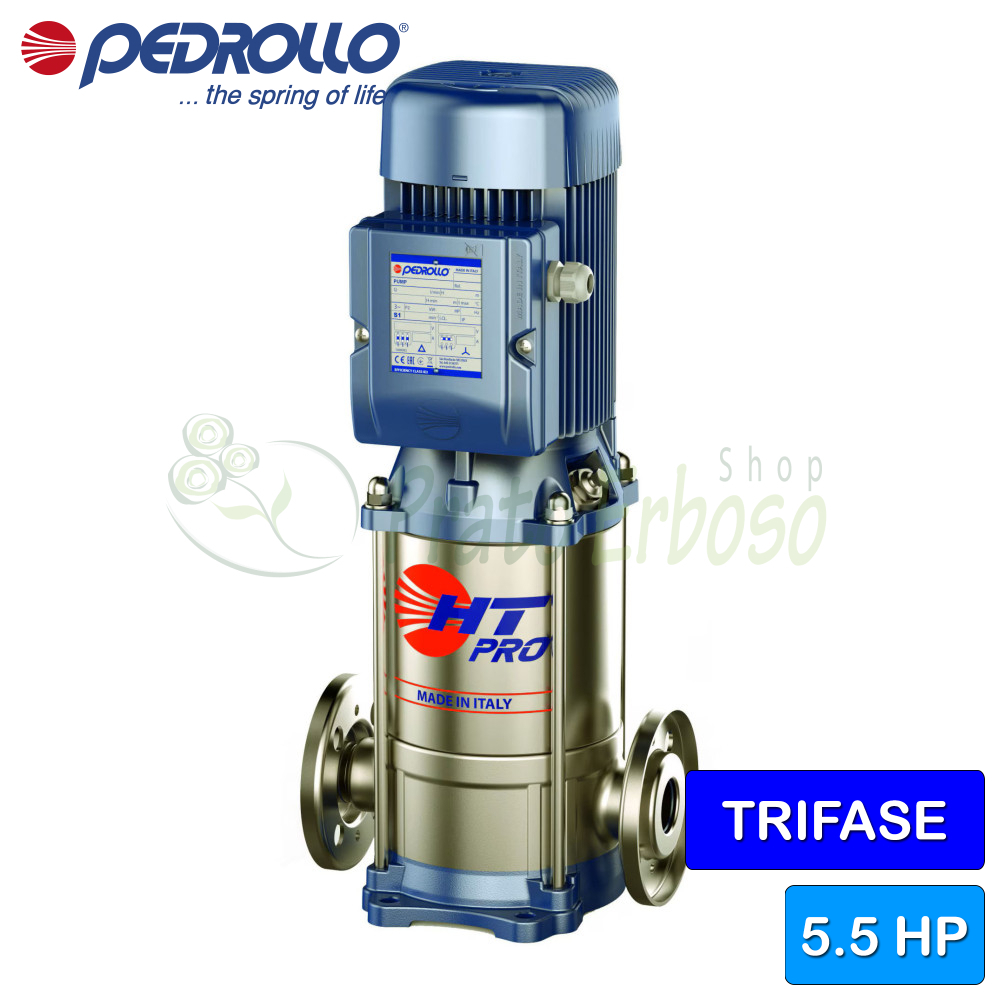

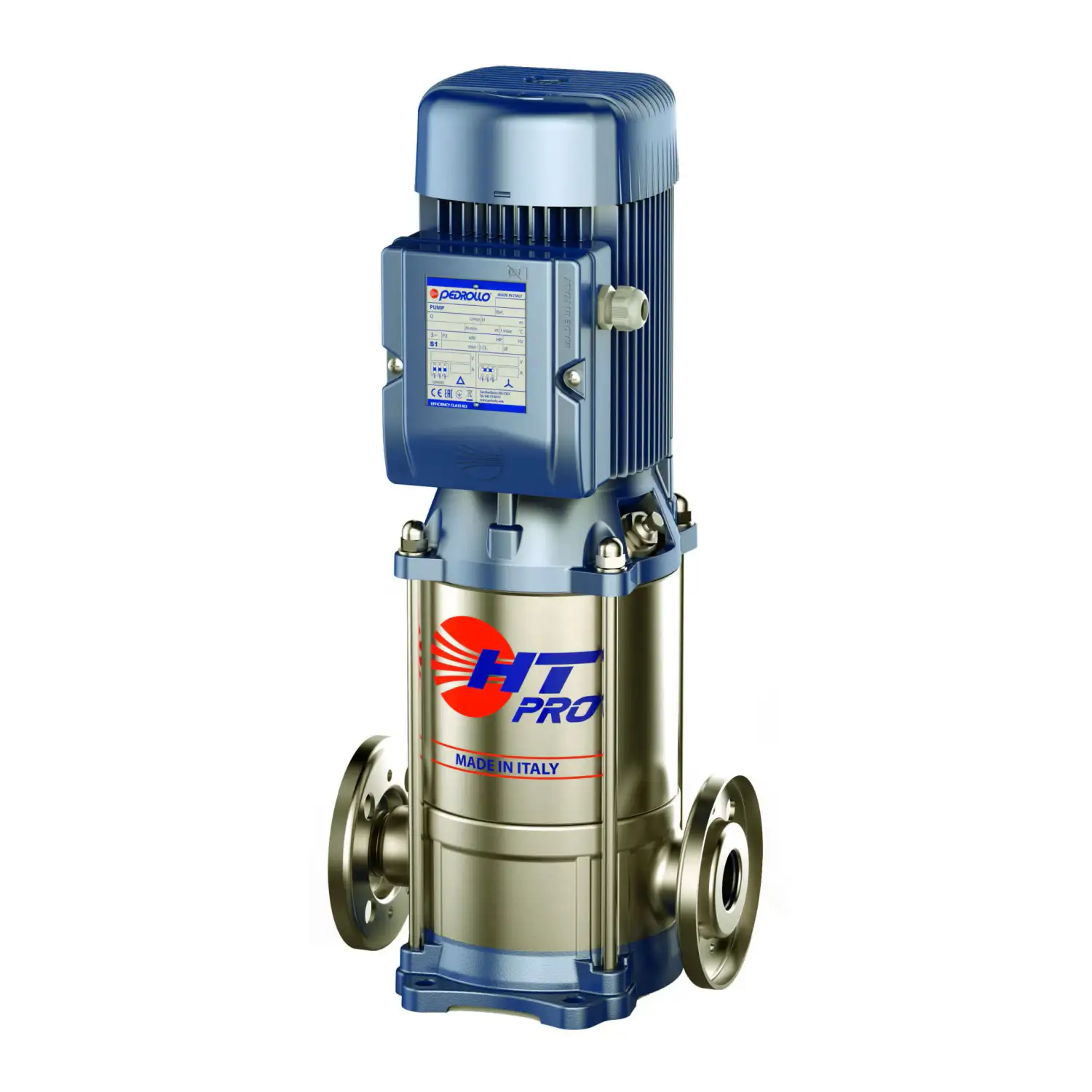

HT 30/2-PRO - 5.5 HP three-phase vertical multistage electric pump
Flow rate up to 800 l/min (5.4 m³/h). Head up to 40 m. 4 kW (5.5 HP) motor.
The HT 30/2-PRO centrifugal electric pump from the HT series by Pedrollo guarantees high performance and great adaptability.
It can be used in the domestic, civil and industrial sectors, in particular for the distribution of water in combination with pressure tanks, for increasing network pressure, for fire-fighting systems, for washing and irrigation systems.
The construction of the electric pump is solid and resistant and the materials are premium with a mix of cast iron and AISI 304 and 431 stainless steel.
The HT 30/2-PRO is particularly quiet, even during the most intense work sessions thanks to its multi-stage stainless steel construction.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 4
- Power (HP)
- 5.5
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 8
- Max. head (m.)
- 40
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6307 2RS-C3 |
| Opposite side engine bearing | 6206 2RS-C3 |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-KU-24 |
| LP diameter | 24 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 2.0 - Lid | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
