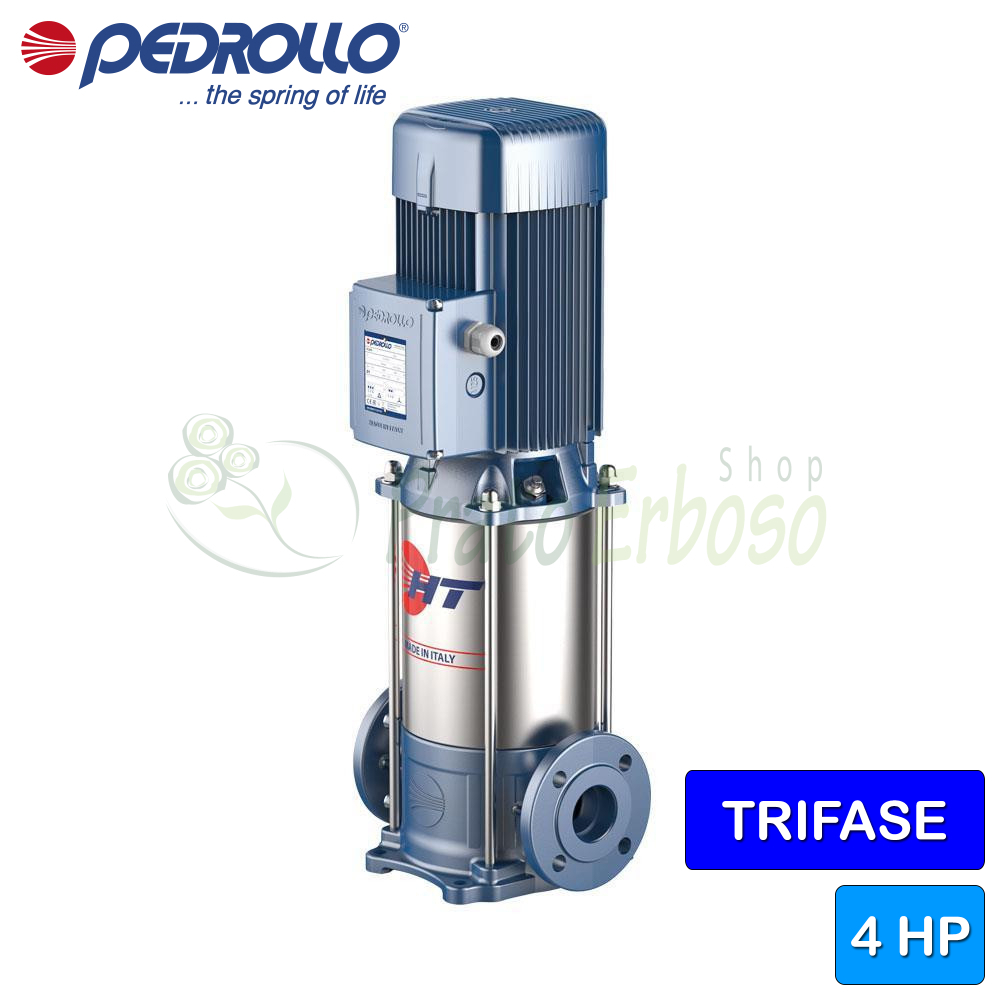

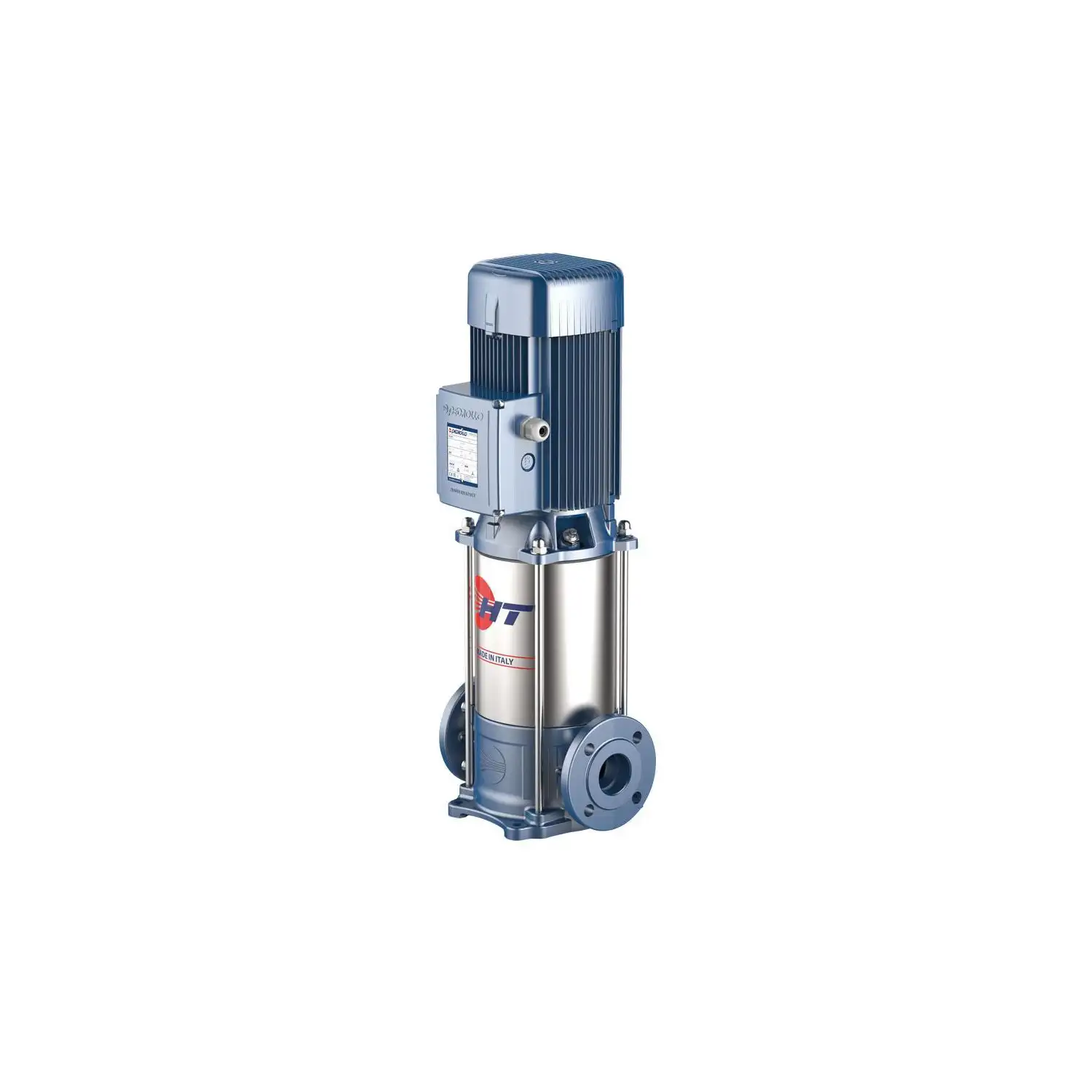

HT 30/2R - 4 HP three-phase vertical multistage electric pump
Flow rate up to 700 l/min (42 m³/h). Head up to 35 m. 3 kW (4 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The HT 30/2R centrifugal electric pump from the HT series by Pedrollo guarantees high performance and great adaptability.
It can be used in the domestic, civil and industrial sectors, in particular for the distribution of water in combination with pressure tanks, for increasing network pressure, for fire-fighting systems, for washing and irrigation systems.
The construction of the electric pump is solid and resistant and the materials are premium with a mix of cast iron and AISI 304 and 431 stainless steel.
The HT 30/2R is particularly quiet, even during the most intense work sessions thanks to its multi-stage construction.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 700
- Min. head (m.)
- 10
- Max. head (m.)
- 35
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
HT 30 models and performances
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HT 15 series
