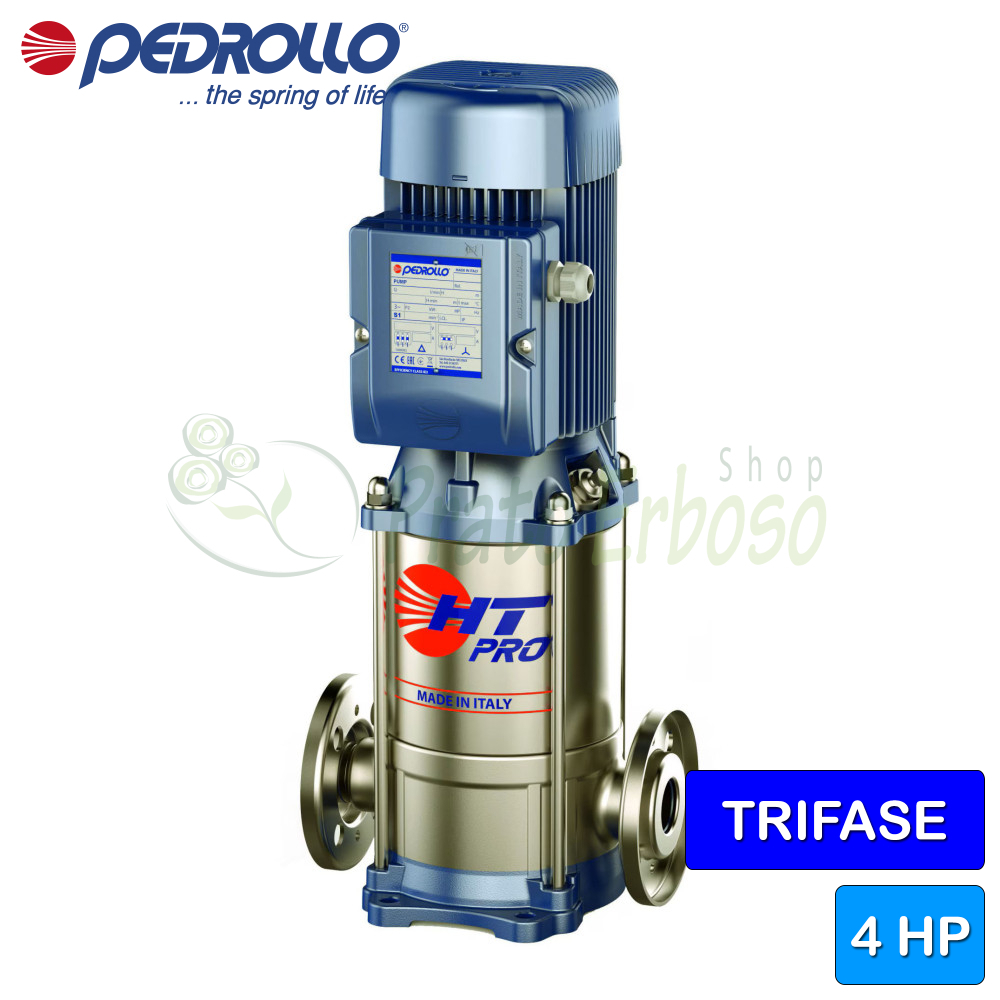

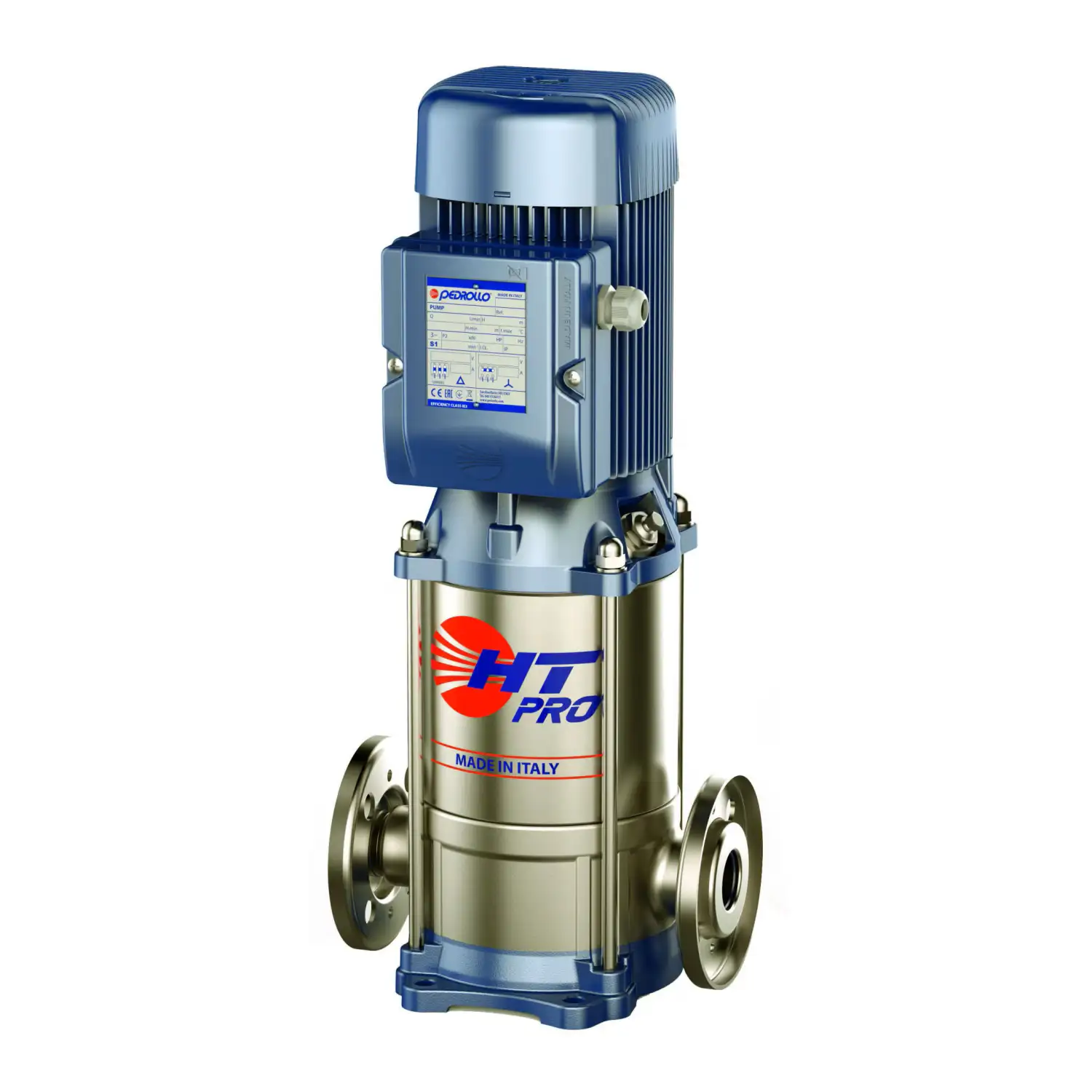

HT 30/2R-PRO - 4 HP three-phase vertical multistage electric pump
Flow rate up to 700 l/min (5.4 m³/h). Head up to 35 m. 3 kW (4 HP) motor.
The HT 30/2R-PRO centrifugal electric pump from the HT series by Pedrollo guarantees high hydraulic performance combined with excellent hydraulic construction.
The jacket, impellers, diffusers, pump body and cover are made of AISI 304 stainless steel and the drive shaft is made of 431 stainless steel, guaranteeing long life and high efficiency.
It can pump clean water and chemically non-aggressive liquids for the components.
The HT 30/2R-PRO stands out for its high performance and adaptability, making it an ideal choice in the domestic, civil, agricultural and industrial sectors.
Particularly for water distribution in conjunction with pressure tanks, for increasing network pressure, for fire-fighting systems, for washing and irrigation systems.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 12.5
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 700
- Min. head (m.)
- 10
- Max. head (m.)
- 35
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6307 2RS-C3 |
| Opposite side engine bearing | 6206 2RS-C3 |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-KU-24 |
| LP diameter | 24 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 2.0 - Lid | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
