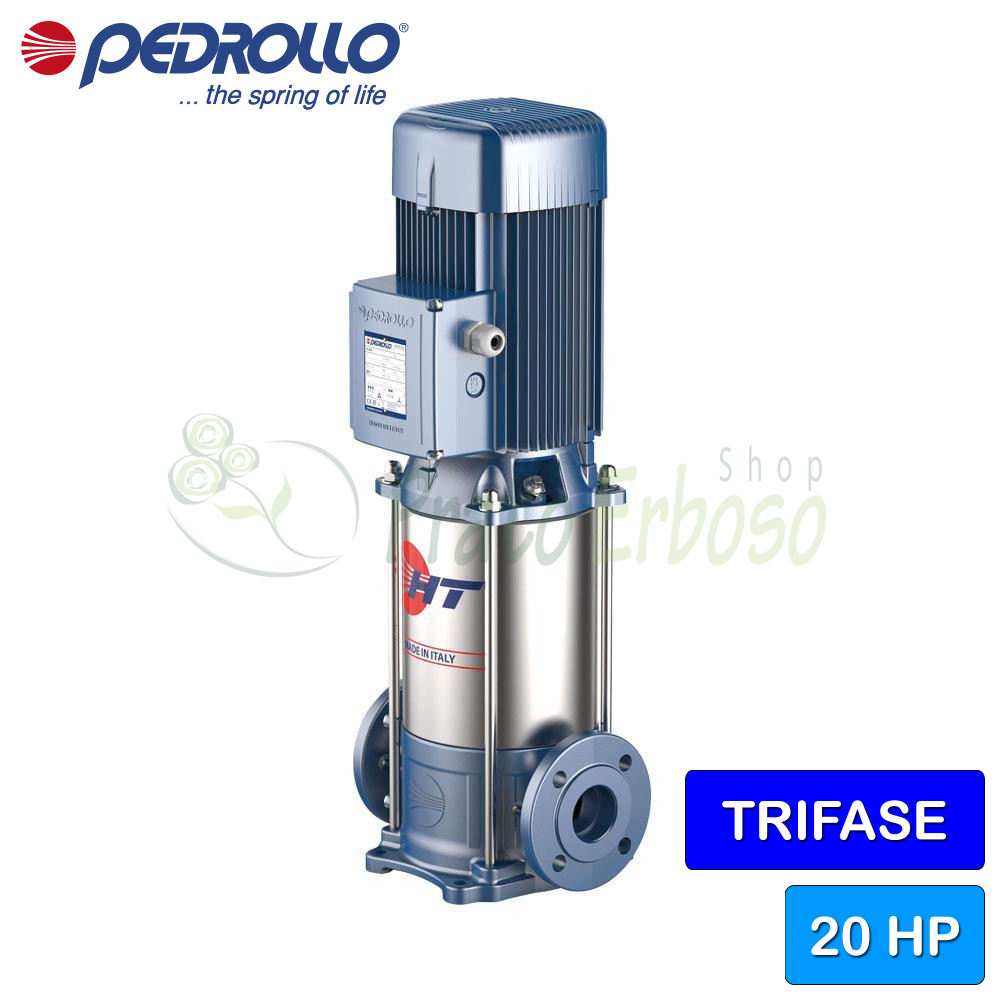

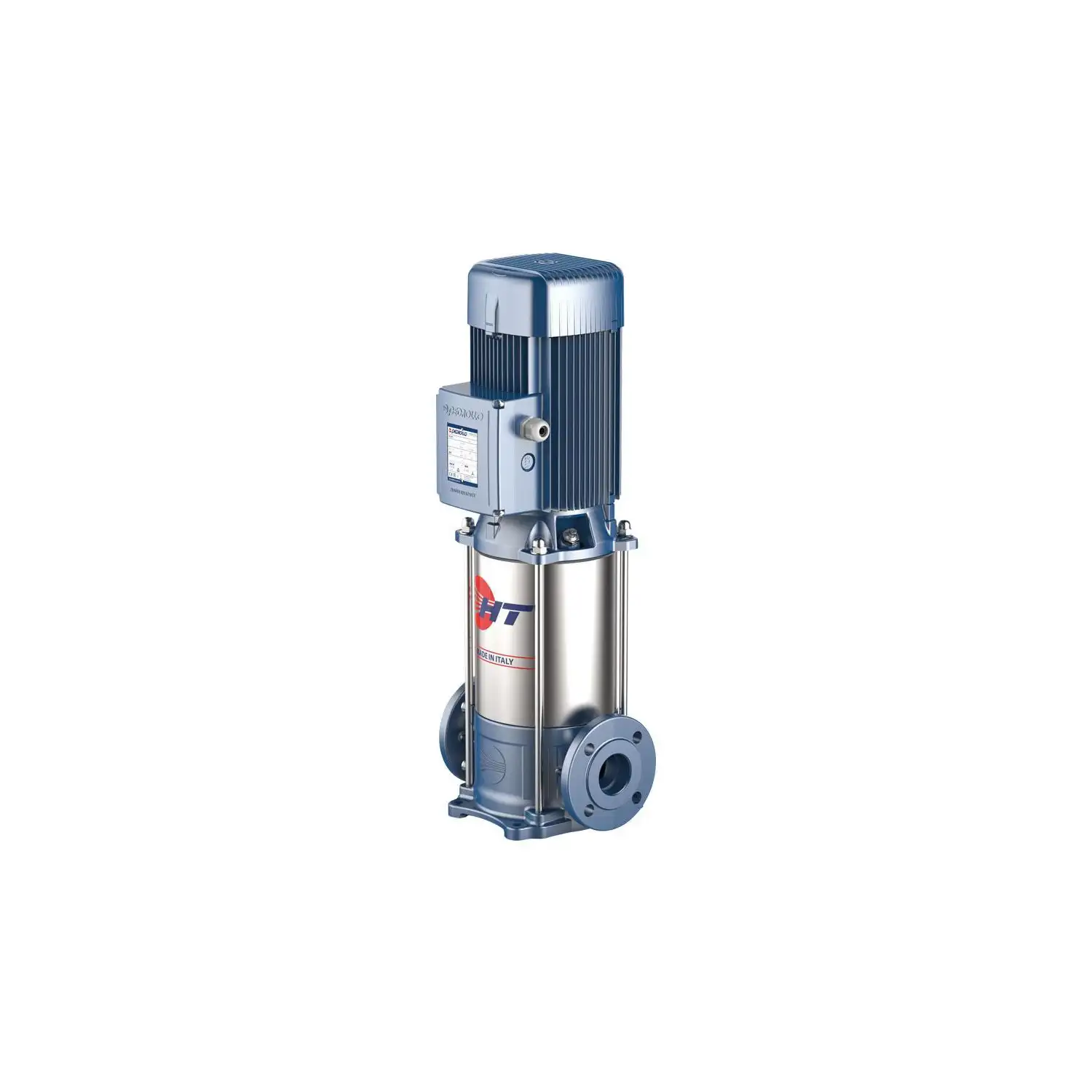

HT 30/7 - 20 HP three-phase vertical multistage electric pump
Flow rate up to 800 l/min (48 m³/h). Head up to 137 m. 15 kW (20 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The HT 30/7 centrifugal electric pump from the HT series by Pedrollo is particularly quiet.
Thanks to the multi-stage construction, operating noise is particularly low.
Recommended for use in the domestic, agricultural, civil and industrial sectors.
The HT 30/7 have been designed to guarantee high hydraulic performance combined with a robust, compact and reliable mechanical construction.
Pedrollo used stainless steel and ice for a solid result.
Stainless steel components ensure long life and high performance.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 15
- Power (HP)
- 20
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 27.5
- Max. head (m.)
- 137
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
HT 30 models and performances
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HT15/6-HT30/5-HT30/6 series
