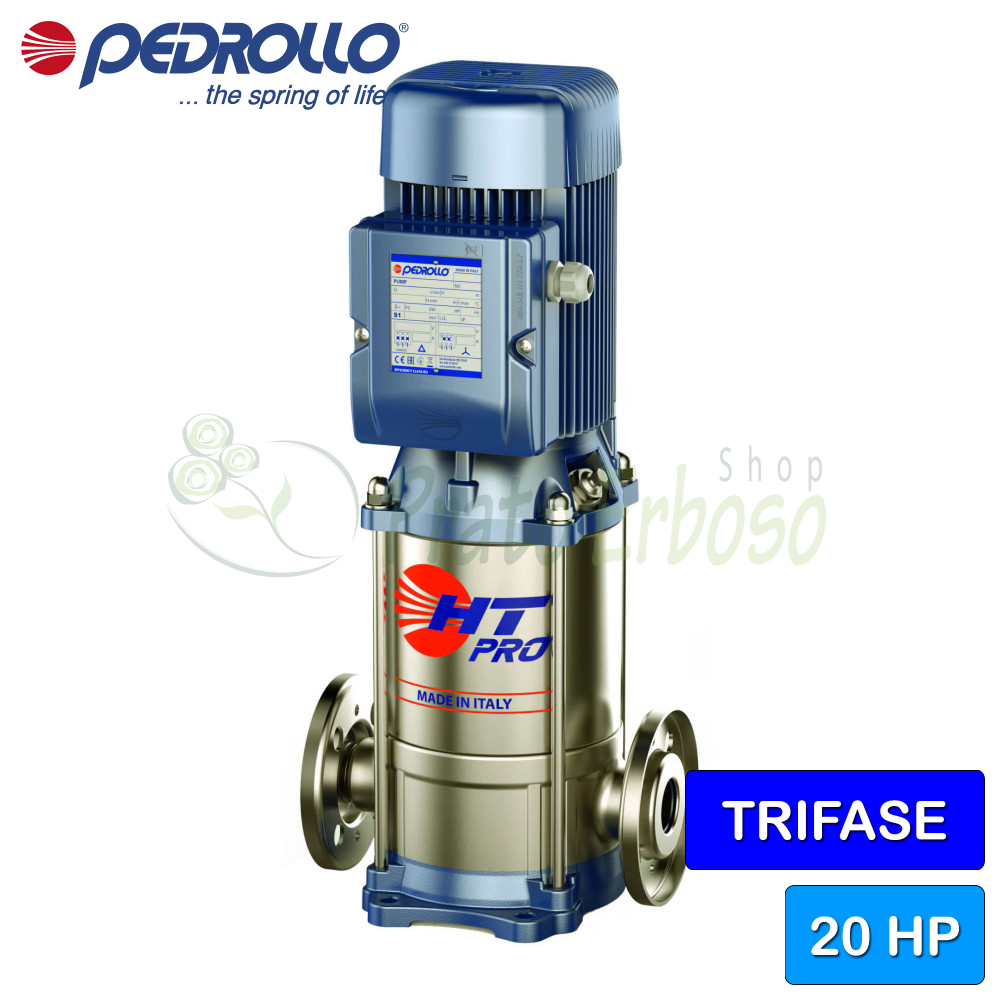

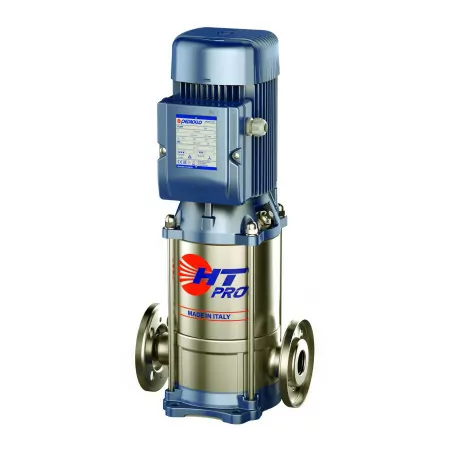

HT 30/7-PRO - 20 HP three-phase vertical multistage electric pump
Flow rate up to 800 l/min (5.4 m³/h). Head up to 137 m. 15 kW (20 HP) motor.
The HT 30/7-PRO centrifugal electric pump from the HT-PRO series by Pedrollo is recommended for use in the domestic, civil, agricultural and industrial sectors.
It can pump clean water and chemically non-aggressive liquids.
The HT 30/7-PRO stands out for its high performance and its great adaptability to various types of use.
Suitable for water distribution in conjunction with pressure tanks, for increasing network pressure, for fire-fighting systems and for washing systems and for irrigation.
Designed to ensure high hydraulic performance combined with a compact and reliable construction.
The jacket, impellers, diffusers, cover, pump body and motor shaft are made of stainless steel which guarantees high performance.
The stainless steel construction of the HT 30/7-PRO ensures a long life and a very low operating noise threshold.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 15
- Power (HP)
- 20
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 27.5
- Max. head (m.)
- 137
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
