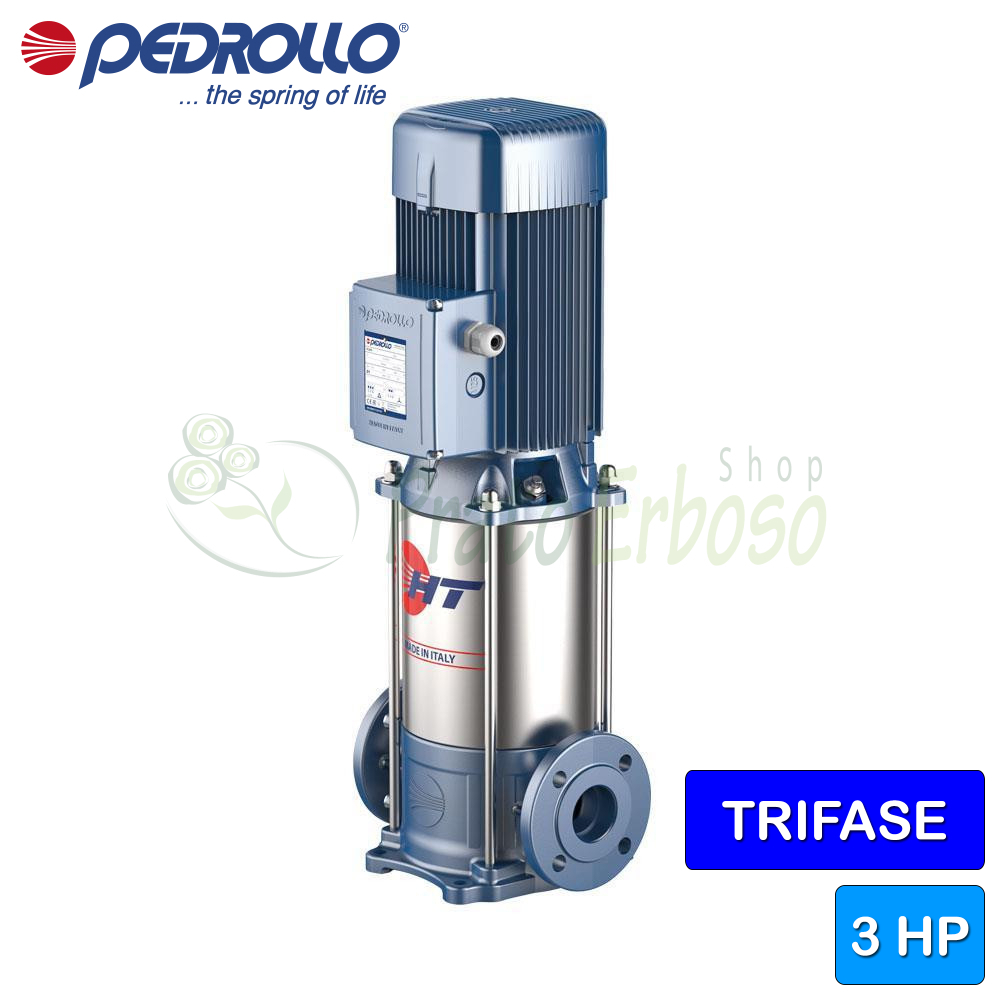

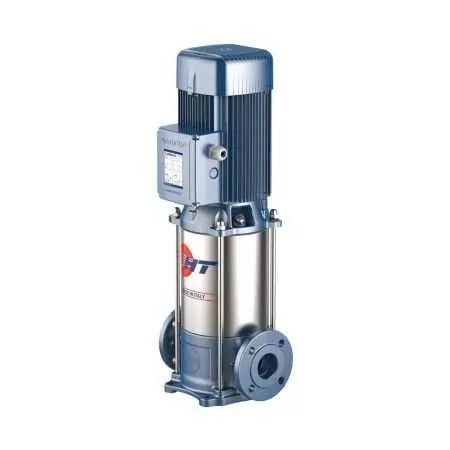

HT 5/6 - 3 HP three-phase vertical multistage electric pump
Flow rate up to 130 l/min (7.8 m³/h). Head up to 103 m. 2.2 Kw (3 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The HT 5/6 centrifugal electric pump from Pedrollo 's HT series can pump clean water and chemically non-aggressive liquids for the components.
It guarantees high performance combined with good reliability, making it an ideal choice in the domestic, civil, agricultural and industrial sectors.
It is particularly recommended for water distribution in conjunction with pressure tanks, for increasing network pressure, for fire-fighting systems and for washing systems and for irrigation.
Pedrollo used AISI 304 and 431 stainless steel to create the HT 5/6, which guarantees long life and high performance.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1" 1/4
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 62
- Max. head (m.)
- 103
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
HT 5 Models and Performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HT 5/6
Bearings
| Pump side motor bearing | 6307 2RS-C3 |
| Opposite side engine bearing | 6206 2RS-C3 |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 250 EN 1561 |
| 2.0 - Lid | Cast iron GJL 250 EN 1561 |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
