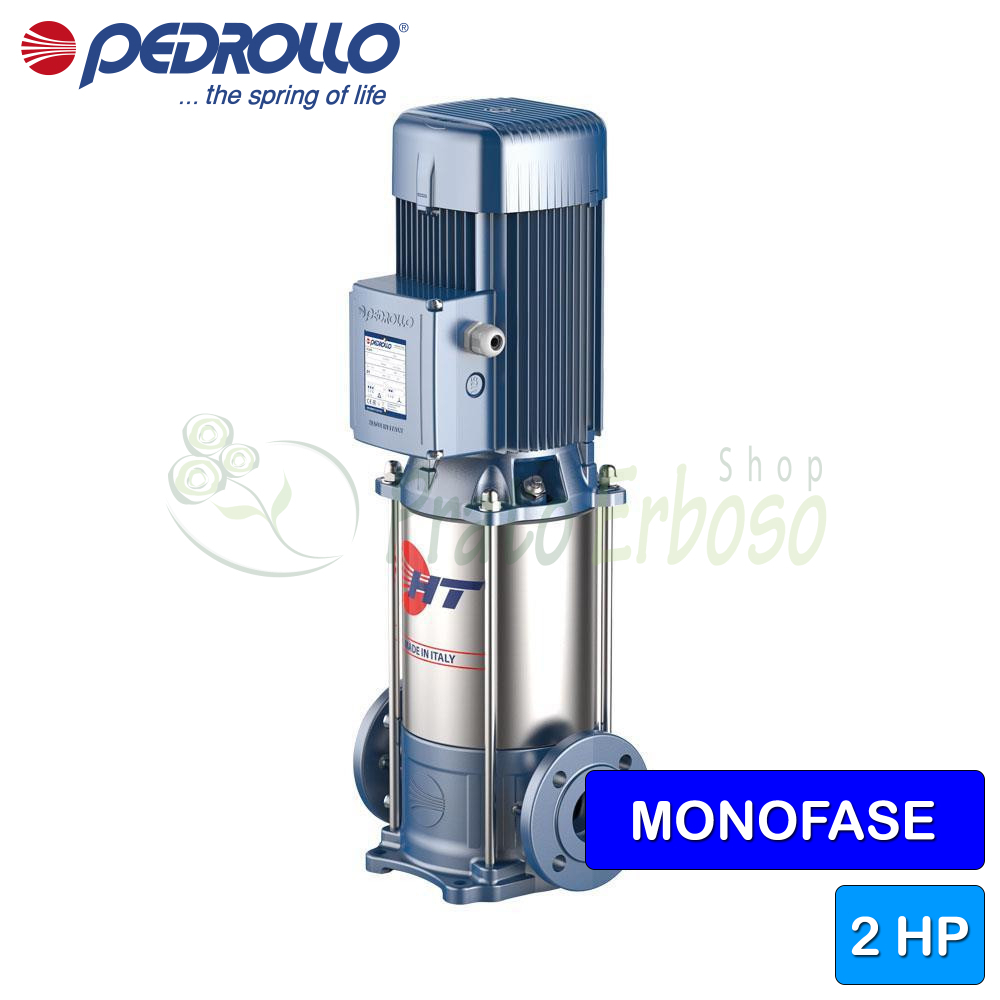

HTm 3/6 - 2 HP single-phase vertical multistage electric pump
Flow rate up to 90 l/min (5.4 m³/h). Head up to 97 m. 1.5 Kw (2 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The HTm 3/6 centrifugal electric pump from the HT series by Pedrollo is particularly quiet.
Thanks to the multi-stage construction, operating noise is particularly low.
Recommended for use in the domestic, agricultural, civil and industrial sectors.
The HTm 3/6 have been designed to guarantee high hydraulic performance combined with a robust, compact and reliable mechanical construction.
Pedrollo used stainless steel and ice for a solid result.
Stainless steel components ensure long life and high performance.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 90
- Min. head (m.)
- 52
- Max. head (m.)
- 97
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
HTM 3 models and performances
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Related Products
Those products may also interest you
From the same brand and category
Compare with Similar Products
 HTm 3/6 - 2 HP single-phase vertical multistage electric pumpThis product Flow rate up to 90 l/min (5.4 m³/h). Head up to 97 m. 1.5 Kw (2 HP) motor. |  MKm 3/6 - 2 HP single-phase vertical multistage electric pumpFlow rate up to 80 l/min (4.8 m³/h). Head up to 105 m. 1.5 Kw (2 HP) motor. |  FCRm 90/6 - 2 HP single-phase multi-impeller electric pumpFlow rate up to 90 l/min (5.4 m³/h). Head up to 96 m. 1.5 Kw (2 HP) motor. | |
|---|---|---|---|
| Price | Price €1,306.62 -45% €718.64 | Price €817.40 -42% €474.09 | Price €1,043.10 -45% €573.71 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 1.5 | Power (Kw) 1.5 | Power (Kw) -- |
| Power (HP) | Power (HP) 2 | Power (HP) 2 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) -- | Absorption at 230V (A) 10.5 |
| Capacitor | Capacitor -- | Capacitor 45 µF 450 VL | Capacitor 45 µF 450 VL |
| Suction mouth | Suction mouth 1" | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller Noryl | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 3 | Number of impellers 6 | Number of impellers 6 |
| Crankshaft | Crankshaft -- | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection -- | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 90 | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 90 |
| Min. head (m.) | Min. head (m.) 52 | Min. head (m.) 58 | Min. head (m.) 45 |
| Max. head (m.) | Max. head (m.) 97 | Max. head (m.) 105 | Max. head (m.) 96 |
| Jobs | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply | Jobs water supply, pressurization systems, irrigation, washing systems, fire prevention systems | Jobs irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +90°C |
| Height (cm) | Height (cm) -- | Height (cm) 53.1 | Height (cm) 22.8 |
| Width (cm) | Width (cm) -- | Width (cm) 18.5 | Width (cm) 52.3 |
| Depth (cm) | Depth (cm) -- | Depth (cm) 22.3 | Depth (cm) 18.5 |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) 22.9 | Weight (Kg) 21 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
