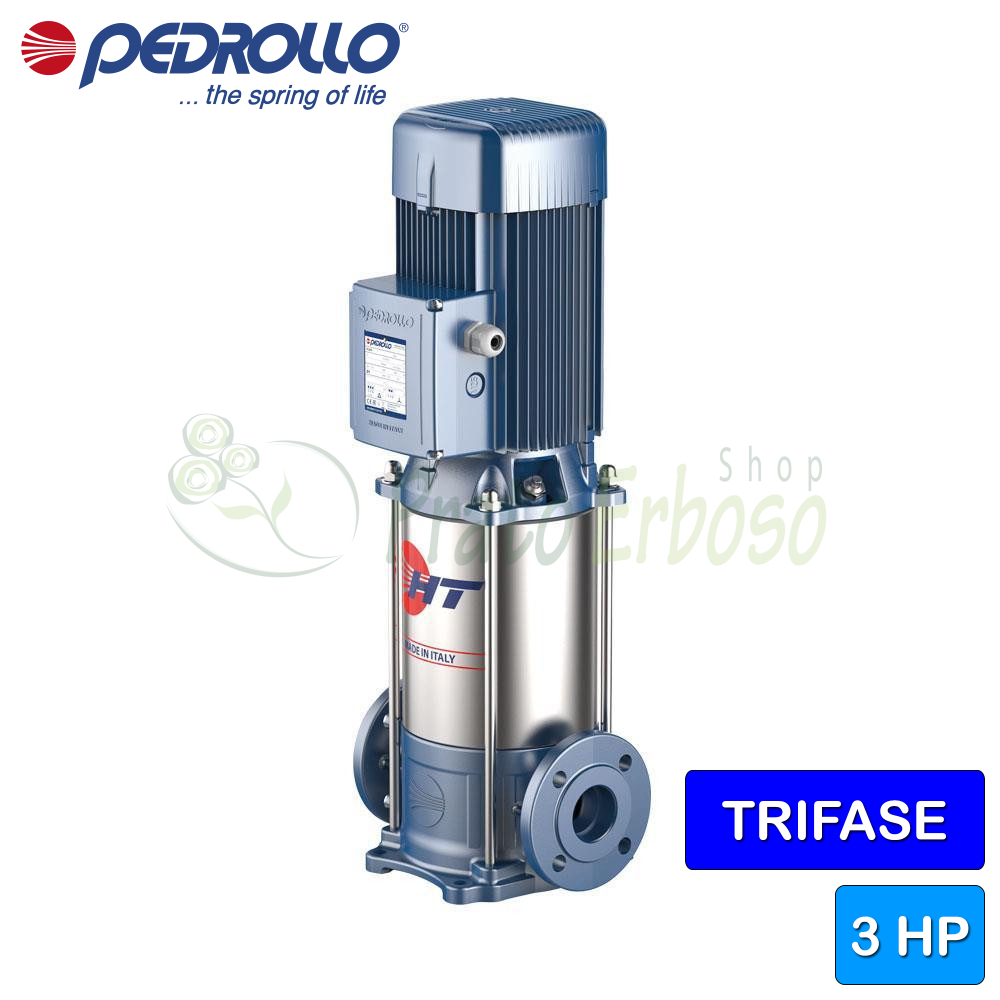

HT 3/8 - 3 HP three-phase vertical multistage electric pump
Flow rate up to 90 l/min (5.4 m³/h). Head up to 65 m. Motor 2.2 Kw (3 HP).
The Pedrollo HT 3/8 centrifugal electric pump is ideal for the civil, agricultural and industrial sectors.
Recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made
Pedrollo has designed this pump to guarantee high hydraulic performance combined with a robust, compact and reliable mechanical construction.
The HT 3/8 is recommended for water distribution in conjunction with pressure tanks, for increasing pressure in the network, for fire-fighting systems, for washing systems and for irrigation.
It must be powered by a three-phase voltage, has a horsepower of 3 HP and the temperature of the liquid to be pumped ranges from -15 degrees centigrade up to 90.
The flow rate ranges from 5 to 90 metres and the head from 64 to 130 litres.
The HT 3/8 is a solid and durable pump, as it has several stainless steel components and a multi-stage construction which also reduces noise.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 8
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 90
- Min. head (m.)
- 33
- Max. head (m.)
- 65
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Height (cm)
- 68.5
- Width (cm)
- 25.0
- Depth (cm)
- 25.7
- Weight (Kg)
- 47.2
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 HT 3/8 - 3 HP three-phase vertical multistage electric pumpThis product Flow rate up to 90 l/min (5.4 m³/h). Head up to 65 m. Motor 2.2 Kw (3 HP). |  2CP 25/16A - 3 HP three-phase twin-impeller centrifugal pumpFlow rate up to 160 l/min (9.6 m³/h). Head up to 68 m. 2.2 Kw (3 HP) motor. | |
|---|---|---|
| Price | Price €2,010.56 -45% €1,105.81 | Price €736.88 -45% €405.28 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 2.2 | Power (Kw) 2.2 |
| Power (HP) | Power (HP) 3 | Power (HP) 3 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) 9.2 |
| Current consumption at 400V (A) | Current consumption at 400V (A) -- | Current consumption at 400V (A) 5.3 |
| Suction mouth | Suction mouth 1" | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller Brass |
| Number of impellers | Number of impellers 8 | Number of impellers 2 |
| Crankshaft | Crankshaft -- | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve No | Check valve No |
| Degree of protection | Degree of protection -- | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 90 | Max. flow rate (l./min.) 160 |
| Min. head (m.) | Min. head (m.) 33 | Min. head (m.) 32 |
| Max. head (m.) | Max. head (m.) 65 | Max. head (m.) 68 |
| Jobs | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply | Jobs water supply, pressurization systems, fire prevention systems |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) +90°C |
| Height (cm) | Height (cm) 68.5 | Height (cm) 26.1 |
| Width (cm) | Width (cm) 25.0 | Width (cm) 22.5 |
| Depth (cm) | Depth (cm) 25.7 | Depth (cm) 40.4 |
| Weight (Kg) | Weight (Kg) 47.2 | Weight (Kg) 24.6 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
