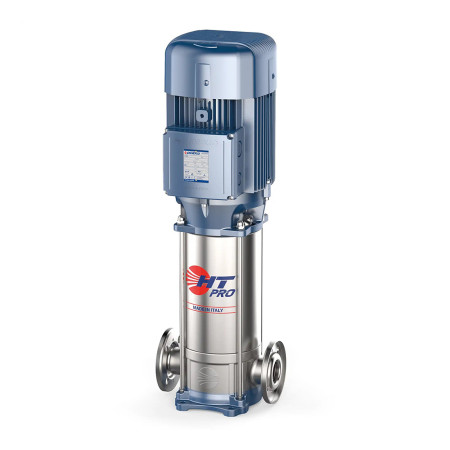

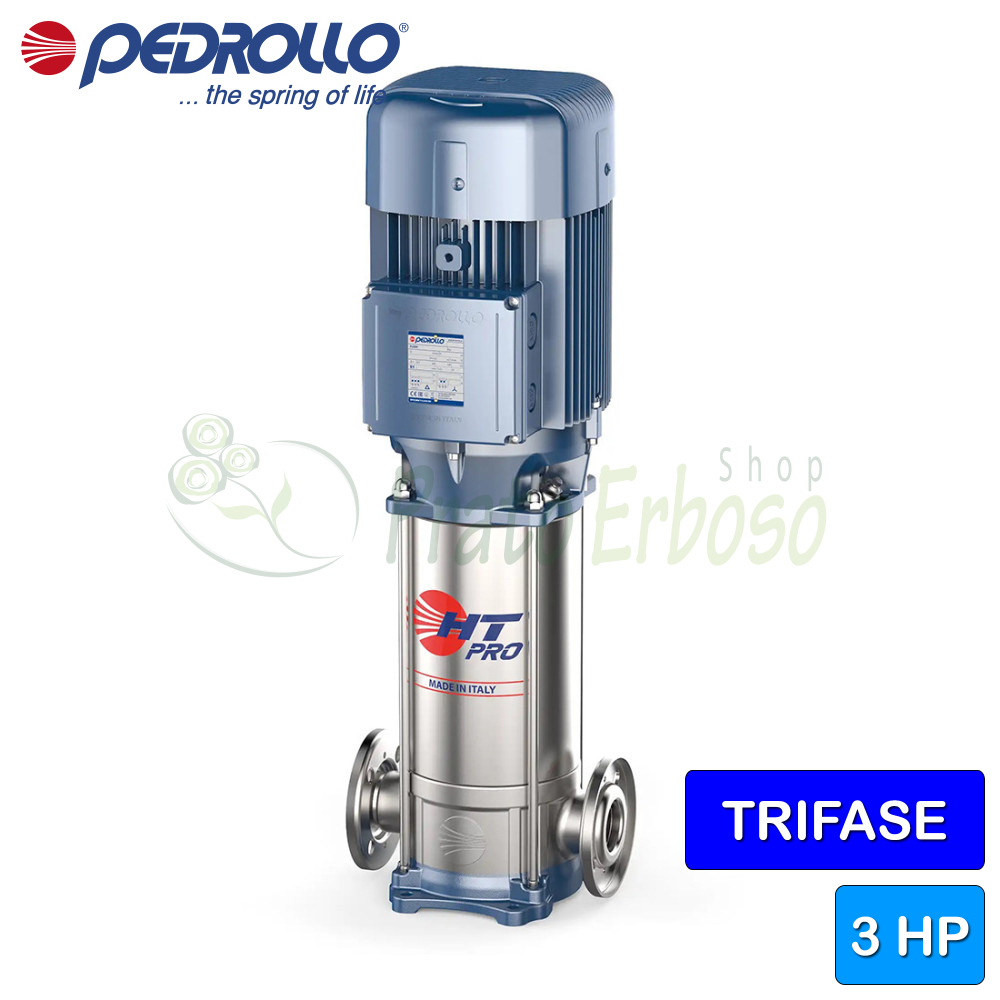

HT 3/8-PRO - 3 HP three-phase vertical multistage electric pump

Name: HT 3/8-PRO - 3 HP three-phase vertical multistage electric pump
Brand: Pedrollo
SKU: HT 3/8-PRO
Price: 1529.88 EUR
Availability: InStock

Flow rate up to 90 l/min (7.8 m³/h). Head up to 129 m. 2.2 Kw (3 HP) motor.

Variants:

Order it before 23:59 on Monday and receive it on Thursday 18 December with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 18 December - Friday 19 December
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 18 December - Friday 19 December
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Thursday 18 December - Friday 19 December
One Express - 2 giorni Italia	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Friday 19 December - Monday 22 December
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Thursday 18 December
Ritiro in negozio	Choose where to collect your order within 24/48 hours.	Thursday 18 December

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 18 December - Friday 19 December

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 18 December - Friday 19 December

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 18 December - Friday 19 December

Carrier: One Express - 2 giorni Italia

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 19 December - Monday 22 December

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 18 December

Carrier: Ritiro in negozio

Description: Choose where to collect your order within 24/48 hours.

Estimated delivery:
Thursday 18 December

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo HT 3/8-PRO centrifugal electric pump is ideal for the civil, agricultural and industrial sectors.

Recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

Pedrollo has designed this pump to guarantee high hydraulic performance combined with a robust, compact and reliable mechanical construction.

The HT 3/8-PRO is recommended for water distribution in conjunction with pressure tanks, for increasing network pressure, for fire-fighting systems, for washing systems and for irrigation.

It must be powered by a three-phase voltage, has a horsepower of 4 HP and the temperature of the liquid to be pumped ranges from -15 degrees centigrade up to 90.

The flow rate ranges from 5 to 90 metres and the head from 69.5 to 129 litres.

The HT 3/8-PRO is made of a multi-stage stainless steel construction ensuring a long life and a very low noise threshold in operation.

All pump components are made of stainless steel which guarantees long life and high performance.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 2.2
Power (HP): 3
Suction mouth: 1"
Delivery mouth: 1"
Pump body: Cast iron
Impeller: AISI 304 stainless steel
Number of impellers: 8
Check valve: No
Minimum flow rate (l./min.): 5
Max. flow rate (l./min.): 90
Min. head (m.): 69.5
Max. head (m.): 129
Jobs: fire prevention systems, washing systems, irrigation, pressurization systems, water supply
Height (cm): 68.5
Width (cm): 25.0
Depth (cm): 25.7
Weight (Kg): 45.2
Warranty (years): 2

Attachments

HT-PRO technical sheet

Construction and operating characteristics. Work curves, limits of use and dimensions of the Pedrollo HT-PRO series pumps.

Download (594.37KB)

Models and performance HT 3 - PRO

TYPE

single phase

HT 3/4 - PRO

HT 3/5 - PRO

HT 3/6 - PRO

HT 3/7 - PRO

HT 3/8 - PRO

HT 3/9 - PRO

HT 3/10 - PRO

POWER
KW	HP
0.75	1
1.1	1.5
1.5	2
1.8	2.5
2.2	3
3	4
3	4

PERFORMANCES
Q liters/min	H meters
5 ÷ 90	64 ÷ 30.5
5 ÷ 90	80 ÷ 38
5 ÷ 90	96 ÷ 45.5
5 ÷ 90	112 ÷ 53
5 ÷ 90	129 ÷ 69.5
5 ÷ 90	146 ÷ 78
5 ÷ 90	160 ÷ 87

MOUTH
asp.	send.
1"	1"

Q	m³/hour	0	0.3	0.6	1.2	2.4	3.6	4.8	5.4
Q	l/min	0	5	10	20	40	60	80	90
H	meters	64	63	61.5	59	53	45.5	36	30.5
		80	79	77	74	66.5	57	45	38
		96	94	92	89	80	68.5	54	45.5
		112	110	108	103	93	80	63	53
		129	128	127	124	114	100	81	69.5
		146	144	143	139	129	113	91	78
		-	160	159	155	143	125	102	87

Construction data of the HT 3 PRO series

Bearings

Pump side motor bearing	6304 2RS-C3
Opposite side engine bearing	6204 ZZ-C3E

Tree holding

Type of seal	Single Mechanical Seal
Shrinkage DN1=450 DN2=350	FN-18
LP diameter	18
LP fixed ring	Graphite
LP rotating ring	Ceramic
LP elastomer	NBR

Materials

1.0 - Pump body	Stainless steel EN 1.4301 (AISI 304)
2.0 - Lid	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Stainless steel EN 1.4301 (AISI 304)
4.0 - Pump shaft	Stainless steel EN 1.4404 (AISI 316L)
5.1 - Diffuser	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
