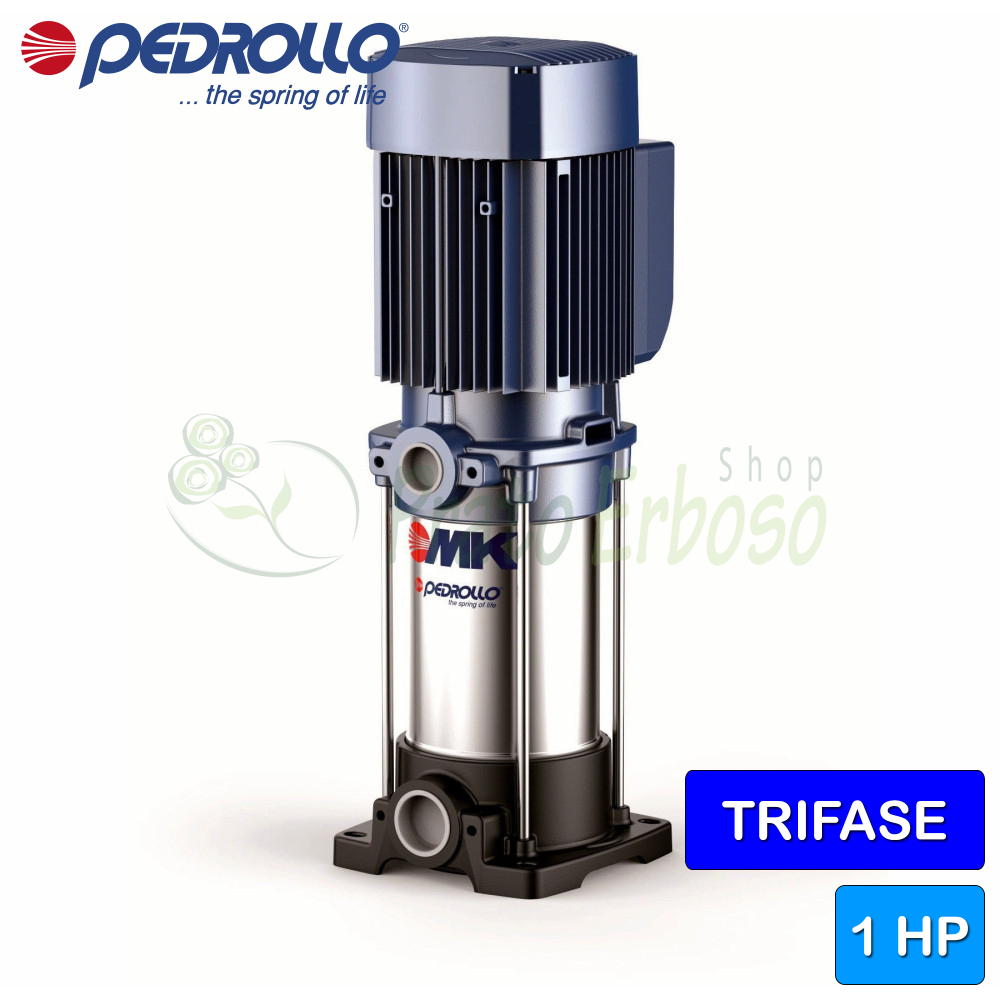

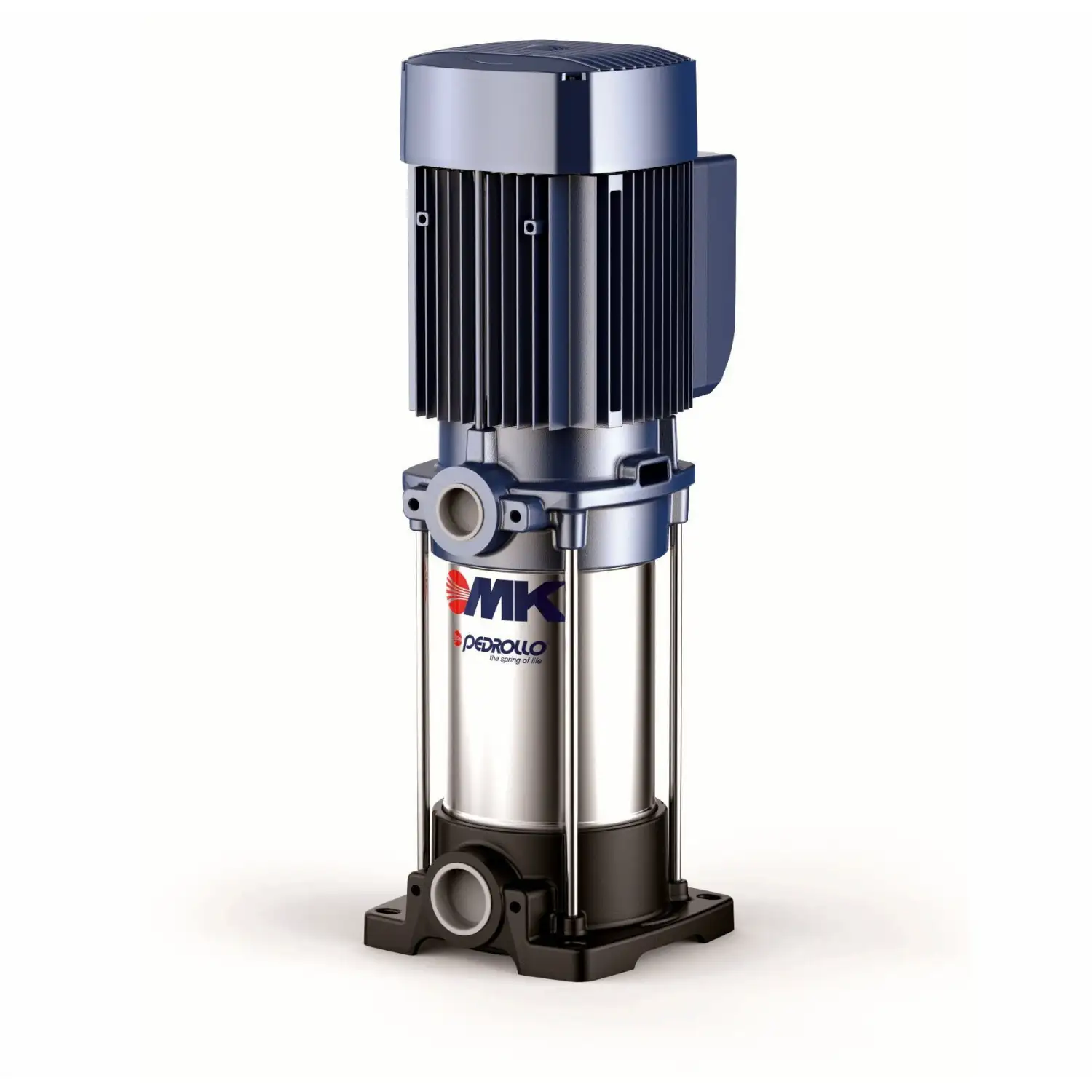

MK 5/4 - 1 HP three-phase vertical multistage electric pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 57 m. Motor 0.75 Kw (1 HP).
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The MK 5/4 multi-impeller centrifugal electric pump from the MK series by Pedrollo has a horsepower of 1 HP.
It requires three-phase power. The temperature of the liquid being pumped ranges from -10 degrees Celsius to +60 degrees Celsius.
The flow rate ranges from 10 to 120 meters and the head from 17 to 57 liters. The maximum pressure of the pump body is 11 bar .
The MK 5/4 are recommended for the agricultural, civil and domestic sectors.
Ideal for water supply, for the transfer of clean liquids, for the pressurization of domestic, civil and agricultural systems and for the irrigation of vegetable gardens and gardens.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.8
- Current consumption at 400V (A)
- 2.8
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 4
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 17
- Max. head (m.)
- 57
- Jobs
- water supply, pressurization systems, irrigation, washing systems, fire prevention systems
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 47.7
- Width (cm)
- 18.5
- Depth (cm)
- 22.3
- Weight (Kg)
- 19.6
- Warranty (years)
- 2
MK models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the MK series
Bearings
| Pump side motor bearing | 6304 ZZ |
| Opposite side engine bearing | 6204 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.1 - Suction Body | Cast iron GJL 200 EN 1561 |
| 1.2 - Pressing Body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Wear ring | PTFE |
| 5.3 - Diaphragm/Diffuser Cover | Stainless steel EN 1.4301 (AISI 304) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
