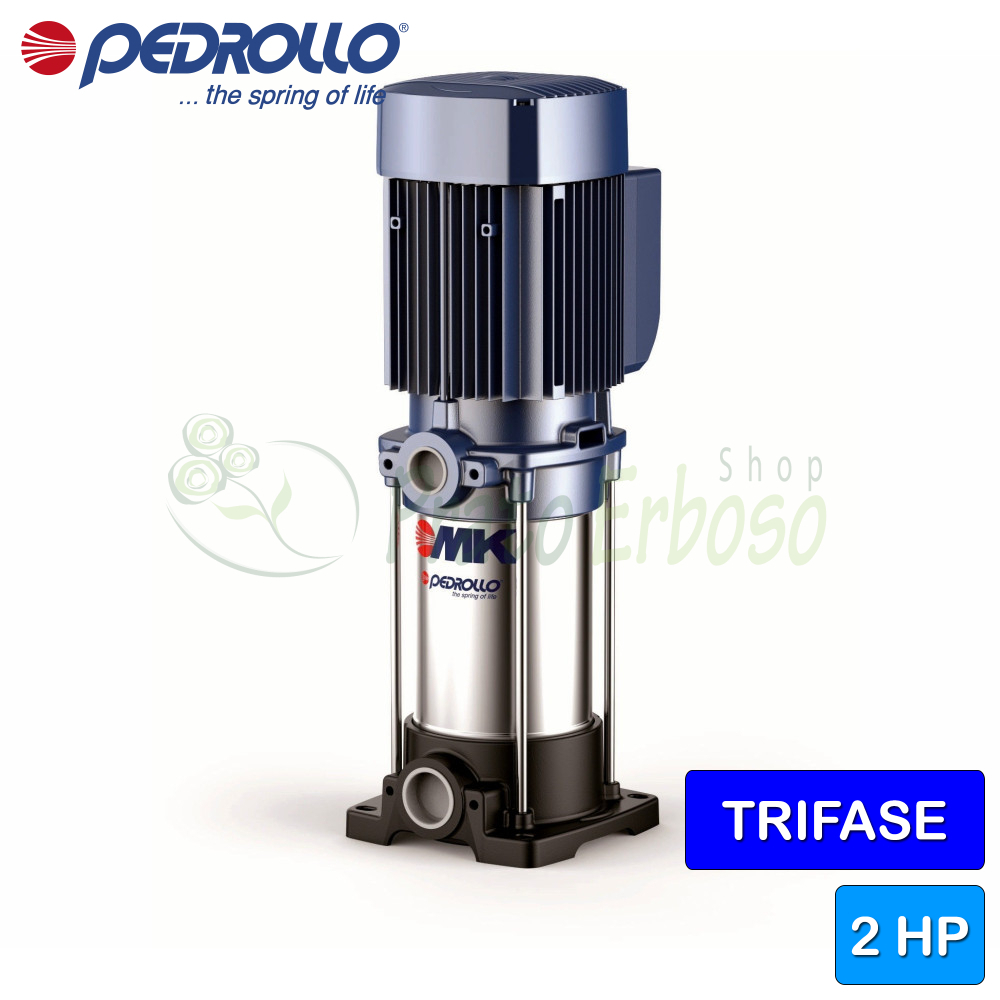

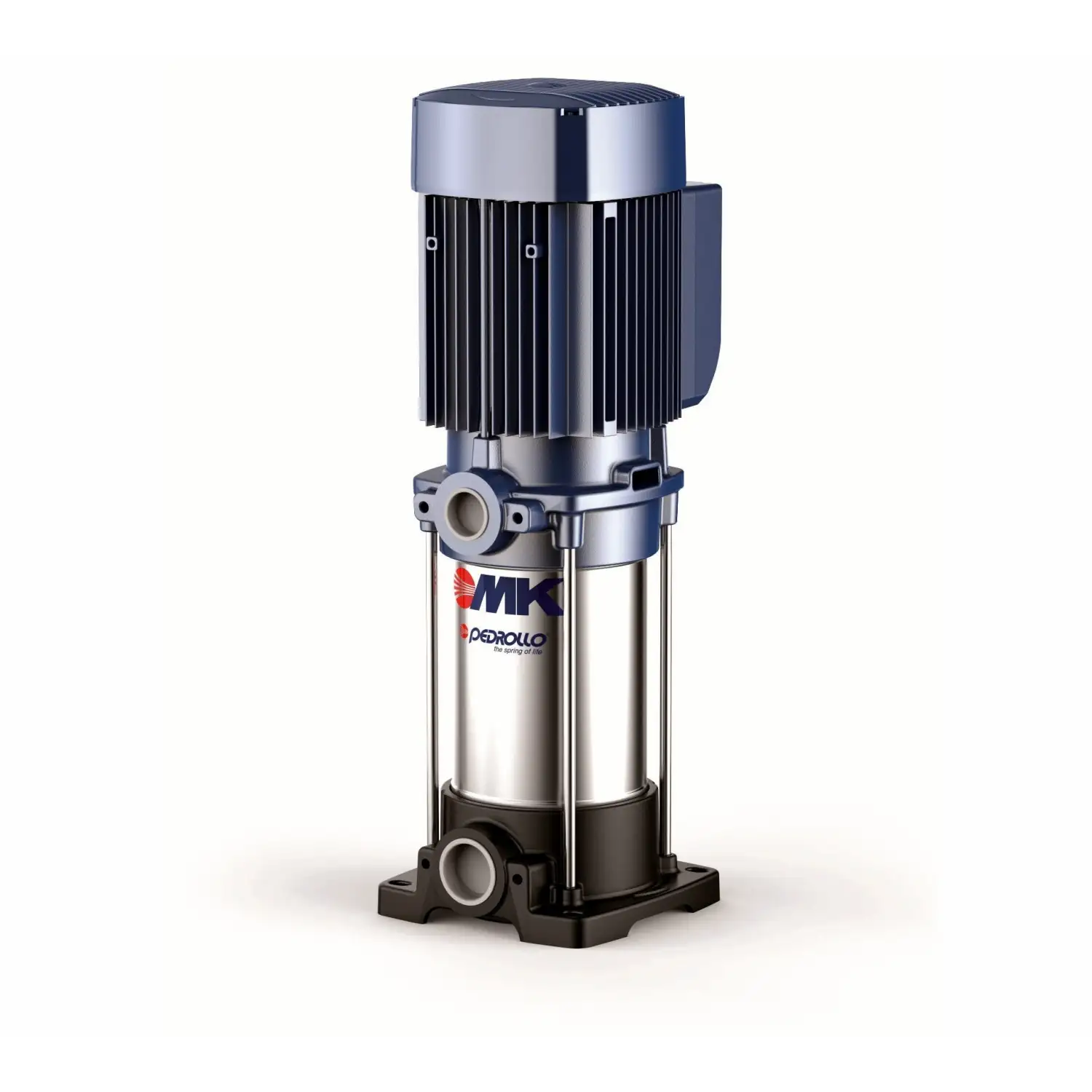

MK 8/5 - 2 HP three-phase vertical multistage electric pump
Flow rate up to 180 l/min (10.8 m³/h). Head up to 70 m. 1.5 Kw (2 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The MK 8/5 multi-impeller centrifugal electric pump from Pedrollo 's MK series can pump clean water and liquids that are chemically non-aggressive for the components.
Its compactness makes it suitable for the domestic sector but it is also recommended for the civil and agricultural sectors.
Reliable despite being a cheap pump.
The MK 8/5 is recommended for water supply, for the transfer of clean liquids, for the pressurization of domestic, civil and agricultural systems and for the irrigation of vegetable gardens and gardens.
To ensure resistance and solidity, Pedrollo used materials such as cast iron, stainless steel and noryl.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 6.1
- Current consumption at 400V (A)
- 3.5
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 5
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 40
- Max. flow rate (l./min.)
- 180
- Min. head (m.)
- 15.5
- Max. head (m.)
- 70
- Jobs
- water supply, pressurization systems, irrigation, washing systems, fire prevention systems
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 50.4
- Width (cm)
- 18.5
- Depth (cm)
- 22.3
- Weight (Kg)
- 22.4
- Warranty (years)
- 2
MK models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the MK series
Bearings
| Pump side motor bearing | 6304 ZZ |
| Opposite side engine bearing | 6204 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.1 - Suction Body | Cast iron GJL 200 EN 1561 |
| 1.2 - Pressing Body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Wear ring | PTFE |
| 5.3 - Diaphragm/Diffuser Cover | Stainless steel EN 1.4301 (AISI 304) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
