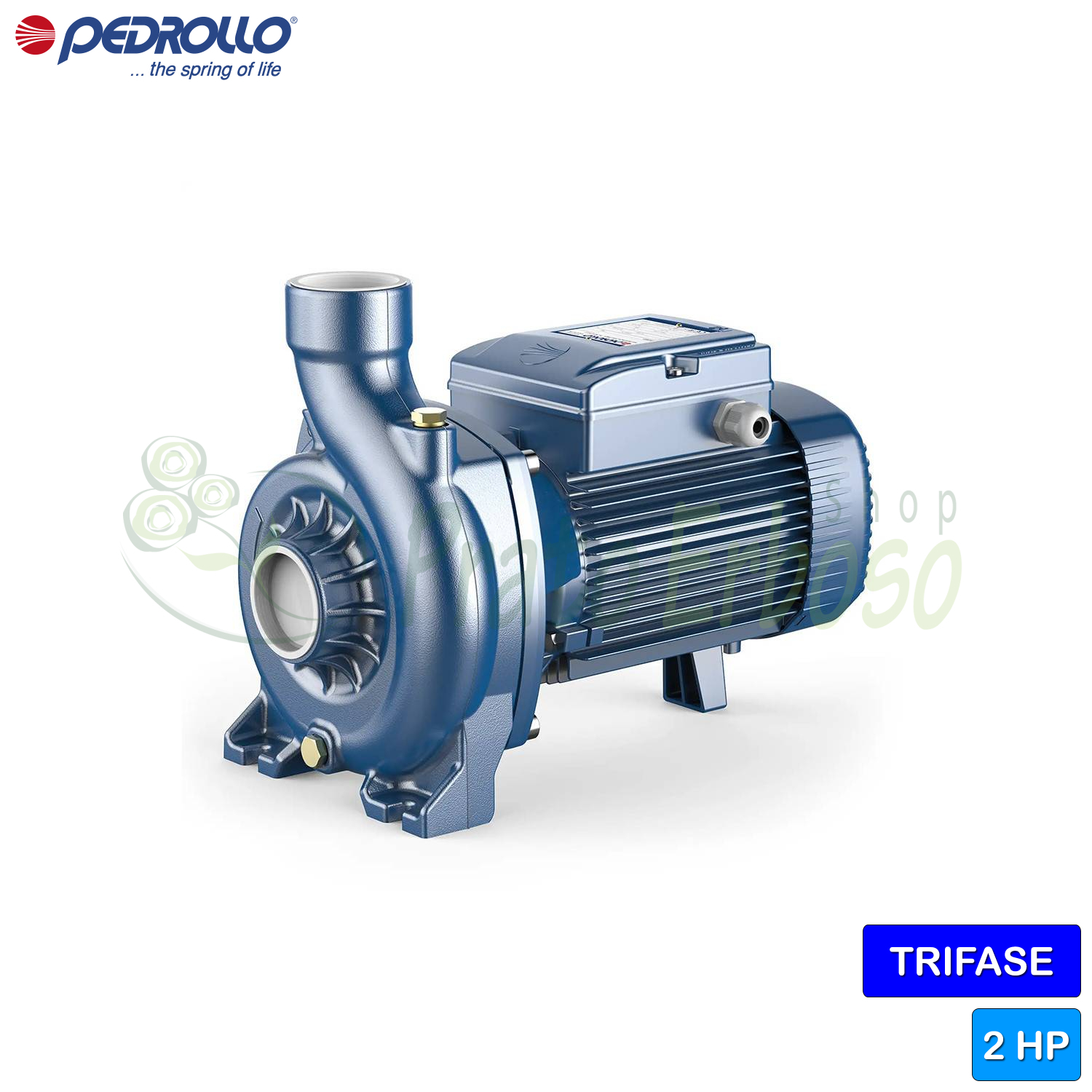

NGA 3C - 2 HP three-phase open impeller centrifugal electric pump
Flow rate up to 770 l/min (46 m³/h). Head up to 14.8 m. 1.5 Kw (2 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The Pedrollo NGA 3C centrifugal electric pump is recommended for pumping clean water and chemically non-aggressive liquids for components.
The main feature of this pump is its open impeller construction. This solution, developed by Pedrollo makes the NGA 3C suitable for pumping less than completely clean liquids.
It can be used for tasks such as transferring from canals, rivers, tanks, and basins. The impeller allows the passage of solids up to 12 millimeters.
Pedrollo has created a solid and robust product. The use of cast iron and stainless steel ensures the pump's longevity.
- Jobs
- washing systems, water supply
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Pump body
- Cast iron
- Impeller
- AISI 316 Stainless Steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 770
- Min. head (m.)
- 5.7
- Max. head (m.)
- 14.8
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Degree of protection
- IP 44
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, washing systems
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
Pump components and construction
- Pump body
- Cast iron
- Impeller
- AISI 316 Stainless Steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 770
- Min. head (m.)
- 5.7
- Max. head (m.)
- 14.8
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +90°C
Power supply and electrical parameters
- Motor voltage
- 230 V
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 2"
- Delivery mouth
- 2"
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 250 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 250 EN 1561 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
