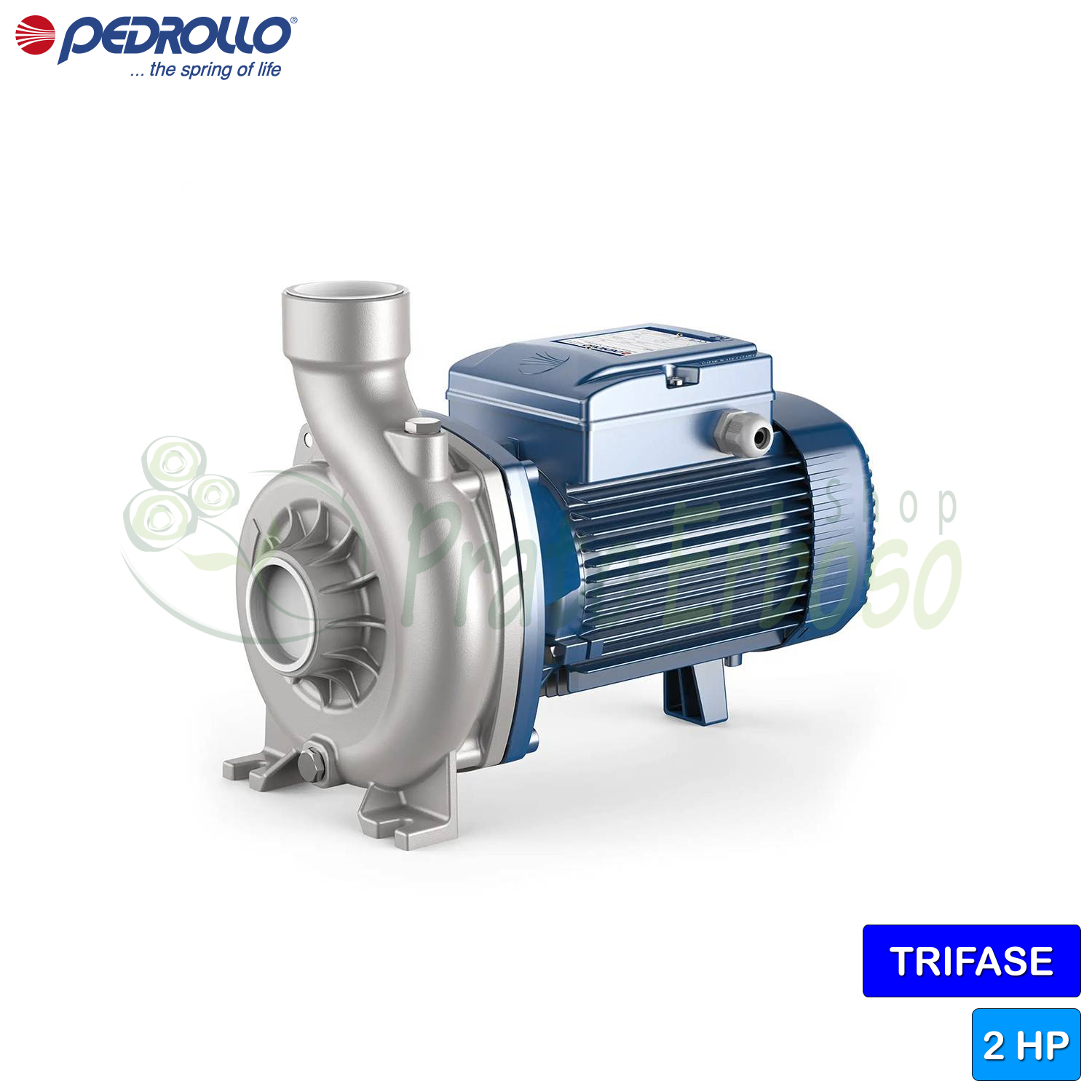

NGA 3C-PRO - 2 HP three-phase open impeller electric pump

Name: NGA 3C-PRO - 2 HP three-phase open impeller electric pump
Brand: Pedrollo
SKU: NGA 3C-PRO
Price: 798.17 EUR
Availability: InStock

Flow rate up to 770 l/min (46 m³/h). Head up to 14.8 m. 1.5 Kw (2 HP) motor.

Variants:

Order it before 23:59 and receive it on Thursday 22 October with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 22 October - Friday 23 October
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 22 October - Friday 23 October
One Express - 2 giorni Italia	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Friday 23 October - Monday 26 October
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Thursday 22 October

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 22 October - Friday 23 October

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 22 October - Friday 23 October

Carrier: One Express - 2 giorni Italia

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 23 October - Monday 26 October

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 22 October

There are no reviews yet

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo NGA 3C-PRO centrifugal electric pump is recommended for pumping clean water and chemically non-aggressive liquids for components.

The main feature of this pump is its open impeller construction. This solution, developed by Pedrollo makes the NGA 3C-PRO suitable for pumping less than completely clean liquids.

It can be used for tasks such as transferring from canals, rivers, tanks, and basins. The impeller allows the passage of solids up to 12 millimeters.

Pedrollo has built a solid and robust product. Made entirely of stainless steel, the pump is built to last.

Data sheet

Jobs: water supply, cooling systems, washing systems, water treatment plants
Motor connection: THREE-PHASE
Power (Kw): 1.5
Power (HP): 2
Pump body: AISI 316L stainless steel
Impeller: AISI 316L stainless steel
Number of impellers: 1
Crankshaft: AISI 316 stainless steel
Check valve: No
Minimum flow rate (l./min.): 100
Max. flow rate (l./min.): 770
Min. head (m.): 5.7
Max. head (m.): 14.8
Max. liquid temperature (°C): +90°C
Motor voltage: 400 V
Degree of protection: IP 44
Suction mouth: 2"
Delivery mouth: 2"
Weight (Kg): 21.9
Warranty (years): 2

Attachments

NGA-PRO data sheet

Construction and operating characteristics. Work curves, limits of use and dimensions of the Pedrollo NGA-PRO series pumps.

Download (499.41KB)

Data sheet

Use and formulation of products

Jobs: water supply, cooling systems, washing systems, water treatment plants

Engine and mechanical performance

Motor connection: THREE-PHASE
Power (Kw): 1.5
Power (HP): 2

Pump components and construction

Pump body: AISI 316L stainless steel
Impeller: AISI 316L stainless steel
Number of impellers: 1
Crankshaft: AISI 316 stainless steel
Check valve: No

Hydraulic performance and filtration

Minimum flow rate (l./min.): 100
Max. flow rate (l./min.): 770
Min. head (m.): 5.7
Max. head (m.): 14.8

Liquids and pumping conditions

Max. liquid temperature (°C): +90°C

Power supply and electrical parameters

Motor voltage: 400 V

Safety and protection

Degree of protection: IP 44

Installation and connections

Suction mouth: 2"
Delivery mouth: 2"

Dimensions and weight

Weight (Kg): 21.9

Packaging, maintenance, and warranty

Warranty (years): 2

NGA 2-3 Models and Performance - PRO

GUY

three-phase

NGA 2B - PRO

NGA 2A - PRO

NGA 3D - PRO

NGA 3C - PRO

NGA 3B - PRO

NGA 3A - PRO

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2
1.8	2.5
2.2	3

PERFORMANCE
Q litres/min	H meters
50 ÷ 450	9.5 ÷ 4
50 ÷ 550	11 ÷ 4
50 ÷ 700	12.5 ÷ 5
100 ÷ 770	14.8 ÷ 5.7
100 ÷ 840	17 ÷ 7
100 ÷ 900	19.5 ÷ 8.5

MOUTH
wait.	send.
1/2"	1/2"
2"	2"

Q	m³/hour	0	3	6	12	18	24	27	33	42	46.2	50.4	54
Q	l/min	0	50	100	200	300	400	450	550	700	770	840	900
H	meters	9.5	9.4	9.3	8.4	7	5.2	4
		11	10.8	10.5	9.8	8.8	7.4	6.4	4
		12.5	-	12	11.5	10.8	9.8	9.3	7.8	5
		14.8	-	14.4	13.8	13.1	12.2	11.7	10.3	7.4	5.7
		17	-	16.5	16	15.3	14.5	14	12.8	10.3	8.8	7
		19.5	-	19	18.4	17.8	17	16.5	15.4	13	11.5	10	8.5

Construction data of the NGA 3D-PRO-3C-PRO-3B-PRO-3A

Bearings

Pump side motor bearing	6204 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-18 V6
LP diameter	18
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	Viton

Mat

1.0 - Pump Body	EN 14401 stainless steel (AISI 316)
2.1 - Seal holder cover	EN 14401 stainless steel (AISI 316)
3.0 - Impeller	EN 14401 stainless steel (AISI 316)
4.0 - Pump shaft	EN 1.4404 stainless steel (AISI 316L)
6.0 - Motor holder	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
