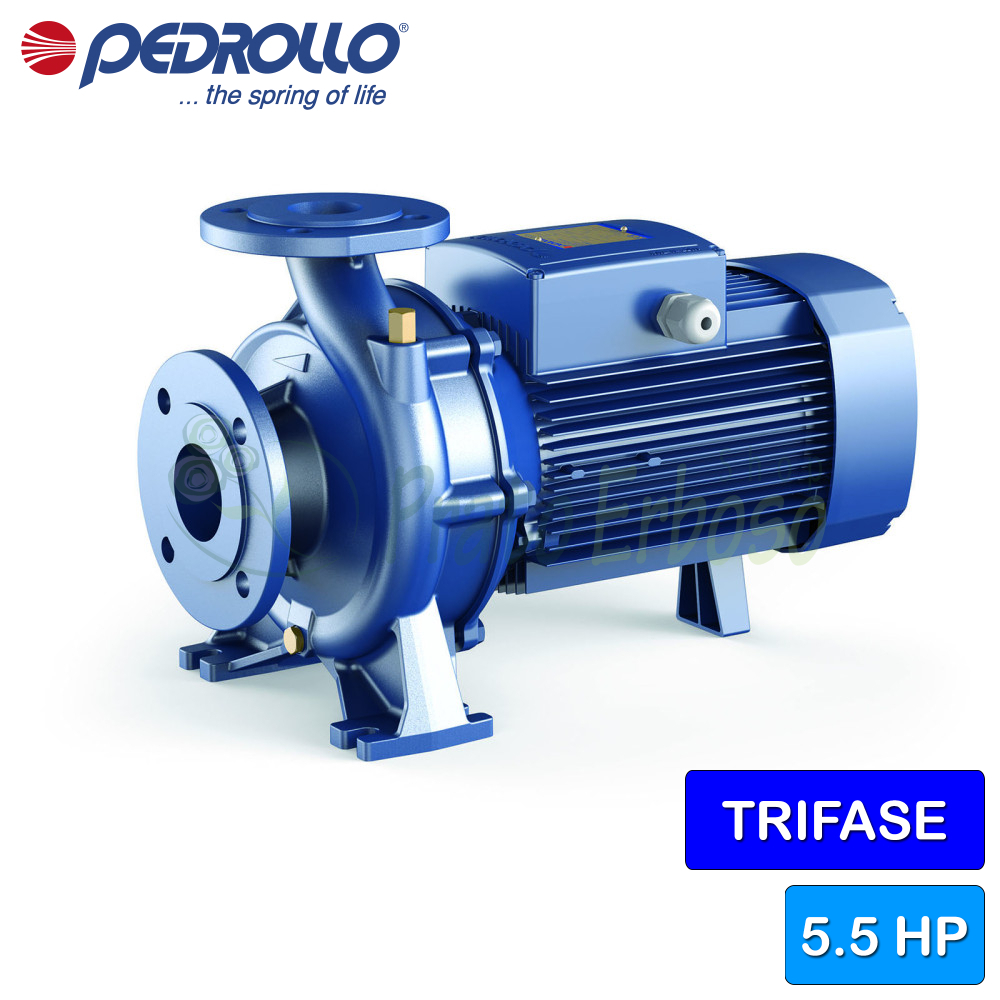

F 32/200AH - 5.5 HP three-phase standard centrifugal electric pump
Flow rate up to 320 l/min (19.2 m³/h). Head up to 57 m. 4 kW (5.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Monday 16 March - Tuesday 17 March |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Monday 16 March - Tuesday 17 March |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Monday 16 March - Tuesday 17 March |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 19 March - Monday 23 March |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 13 March |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 16 March - Tuesday 17 March
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 16 March - Tuesday 17 March
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 16 March - Tuesday 17 March
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 19 March - Monday 23 March
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 13 March
The standardized centrifugal electric pump F 32/200AH of the F series by Pedrollo is built in compliance with EN733 standards.
Compliance with the standard makes it easy to replace flanges and the motor.
It can pump clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The F 32/200AH is flexible and suitable for a wide variety of uses. It is recommended for tasks such as pressurization, irrigation, and water circulation in air conditioning systems.
Solid and robust, it resists stress and wear thanks to Pedrollo 's use of cast iron and brass.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 4
- Power (HP)
- 5.5
- Absorption at 230V (A)
- 15.4
- Current consumption at 400V (A)
- 8.9
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/4
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 320
- Min. head (m.)
- 44
- Max. head (m.)
- 57
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 34
- Width (cm)
- 46.9
- Depth (cm)
- 24.5
- Weight (Kg)
- 45.8
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6307 ZZ-C3 |
| Opposite side engine bearing | 6206 ZZ-C3 |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-24 |
| LP diameter | 24 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 6.1 - Engine cover | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
