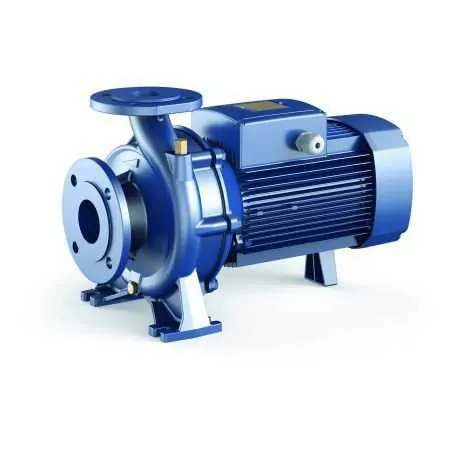

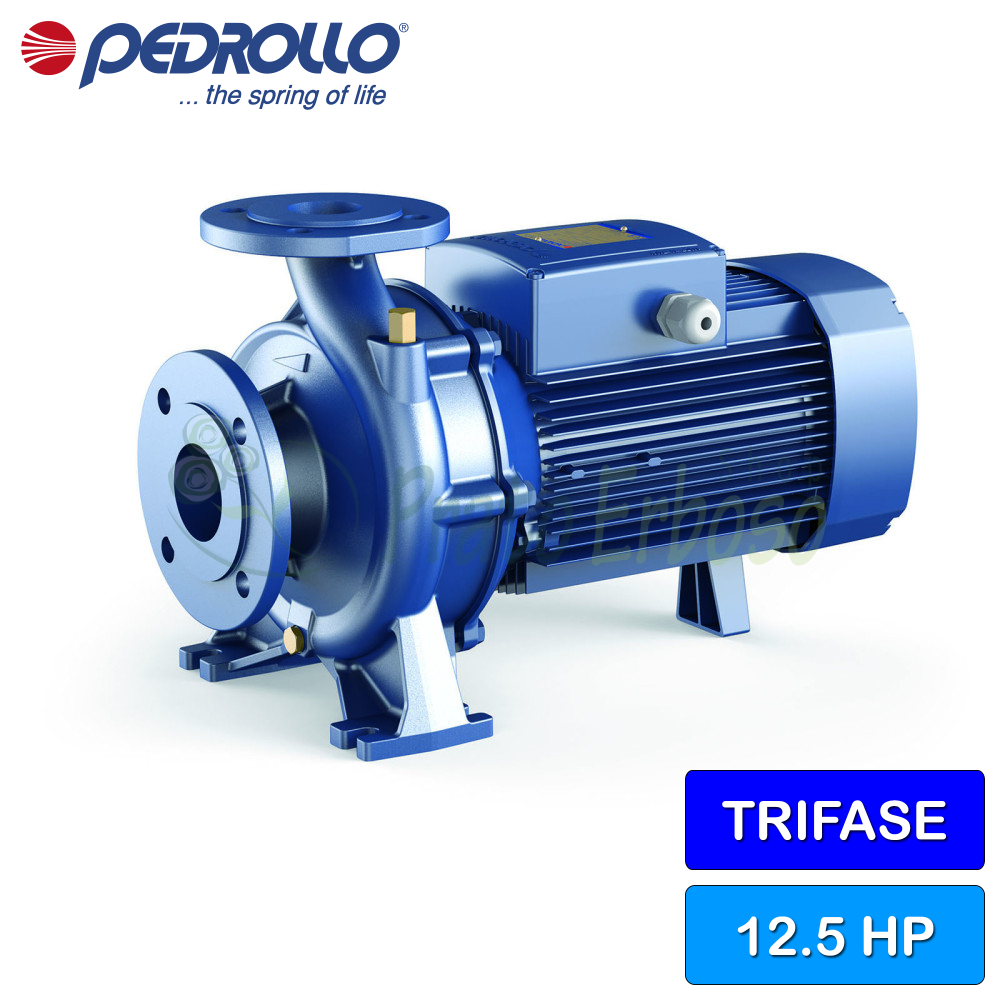

F 32/250C - 12.5 HP three-phase standard centrifugal electric pump
Flow rate up to 400 l/min (24 m³/h). Head up to 76 m. 9.2 kW (12.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Monday 16 March - Tuesday 17 March |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Monday 16 March - Tuesday 17 March |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Monday 16 March - Tuesday 17 March |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 19 March - Monday 23 March |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 13 March |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 16 March - Tuesday 17 March
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 16 March - Tuesday 17 March
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 16 March - Tuesday 17 March
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 19 March - Monday 23 March
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 13 March
The F 32/250C standardized centrifugal electric pump from the F series by Pedrollo is recommended for civil and industrial installations.
It can pump clean water without abrasive parts and chemically non-aggressive liquids for the components.
Suitable for water supply, pressurization, irrigation, and water circulation in air conditioning systems. It is also effective in washing and fire-fighting systems.
The crankshaft is made of AISI 431 stainless steel, the pump body and impeller are made of cast iron and brass.
The F 32/250C is a reliable, efficient and robust monoblock.
- Motor connection
- THREE-PHASE
- Power (HP)
- 12.5
- Current consumption at 400V (A)
- 17.2
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/4
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 450
- Min. head (m.)
- 60
- Max. head (m.)
- 76
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 40.5
- Width (cm)
- 60.6
- Depth (cm)
- 32
- Weight (Kg)
- 105.5
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6310 ZZ-C3 |
| Opposite side engine bearing | 6308 ZZ-C3 |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-38 |
| LP diameter | 38 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 6.1 - Engine cover | EN-AB 46100 aluminium |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
Compare with Similar Products
 F 32/250C - 12.5 HP three-phase standard centrifugal electric pumpThis product Flow rate up to 400 l/min (24 m³/h). Head up to 76 m. 9.2 kW (12.5 HP) motor. |  F 32/200AH - 5.5 HP three-phase standard centrifugal electric pumpFlow rate up to 320 l/min (19.2 m³/h). Head up to 57 m. 4 kW (5.5 HP) motor. |  F 32/250B - 15 HP three-phase standard centrifugal electric pumpFlow rate up to 450 l/min (27 m³/h). Head up to 88 m. 11 kW (15 HP) motor. |  F 32/250A - 20 HP three-phase standard centrifugal electric pumpFlow rate up to 480 l/min (28.8 m³/h). Head up to 98 m. 15 kW (20 HP) motor. | |
|---|---|---|---|---|
| Price | Price €2,807.22 -45% €1,543.97 | Price €1,268.80 -45% €697.84 | Price €2,807.22 -45% €1,543.97 | Price €2,940.20 -45% €1,617.11 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) -- | Power (Kw) 4 | Power (Kw) 11 | Power (Kw) 15 |
| Power (HP) | Power (HP) 12.5 | Power (HP) 5.5 | Power (HP) 15 | Power (HP) 20 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) 15.4 | Absorption at 230V (A) -- | Absorption at 230V (A) -- |
| Current consumption at 400V (A) | Current consumption at 400V (A) 17.2 | Current consumption at 400V (A) 8.9 | Current consumption at 400V (A) 21 | Current consumption at 400V (A) 27 |
| Suction mouth | Suction mouth 2" | Suction mouth 2" | Suction mouth 2" | Suction mouth 2" |
| Delivery mouth | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Cast iron | Impeller Brass | Impeller Cast iron | Impeller Cast iron |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 450 | Max. flow rate (l./min.) 320 | Max. flow rate (l./min.) 500 | Max. flow rate (l./min.) 500 |
| Min. head (m.) | Min. head (m.) 60 | Min. head (m.) 44 | Min. head (m.) 70 | Min. head (m.) 80 |
| Max. head (m.) | Max. head (m.) 76 | Max. head (m.) 57 | Max. head (m.) 88 | Max. head (m.) 98 |
| Jobs | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C |
| Height (cm) | Height (cm) 40.5 | Height (cm) 34 | Height (cm) 40.5 | Height (cm) 40.5 |
| Width (cm) | Width (cm) 60.6 | Width (cm) 46.9 | Width (cm) 60.6 | Width (cm) 70.1 |
| Depth (cm) | Depth (cm) 32 | Depth (cm) 24.5 | Depth (cm) 33 | Depth (cm) 32 |
| Weight (Kg) | Weight (Kg) 105.5 | Weight (Kg) 45.8 | Weight (Kg) 10.32 | Weight (Kg) 120 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
