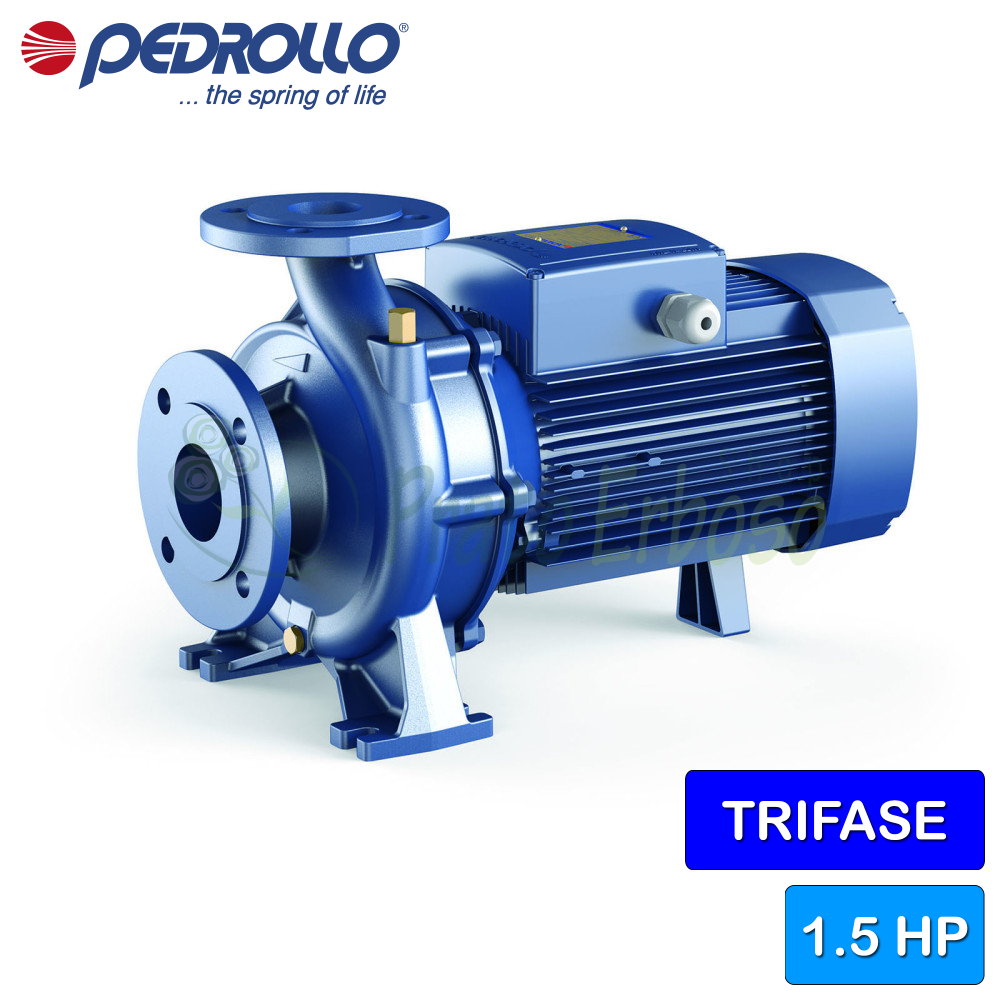

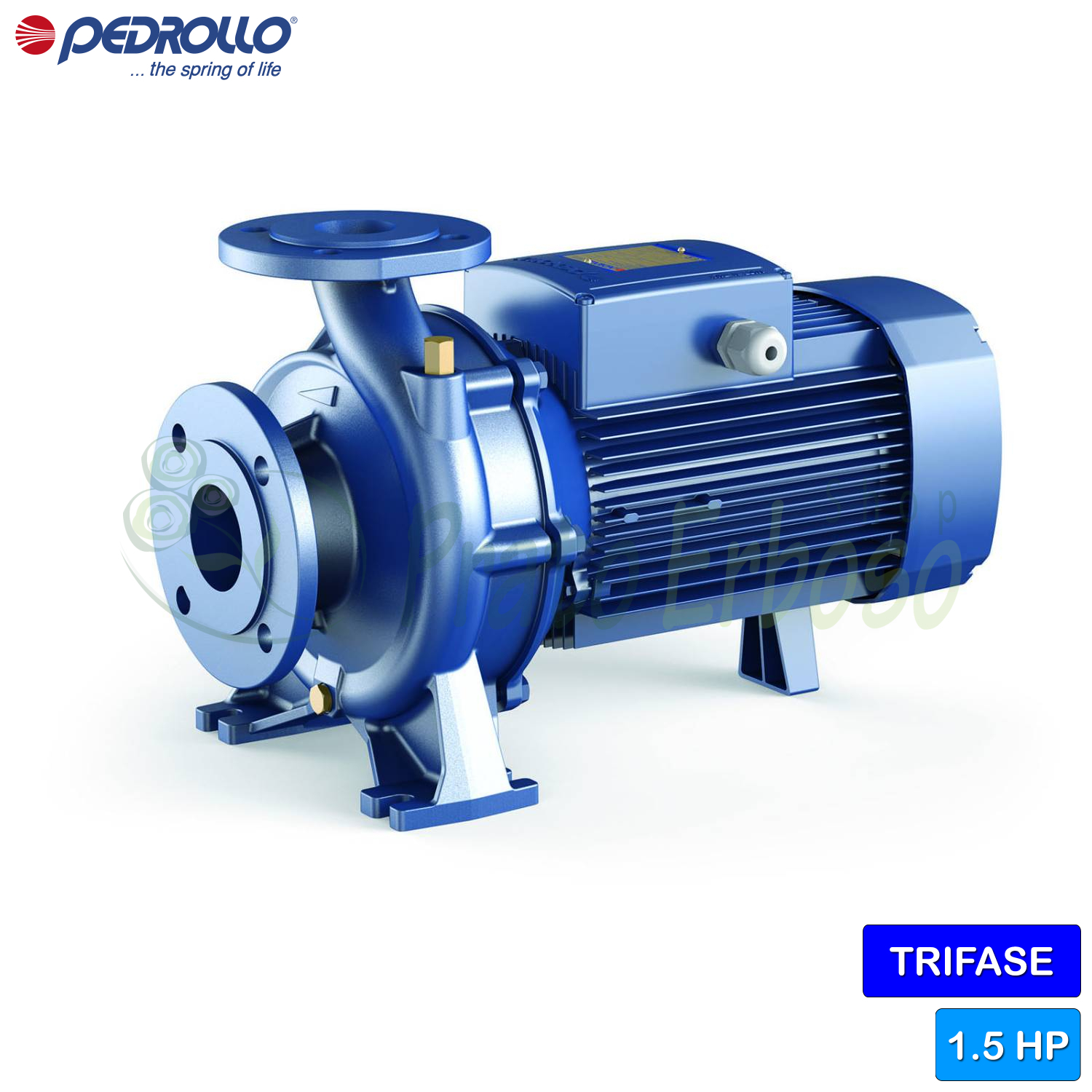

F 40/125C - 1.5 HP three-phase standard centrifugal electric pump
Flow rate up to 550 l/min (33 m³/h). Head up to 16 m. 1.1 kW (1.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Monday 16 March - Tuesday 17 March |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Monday 16 March - Tuesday 17 March |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Monday 16 March - Tuesday 17 March |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 19 March - Monday 23 March |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 13 March |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 16 March - Tuesday 17 March
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 16 March - Tuesday 17 March
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 16 March - Tuesday 17 March
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 19 March - Monday 23 March
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 13 March
The standardized centrifugal electric pump F 40/125C of the F series by Pedrollo can pump clean water and chemically non-aggressive liquids for the components.
Recommended for use in the civil and industrial sectors.
Suitable for a wide variety of uses such as water supply, pressurization, irrigation and water circulation in air conditioning systems.
The F 40/125C stands out not only for its flexibility but also for its compliance with EN733 standards.
Replacing the flanges and motor is quick and easy thanks to the construction according to the EN733 standard.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 5.7
- Current consumption at 400V (A)
- 3.3
- Suction mouth
- 2" 1/2
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 550
- Min. head (m.)
- 6
- Max. head (m.)
- 16
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 25.2
- Width (cm)
- 42.1
- Depth (cm)
- 24.4
- Weight (Kg)
- 29.9
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6206 ZZ-C3 |
| Opposite side engine bearing | 6204 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-20 |
| LP diameter | 20 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 6.1 - Engine cover | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
Compare with Similar Products
 F 40/125C - 1.5 HP three-phase standard centrifugal electric pumpThis product Flow rate up to 550 l/min (33 m³/h). Head up to 16 m. 1.1 kW (1.5 HP) motor. |  F 40/125B - 2 HP three-phase standard centrifugal electric pumpFlow rate up to 600 l/min (36 m³/h). Head up to 20.5 m. 1.5 kW (2 HP) motor. |  F 40/125A - 3 HP three-phase standard centrifugal electric pumpFlow rate up to 700 l/min (42 m³/h). Head up to 26 m. 2.2 Kw (3 HP) motor. |  F 40/160C - 3 HP three-phase standard centrifugal electric pumpFlow rate up to 600 l/min (36 m³/h). Head up to 27 m. 2.2 Kw (3 HP) motor. | |
|---|---|---|---|---|
| Price | Price €943.06 -45% €518.68 | Price €974.78 -45% €536.13 | Price €1,017.48 -45% €559.61 | Price €993.08 -45% €546.19 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 1.5 | Power (Kw) 2.2 | Power (Kw) 2.2 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 2 | Power (HP) 3 | Power (HP) 3 |
| Absorption at 230V (A) | Absorption at 230V (A) 5.7 | Absorption at 230V (A) 7.5 | Absorption at 230V (A) 10.0 | Absorption at 230V (A) 9.9 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 3.3 | Current consumption at 400V (A) 4.3 | Current consumption at 400V (A) 5.8 | Current consumption at 400V (A) 5.7 |
| Suction mouth | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Brass | Impeller Brass | Impeller Brass | Impeller Brass |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 550 | Max. flow rate (l./min.) 600 | Max. flow rate (l./min.) 700 | Max. flow rate (l./min.) 600 |
| Min. head (m.) | Min. head (m.) 6 | Min. head (m.) 9 | Min. head (m.) 10 | Min. head (m.) 14 |
| Max. head (m.) | Max. head (m.) 16 | Max. head (m.) 20.5 | Max. head (m.) 26 | Max. head (m.) 27 |
| Jobs | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C |
| Height (cm) | Height (cm) 25.2 | Height (cm) 24.4 | Height (cm) 25.2 | Height (cm) 29.2 |
| Width (cm) | Width (cm) 42.1 | Width (cm) 42.1 | Width (cm) 44.1 | Width (cm) 43.9 |
| Depth (cm) | Depth (cm) 24.4 | Depth (cm) 21 | Depth (cm) 21 | Depth (cm) 24 |
| Weight (Kg) | Weight (Kg) 29.9 | Weight (Kg) 32.4 | Weight (Kg) 32.6 | Weight (Kg) 33.4 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
