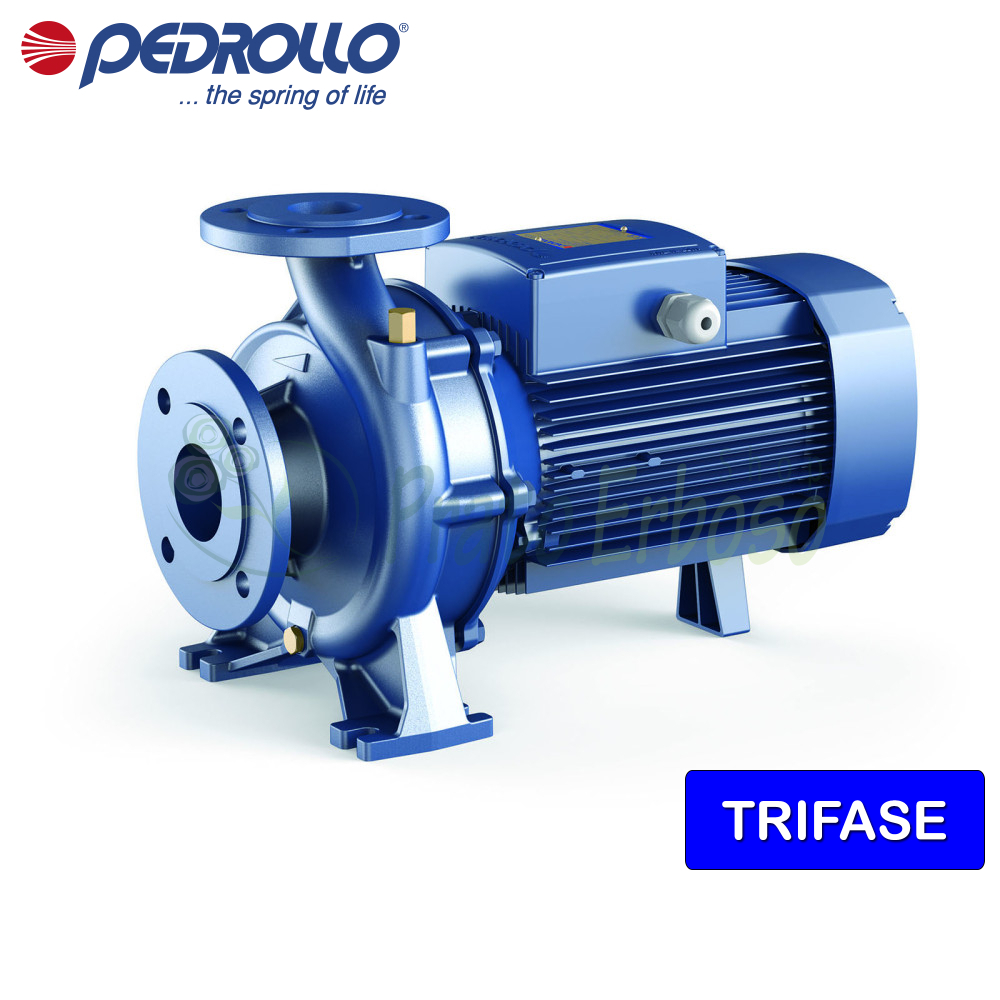

F 100/200A - 60 HP three-phase standard centrifugal electric pump

Name: F 100/200A - 60 HP three-phase standard centrifugal electric pump
Brand: Pedrollo
SKU: F 100/200A
Price: 4450.74 EUR
Availability: InStock

Flow rate up to 5250 l/min (315 m³/h). Head up to 63 m. 45 kW (60 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo F 100/200A standardized centrifugal electric pump boasts an extremely solid construction.

Made almost exclusively of cast iron, the electric pump is robust, durable and built to last over time.

The F 100/200A electric pump is recommended for the civil and industrial sectors.

Suitable for a variety of applications. It allows for the drainage of clean water without abrasive particles, suitable for water supply, pressurization, irrigation, and water circulation in air conditioning systems.

It can be installed in washing systems, fire-fighting systems, in the agricultural and industrial sectors.

The flow rate ranges from 833 to 5250 litres per hour and the head ranges from 38 to 63 metres.

Equipped with flanges built according to EN733 standard.

The efficiency class is IE3.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 45
Power (HP): 60
Current consumption at 400V (A): 39.8
Absorption at 690V (A)
Suction mouth: 5"
Delivery mouth: 4"
Pump body: Cast iron
Impeller: Cast iron
Number of impellers: 1
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 55
Minimum flow rate (l./min.): 1000
Max. flow rate (l./min.): 5500
Min. head (m.): 17.5
Max. head (m.): 38
Jobs: water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
Max. liquid temperature (°C): 90
Height (cm): 48
Width (cm): 79
Depth (cm)
Weight (Kg): 164
Warranty (years): 2

Attachments

Technical sheet F

Models, performance curves and construction features of the Pedrollo F series pumps.

Download (820.58KB)

Models and performance F 100/200

TYPE

Three-phase

F 100/200C

F 100/200B

F 100/200A

POWER
KW	HP
30	40
37	50
45	60

PERFORMANCES
Q liters/min	H meters
833 ÷ 4650	51 ÷ 28
833 ÷ 4900	57 ÷ 33
833 ÷ 5250	63 ÷ 38

MOUTH
asp.	mand.
DN 125	DN 100

Q	m³/hour	0	50	96	150	180	210	240	279	294	300	315
Q	l/min	0	833	1600	2500	3000	3500	4000	4650	4900	5000	5250
H	meters	51	51	50	47	44	40.5	35.5	28
		57	57	56	53	50.5	47	42.5	36	33
		63	63	62.5	60	58	55	51.5	45	42.5	41.5	38
