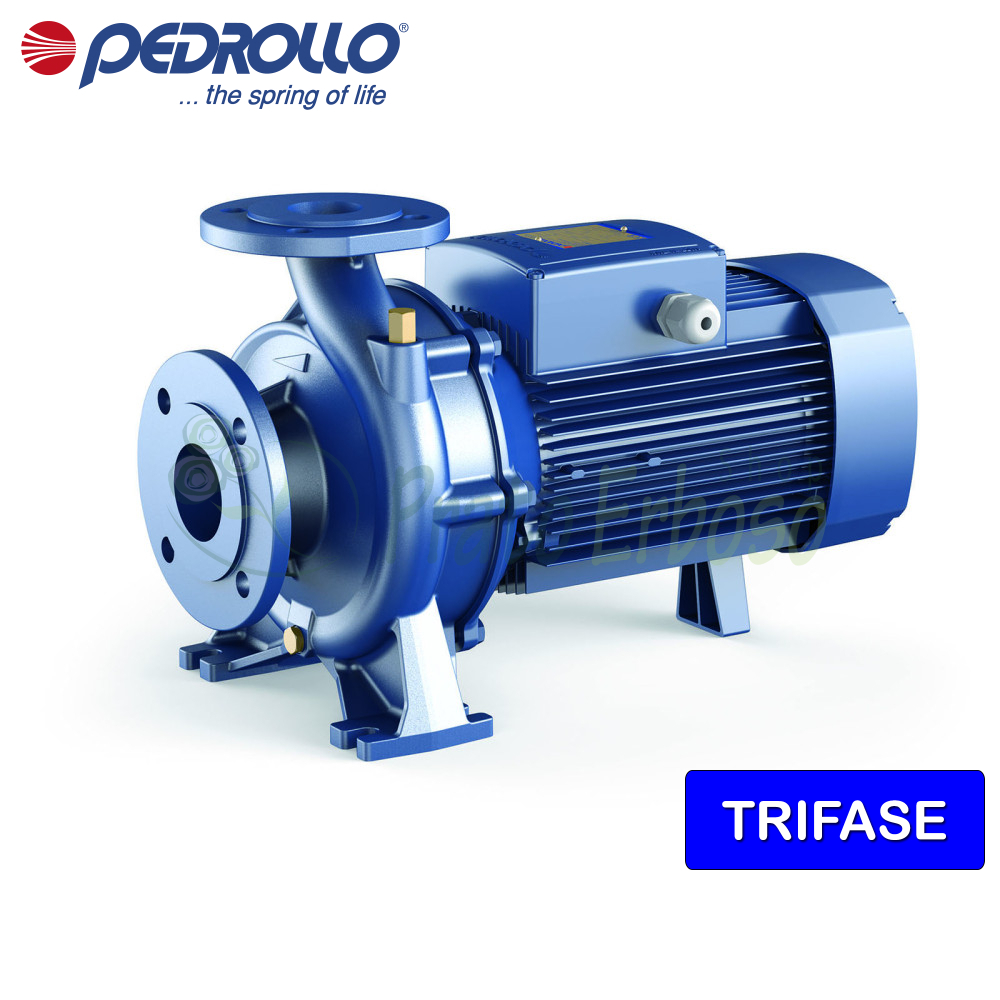

F 100/250A - 100 HP three-phase standard centrifugal electric pump
Flow rate up to 5750 l/min (345 m³/h). Head up to 89 m. 75 kW (100 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo F 100/200A standardized centrifugal electric pump is equipped with a newly developed electric motor designed to work with an inverter.
Equipped with flanges built according to EN733 standard.
The flow rate ranges from 833 to 4900 litres per hour and the head ranges from 33 to 57 metres.
Suitable for use in the civil and industrial sectors.
The F 100/200A electric pump is recommended for draining clean water without abrasive parts, water supply, pressurization, irrigation and water circulation in air conditioning systems.
Also suitable for washing systems, fire-fighting systems, in industry and agriculture.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 75
- Power (HP)
- 100
- Current consumption at 400V (A)
- 39.8
- Absorption at 690V (A)
- Suction mouth
- 5"
- Delivery mouth
- 4"
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 1000
- Max. flow rate (l./min.)
- 5500
- Min. head (m.)
- 17.5
- Max. head (m.)
- 38
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
- Max. liquid temperature (°C)
- 90
- Height (cm)
- 48
- Width (cm)
- 79
- Depth (cm)
- Weight (Kg)
- 164
- Warranty (years)
- 2
Models and performance F 100/250
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 F 100/250A - 100 HP three-phase standard centrifugal electric pumpThis product Flow rate up to 5750 l/min (345 m³/h). Head up to 89 m. 75 kW (100 HP) motor. |  F 100/200B - 50 HP three-phase standard centrifugal electric pumpFlow rate up to 4900 l/min (294 m³/h). Head up to 57 m. 37 kW (50 HP) motor. |  F 100/200A - 60 HP three-phase standard centrifugal electric pumpFlow rate up to 5250 l/min (315 m³/h). Head up to 63 m. 45 kW (60 HP) motor. |  F 100/250B - 75 HP three-phase standard centrifugal electric pumpFlow rate up to 5150 l/min (309 m³/h). Head up to 75 m. 55 kW (75 HP) motor. | |
|---|---|---|---|---|
| Price | Price €19,415.08 -45% €10,678.29 | Price €7,954.40 -45% €4,374.92 | Price €8,092.26 -45% €4,450.74 | Price €18,723.34 -45% €10,297.84 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 75 | Power (Kw) 37 | Power (Kw) 45 | Power (Kw) 55 |
| Power (HP) | Power (HP) 100 | Power (HP) 50 | Power (HP) 60 | Power (HP) 75 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 39.8 | Current consumption at 400V (A) 39.8 | Current consumption at 400V (A) 39.8 | Current consumption at 400V (A) 39.8 |
| Absorption at 690V (A) | Absorption at 690V (A) -- | Absorption at 690V (A) -- | Absorption at 690V (A) -- | Absorption at 690V (A) -- |
| Suction mouth | Suction mouth 5" | Suction mouth 5" | Suction mouth 5" | Suction mouth 5" |
| Delivery mouth | Delivery mouth 4" | Delivery mouth 4" | Delivery mouth 4" | Delivery mouth 4" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 1000 | Minimum flow rate (l./min.) 1000 | Minimum flow rate (l./min.) 1000 | Minimum flow rate (l./min.) 1000 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 5500 | Max. flow rate (l./min.) 5500 | Max. flow rate (l./min.) 5500 | Max. flow rate (l./min.) 5500 |
| Min. head (m.) | Min. head (m.) 17.5 | Min. head (m.) 17.5 | Min. head (m.) 17.5 | Min. head (m.) 17.5 |
| Max. head (m.) | Max. head (m.) 38 | Max. head (m.) 38 | Max. head (m.) 38 | Max. head (m.) 38 |
| Jobs | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems | Jobs water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) 90 | Max. liquid temperature (°C) 90 | Max. liquid temperature (°C) 90 | Max. liquid temperature (°C) 90 |
| Height (cm) | Height (cm) 48 | Height (cm) 48 | Height (cm) 48 | Height (cm) 48 |
| Width (cm) | Width (cm) 79 | Width (cm) 79 | Width (cm) 79 | Width (cm) 79 |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) 164 | Weight (Kg) 164 | Weight (Kg) 164 | Weight (Kg) 164 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
