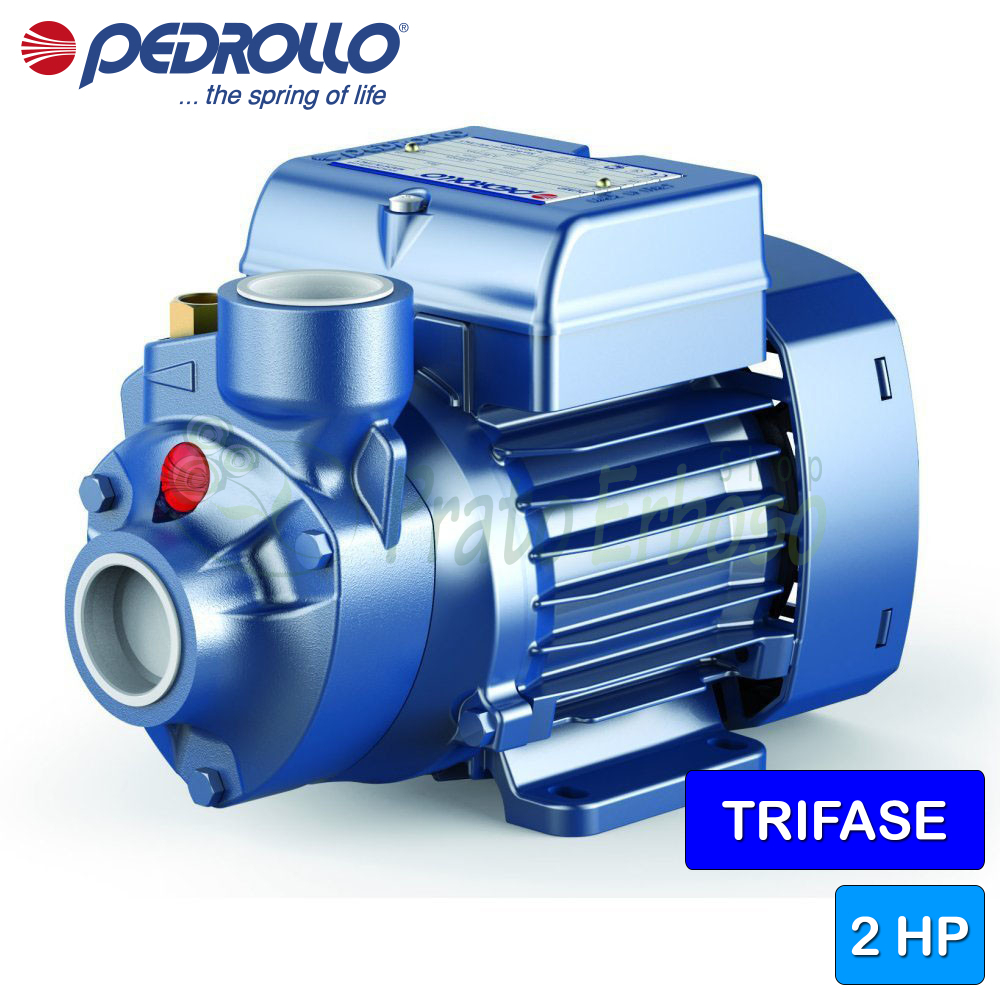

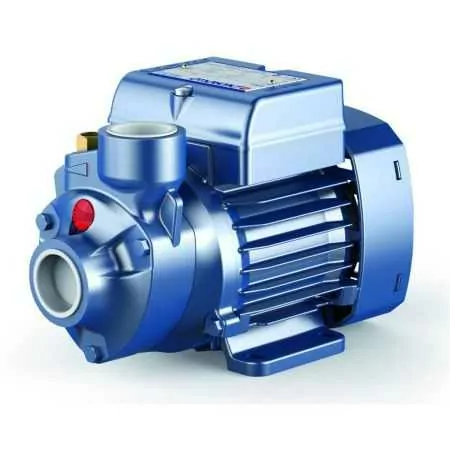

PK 200 - 2 HP three-phase peripheral impeller electric pump
Flow rate up to 80 l/min (4.8 m³/h). Head up to 86 m. 1.5 Kw (2 HP) motor.
The Pedrollo PK 200 peripheral electric pump is suitable for domestic applications.
It is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
The PK 200 pump is suitable for water distribution in combination with small pressure tanks, for irrigation of vegetable gardens and gardens.
The noise level has now been reduced by 20%.
The flow rate ranges from 5 to 80 litres per hour and the head ranges from 10 to 86 metres.
The PK 200 pump is made of high quality materials and components, such as cast iron, steel, aluminium and brass. This pump is durable and reliable.
Installation must be carried out indoors or in any case protected from the elements.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 8.3
- Absorption at 400V (A)
- 4.8
- Suction mouth
- 1 "
- Delivery port
- 1 "
- Body Pump
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 55
- Flow rate min. (l./min.)
- 5
- Max flow (l./min.)
- 80
- Min head (m.)
- 10
- Max head (m.)
- 90
- Employments
- water supply
- Liquid temperature max. (° C)
- +60°C
- Motor voltage
- 230 V, 400 V
- Height (cm)
- 21.2
- Width (cm)
- 35.6
- Depth (cm)
- 12.5
- Weight kg)
- 15.5
- Guarantee
- 2
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-14 |
| LP diameter | 14 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
 PK 200 - 2 HP three-phase peripheral impeller electric pumpThis product Flow rate up to 80 l/min (4.8 m³/h). Head up to 86 m. 1.5 Kw (2 HP) motor. |  PK 90 - 1 HP three-phase peripheral impeller electric pumpFlow rate up to 40 l/min (2.4 m³/h). Head up to 82 m. 0.75 Kw (1 HP) motor. |  PK 100 - 1.5 HP three-phase peripheral impeller electric pump1.1 Kw (1.5 HP) motor. Flow rate up to 70 l/min (4.2 m³/h). Head up to 80 m. |  PK 300 - 3 HP three-phase peripheral impeller electric pump2.2 Kw (3 HP) motor. Flow rate up to 90 l/min (5.4 m³/h). Head up to 95 m. | |
|---|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.5 | Power (Kw) 0.75 | Power (Kw) 1.1 | Power (Kw) 2.2 |
| Power (HP) | Power (HP) 2 | Power (HP) 1 | Power (HP) 1.5 | Power (HP) 3 |
| Absorption at 230V (A) | Absorption at 230V (A) 8.3 | Absorption at 230V (A) 4 | Absorption at 230V (A) 6.2 | Absorption at 230V (A) 9 |
| Capacitor | Capacitor -- | Capacitor -- | Capacitor -- | Capacitor 50 µF450 VL |
| Absorption at 400V (A) | Absorption at 400V (A) 4.8 | Absorption at 400V (A) 2.3 | Absorption at 400V (A) 3.6 | Absorption at 400V (A) 5.2 |
| Suction mouth | Suction mouth 1 " | Suction mouth 3/4 " | Suction mouth 1 " | Suction mouth 1 " |
| Delivery port | Delivery port 1 " | Delivery port 3/4 " | Delivery port 1 " | Delivery port 1 " |
| Body Pump | Body Pump Cast iron | Body Pump Cast iron | Body Pump Cast iron | Body Pump Cast iron |
| Impeller | Impeller Brass | Impeller Brass | Impeller Brass | Impeller Brass |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Motor shaft | Motor shaft AISI 431 stainless steel | Motor shaft AISI 431 stainless steel | Motor shaft AISI 431 stainless steel | Motor shaft AISI 431 stainless steel |
| Check valve | Check valve no | Check valve no | Check valve no | Check valve no |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) 5 | Flow rate min. (l./min.) 5 | Flow rate min. (l./min.) 5 | Flow rate min. (l./min.) 5 |
| Max flow (l./min.) | Max flow (l./min.) 80 | Max flow (l./min.) 40 | Max flow (l./min.) 70 | Max flow (l./min.) -- |
| Min head (m.) | Min head (m.) 10 | Min head (m.) 5 | Min head (m.) 15 | Min head (m.) 10 |
| Max head (m.) | Max head (m.) 90 | Max head (m.) 90 | Max head (m.) 85 | Max head (m.) -- |
| Employments | Employments water supply | Employments water supply | Employments water supply | Employments water supply |
| Liquid temperature max. (° C) | Liquid temperature max. (° C) +60°C | Liquid temperature max. (° C) +60°C | Liquid temperature max. (° C) +60°C | Liquid temperature max. (° C) +60°C, |
| Motor voltage | Motor voltage 230 V, 400 V | Motor voltage 230 V, 400 V | Motor voltage 230 V, 400 V | Motor voltage 230 V, 400 V |
| Height (cm) | Height (cm) 21.2 | Height (cm) 17.9 | Height (cm) 21.2 | Height (cm) 21.2 |
| Width (cm) | Width (cm) 35.6 | Width (cm) 27.8 | Width (cm) 35.6 | Width (cm) 37.6 |
| Depth (cm) | Depth (cm) 12.5 | Depth (cm) 11.2 | Depth (cm) 12.5 | Depth (cm) 12.5 |
| Weight kg) | Weight kg) 15.5 | Weight kg) 10.3 | Weight kg) 14.4 | Weight kg) 18.6 |
| Guarantee | Guarantee 2 | Guarantee 2 | Guarantee 2 | Guarantee 2 |
