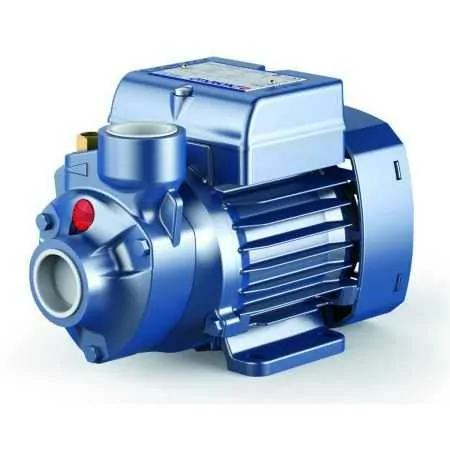

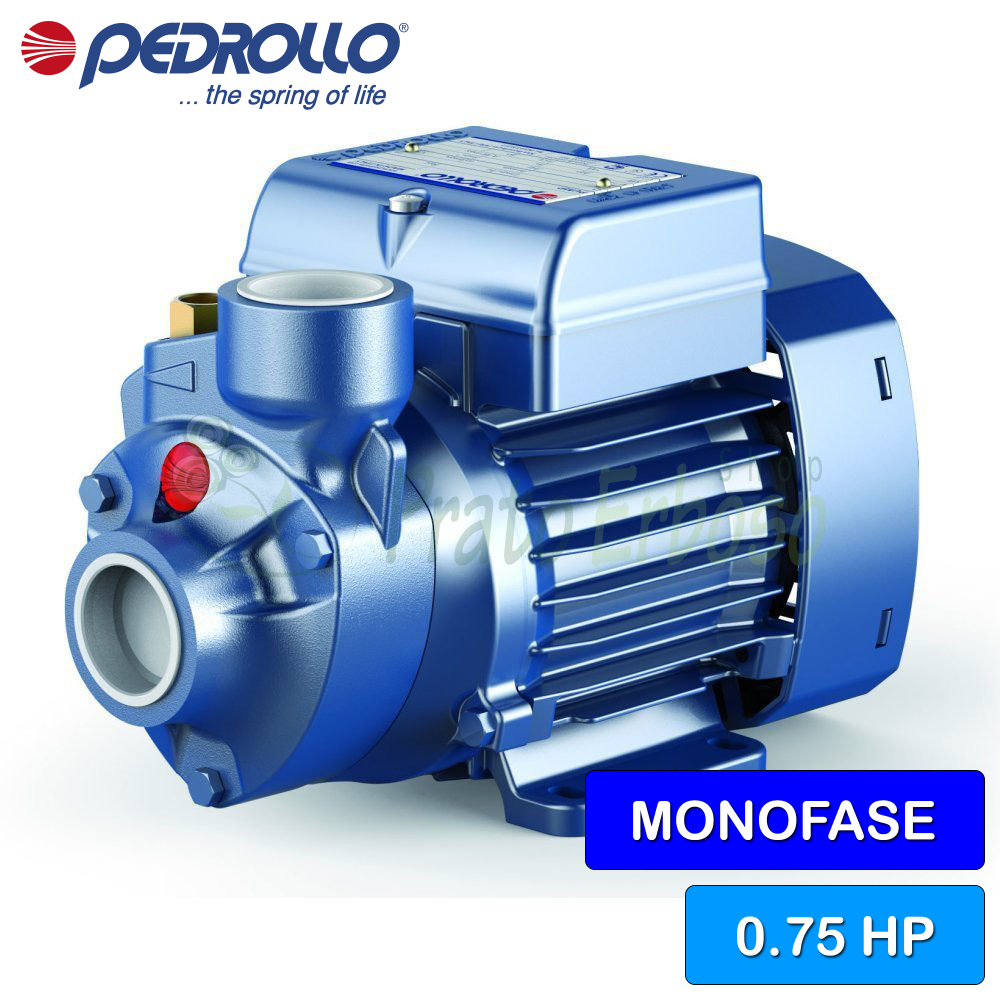

PKm 65 - Single-phase peripheral impeller electric pump 0.75 HP
Flow rate up to 50 l/min (3 m³/h). Head up to 50 m. 0.55 Kw (0.75 HP) motor.
The Pedrollo PKm 65 peripheral electric pump is suitable for irrigation of vegetable gardens and gardens.
Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
Suitable for water distribution in conjunction with small pressure tanks.
The flow rate ranges from 5 to 50 litres per hour and the head ranges from 8 to 50 metres.
The PKm 65 pump has the advantage of being small and compact. Compared to the previous version, the pump is 20% less noisy.
Compared to the previous model, the new version is less noisy.
In production for over 50 years and with millions of units sold, it is the most economical and versatile product produced by Pedrollo .
Installation must be carried out indoors or in any case protected from the elements.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.7
- Capacitor
- 14 µF450 VL
- Suction mouth
- 1 "
- Delivery port
- 1 "
- Body Pump
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 55
- Flow rate min. (l./min.)
- 5
- Max flow (l./min.)
- 50
- Min head (m.)
- 8
- Max head (m.)
- 55
- Employments
- water supply
- Liquid temperature max. (° C)
- +60°C
- Motor voltage
- 230 V
- Height (cm)
- 15.3
- Width (cm)
- 23.7
- Depth (cm)
- 10
- Weight kg)
- 6.6
- Guarantee
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side motor bearing | 6201 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-12 |
| LP diameter | 12 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | DX53D EN 10346 galvanized steel |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
