Brio - Electronic pressure regulator
For pumps up to 2 HP. With pressure gauge. With auto-reset.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October

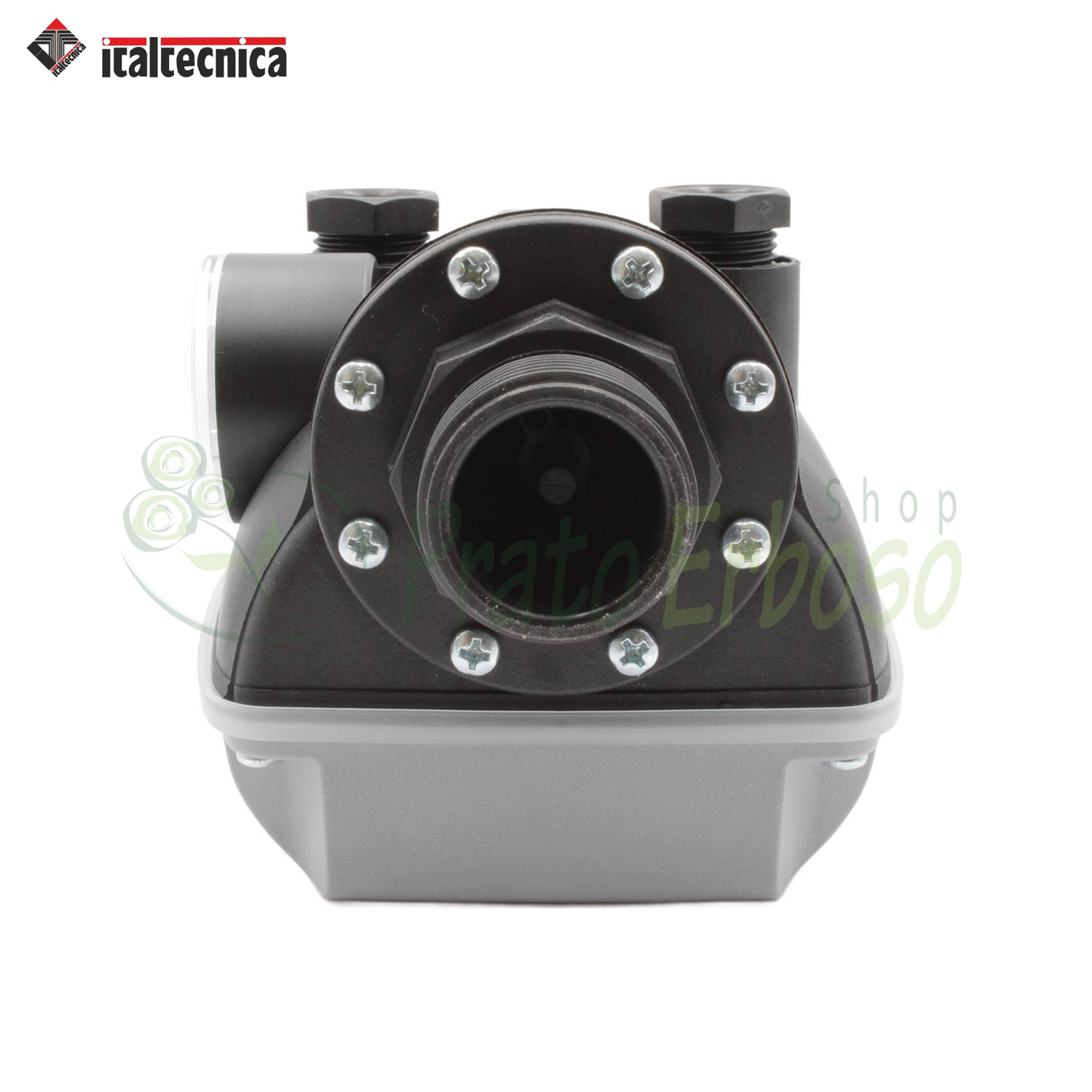

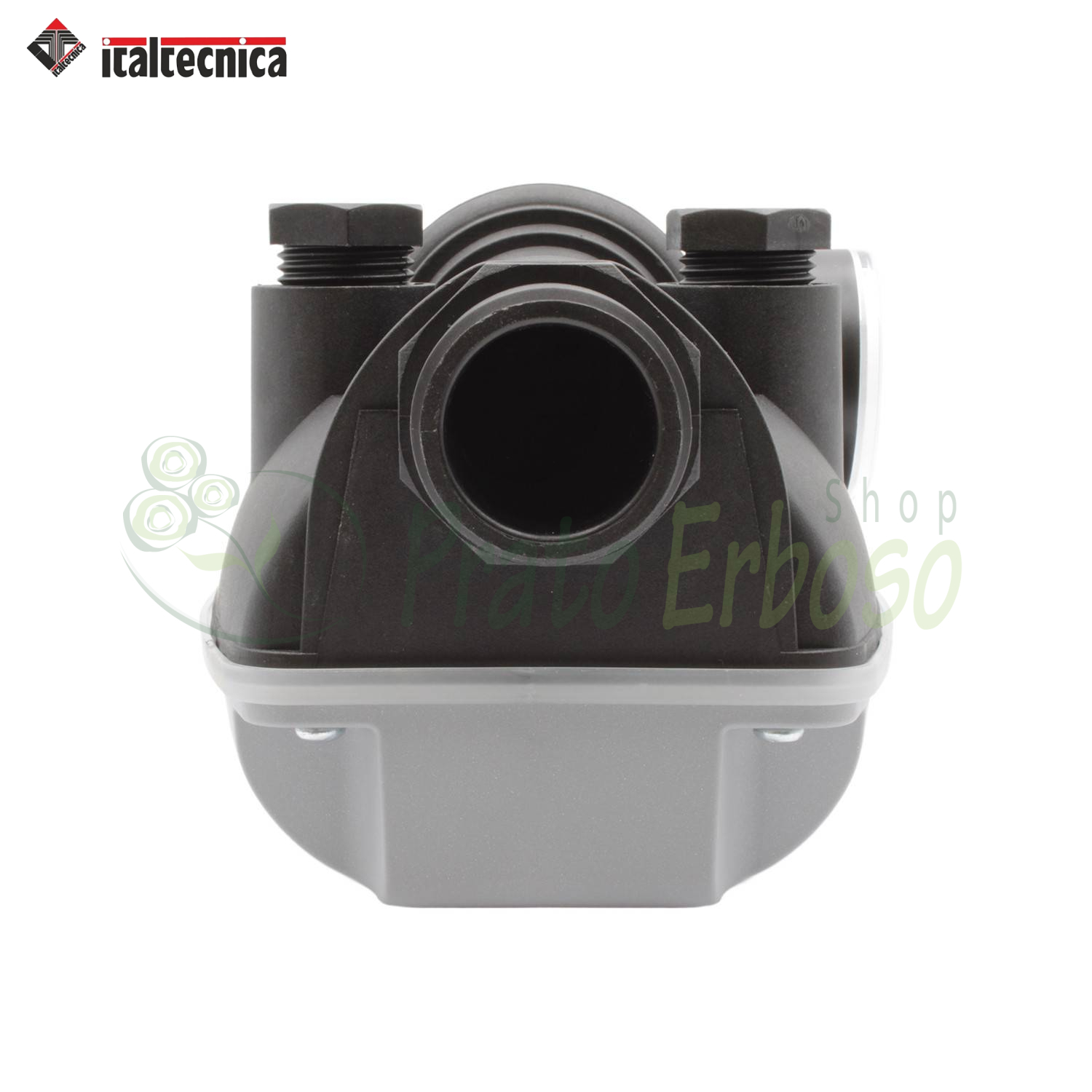

The Italtecnica Brio electronic pressure regulator is an electronic device that automatically controls the start and stop of single-phase electric pumps up to 2 HP.
Its function replaces the traditional system consisting of a pressure switch and expansion tank. It starts the pump following a drop in pressure and stops it when the liquid flow drops below 2.5 liters per minute.
The Brio protects the system from dry running. It features a built-in, serviceable check valve.
It has a built-in Smart Auto Reset. After a water shortage, it attempts to restart at longer intervals, for a total of 10 attempts.
Anti-seize protection is standard. After every 24 hours of non-use, it runs the pump for 10 seconds to prevent the rotor from seizing.
It can be installed in any position both vertical and horizontal.
- Jobs
- irrigation, pressurization systems, water supply
- Power (HP)
- 2
- Max. flow rate (l./min.)
- 150
- Max. working pressure (bar)
- 10
- Restart pressure (bar)
- 3.5
- Max. liquid temperature (°C)
- 65
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Line Current (Ampere)
- 12 A
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Degree of protection
- IP 65
- Dry running protection
- Yes
- Attack size
- 1 "
- Type of attack
- male
- Height (cm)
- 20
- Weight (Kg)
- 3
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation
Engine and mechanical performance
- Power (HP)
- 2
Hydraulic performance and filtration
- Max. flow rate (l./min.)
- 150
- Max. working pressure (bar)
- 10
- Restart pressure (bar)
- 3.5
Liquids and pumping conditions
- Max. liquid temperature (°C)
- 65
Power supply and electrical parameters
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Line Current (Ampere)
- 12 A
- Engine power supply
- single phase
- Motor voltage
- 230 V
Safety and protection
- Degree of protection
- IP 65
- Dry running protection
- Yes
Installation and connections
- Type of attack
- male
- Attack size
- 1 "
Dimensions and weight
- Height (cm)
- 20
- Weight (Kg)
- 3
Packaging, maintenance, and warranty
- Warranty (years)
- 2
