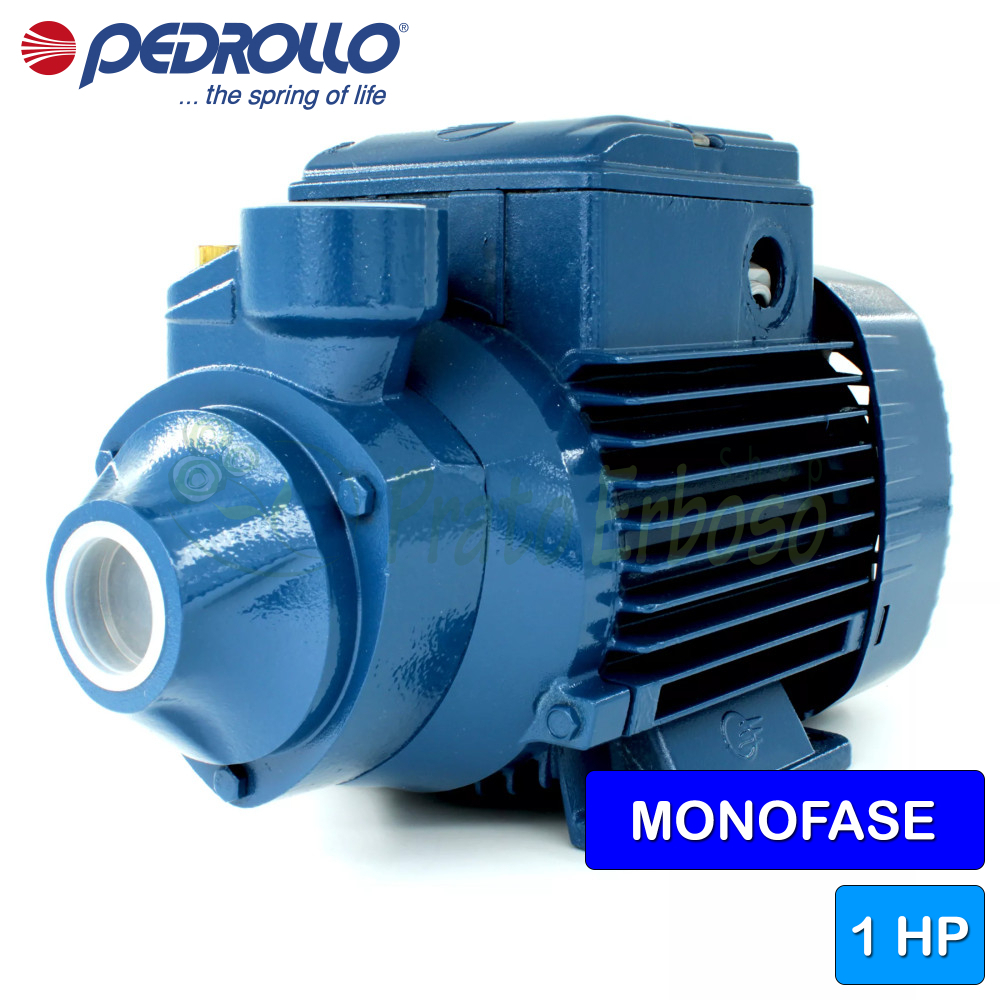

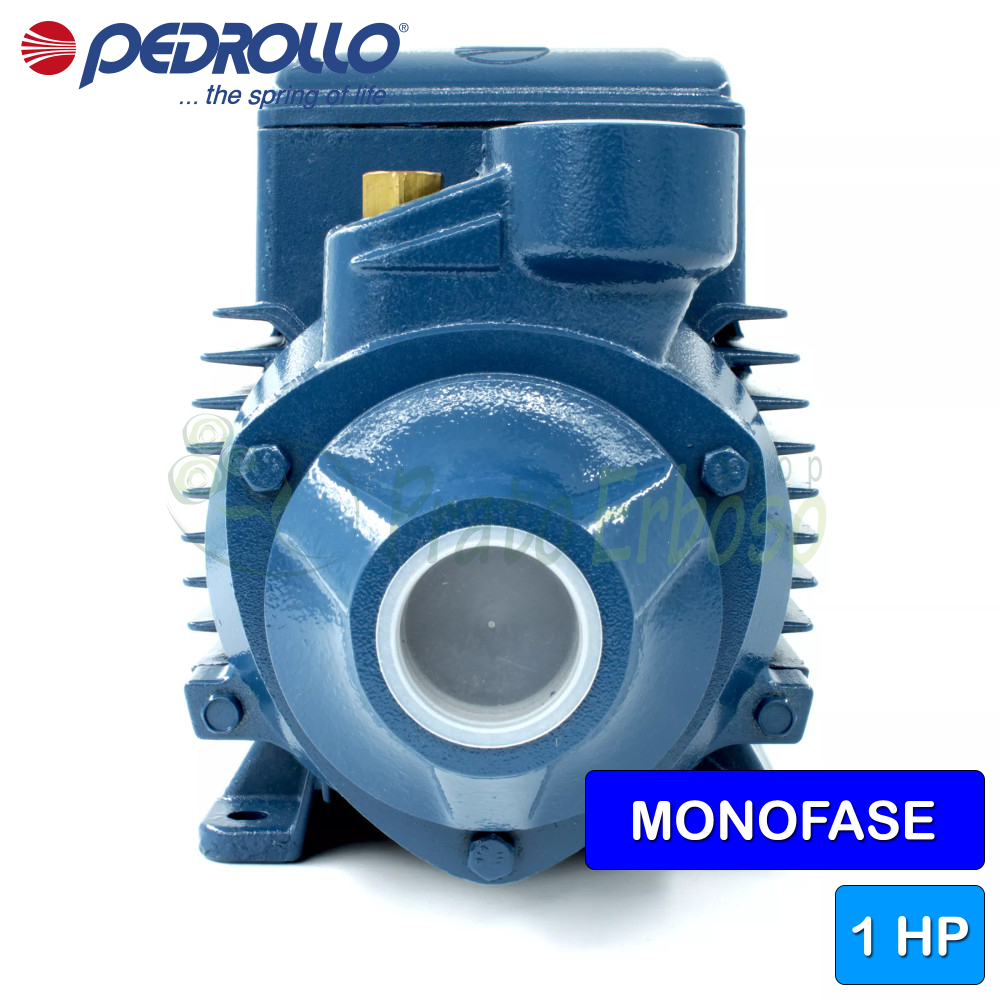

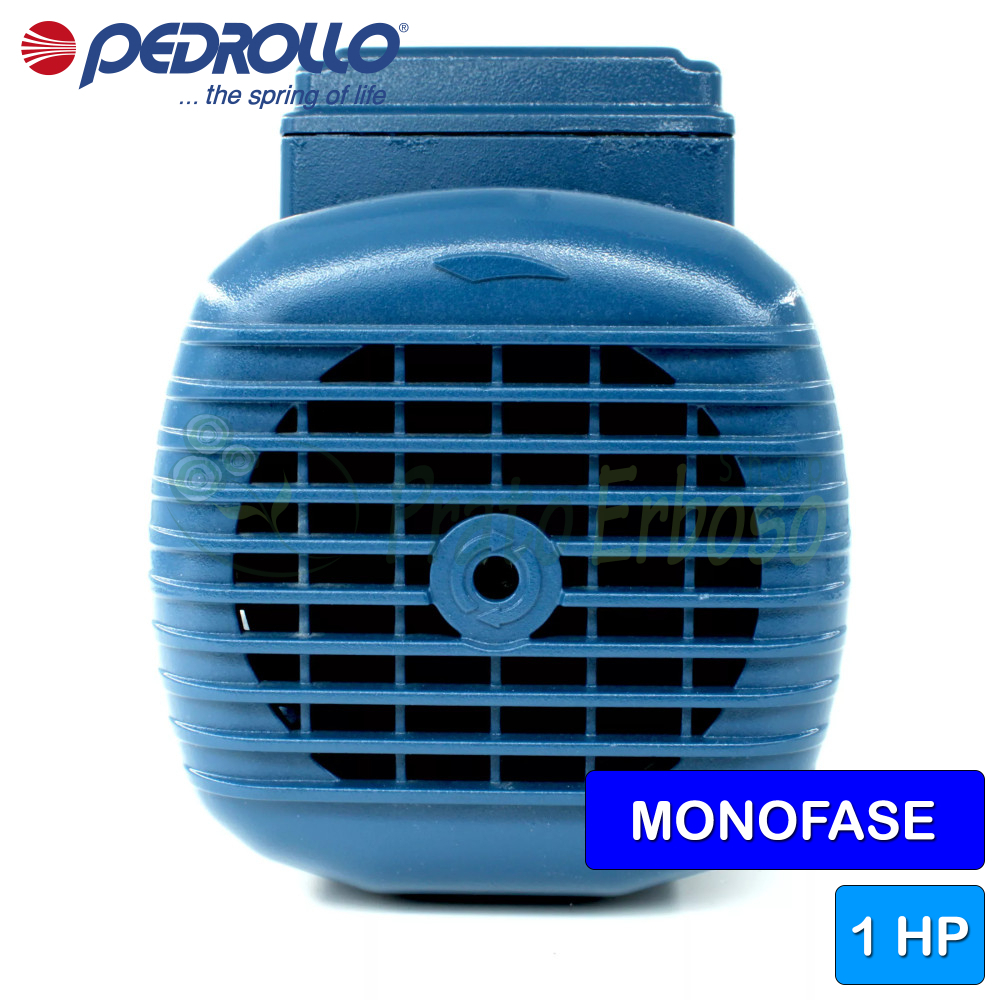

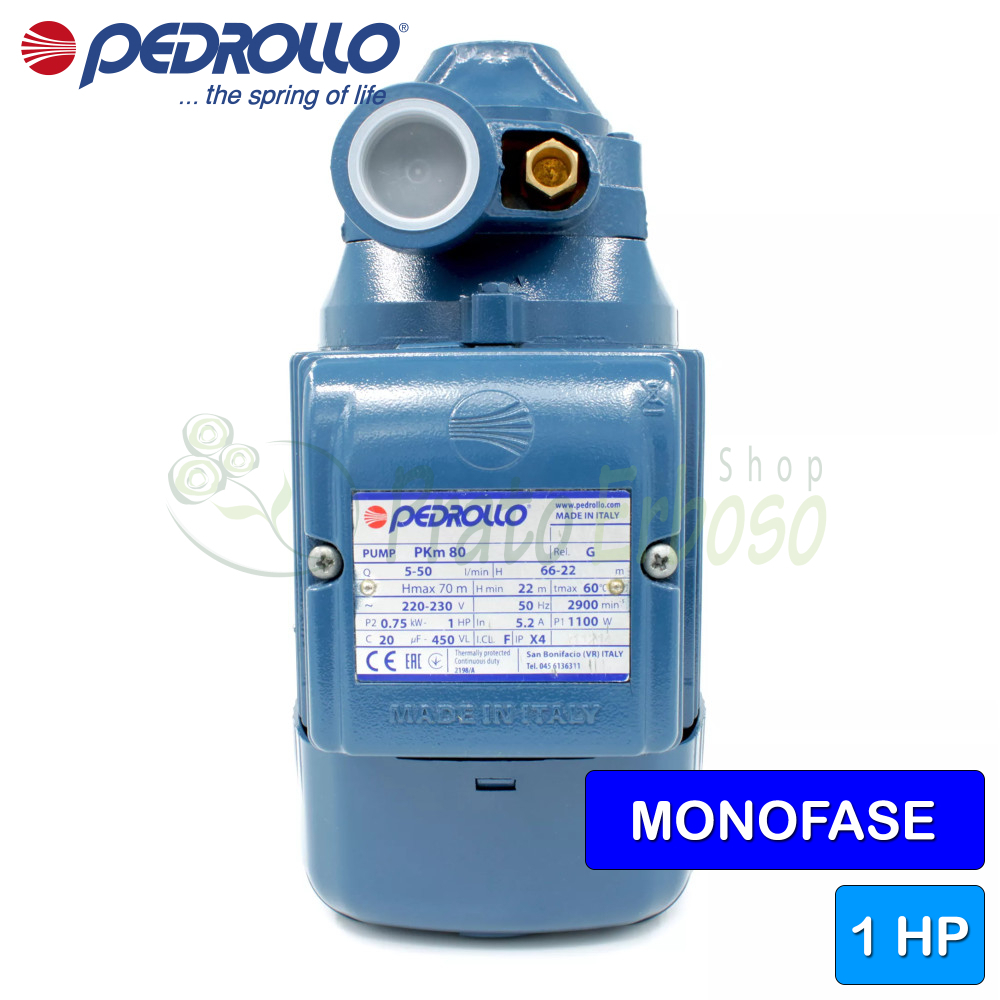

PKm 80 - 1 HP single-phase peripheral impeller electric pump
Flow rate up to 50 l/min (3 m³/h). Head up to 66 m. 0.75 Kw (1 HP) motor.
The Pedrollo PKm 80 peripheral electric pump is a convenient solution for irrigating vegetable gardens and gardens.
Produced for over 50 years and with millions of units sold, it is the most economical and versatile product produced by Pedrollo .
The small size and low weight make the PKm 80 suitable for home use.
Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
The flow rate is from 5 to 50 liters per minute. The head is from 5 to 50 meters.
Suitable for water distribution in conjunction with small pressure tanks.
The PKm 80 must be installed indoors without exposing it to the elements.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.2
- Capacitor
- 20 µF450 VL
- Suction mouth
- 1 "
- Delivery mouth
- 1 "
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Min. flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 22
- Max. head (m.)
- 66
- Jobs
- water supply
- Max. liquid temperature (°C)
- +60°C
- Motor voltage
- 230 V
- Height (cm)
- 17.9
- Width (cm)
- 28.5
- Depth (cm)
- 28.5
- Weight (Kg)
- 9.9
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-12 |
| LP diameter | 12 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
 PKm 80 - 1 HP single-phase peripheral impeller electric pumpThis product Flow rate up to 50 l/min (3 m³/h). Head up to 66 m. 0.75 Kw (1 HP) motor. |  PKm 65 - Single-phase peripheral impeller electric pump 0.75 HPFlow rate up to 50 l/min (3 m³/h). Head up to 50 m. 0.55 Kw (0.75 HP) motor. |  PKm 90 - 1 HP single-phase peripheral impeller electric pumpFlow rate up to 40 l/min (2.4 m³/h). Head up to 82 m. 0.75 Kw (1 HP) motor. |  PKm 100 - 1.5 HP single-phase peripheral impeller electric pumpFlow rate up to 70 l/min (4.2 m³/h). Head up to 80 m. 1.1 Kw (1.5 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE |
| Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.55 | Power (Kw) 0.75 | Power (Kw) 1.1 |
| Power (HP) | Power (HP) 1 | Power (HP) 0.75 | Power (HP) 1 | Power (HP) 1.5 |
| Absorption at 230V (A) | Absorption at 230V (A) 5.2 | Absorption at 230V (A) 3.7 | Absorption at 230V (A) 5.6 | Absorption at 230V (A) 9 |
| Capacitor | Capacitor 20 µF450 VL | Capacitor 14 µF450 VL | Capacitor 20 µF450 VL | Capacitor 31.5 µF450 VL |
| Suction mouth | Suction mouth 1 " | Suction mouth 1 " | Suction mouth 3/4 " | Suction mouth 1 " |
| Delivery mouth | Delivery mouth 1 " | Delivery mouth 1 " | Delivery mouth 3/4 " | Delivery mouth 1 " |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body -- | Pump body -- |
| Impeller | Impeller Brass | Impeller Brass | Impeller Brass | Impeller Brass |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 44 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) 5 | Min. flow rate (l./min.) 5 | Min. flow rate (l./min.) 5 | Min. flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 50 | Max. flow rate (l./min.) 50 | Max. flow rate (l./min.) 40 | Max. flow rate (l./min.) 70 |
| Min. head (m.) | Min. head (m.) 22 | Min. head (m.) 8 | Min. head (m.) 5 | Min. head (m.) 15 |
| Max. head (m.) | Max. head (m.) 66 | Max. head (m.) 50 | Max. head (m.) 82 | Max. head (m.) 80 |
| Jobs | Jobs water supply | Jobs water supply | Jobs water supply | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +60°C | Max. liquid temperature (°C) +60°C | Max. liquid temperature (°C) +60°C | Max. liquid temperature (°C) +60°C |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Height (cm) | Height (cm) 17.9 | Height (cm) 15.3 | Height (cm) 17.9 | Height (cm) 21.2 |
| Width (cm) | Width (cm) 28.5 | Width (cm) 23.7 | Width (cm) 27.8 | Width (cm) 35.6 |
| Depth (cm) | Depth (cm) 28.5 | Depth (cm) 10 | Depth (cm) 11.2 | Depth (cm) 15.2 |
| Weight (Kg) | Weight (Kg) 9.9 | Weight (Kg) 7 | Weight (Kg) 10.2 | Weight (Kg) 15 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
