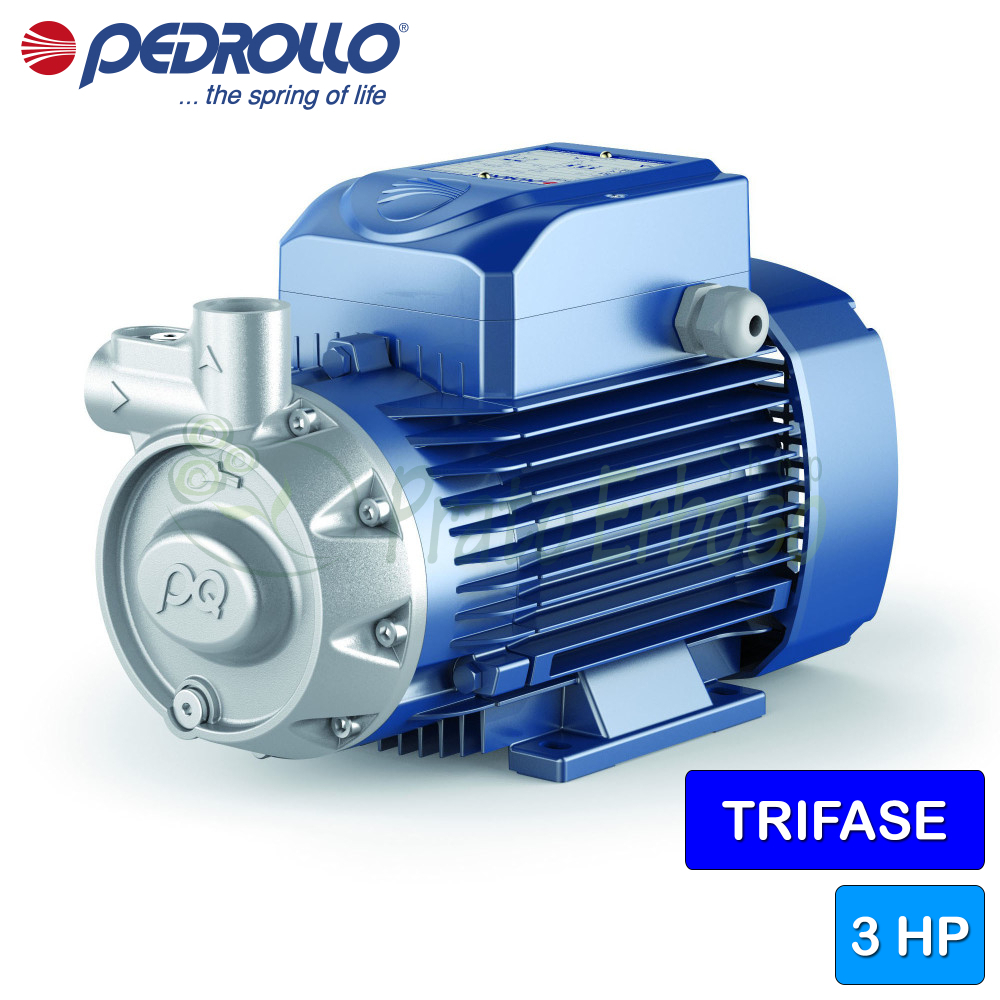

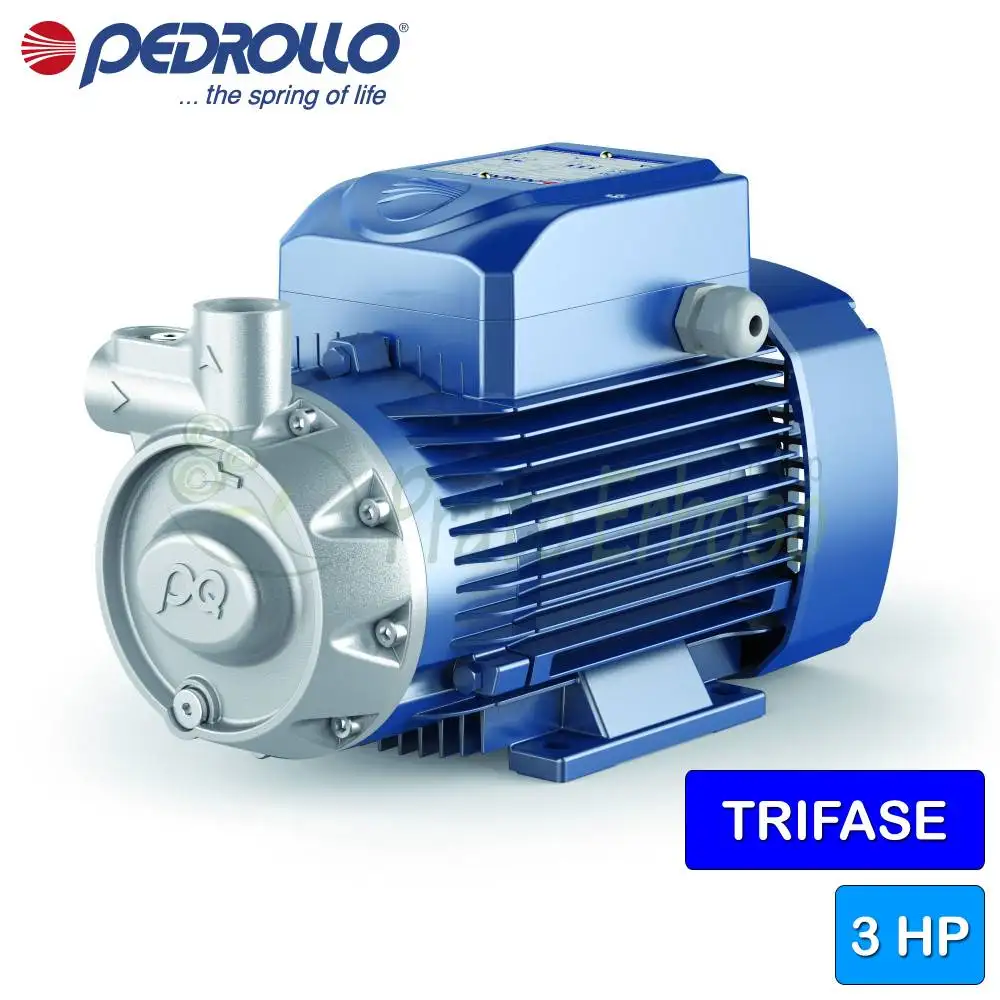

PQ 3000-MF - 3 HP three-phase peripheral impeller electric pump
Flow rate up to 50 l/min (3 m³/h). Head up to 180 m. 2.2 Kw (3 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 12 November - Thursday 13 November |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 12 November - Thursday 13 November |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Wednesday 12 November - Thursday 13 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 12 November |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 12 November |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 12 November - Thursday 13 November
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November - Thursday 13 November
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 12 November - Thursday 13 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 12 November
The Pedrollo PQ 3000-MF electric pump is recommended for industrial use.
It differs from the PQ 3000 pump in that the pump body of the PQ 3000-MF is made of AISI 316 stainless steel instead of cast iron.
Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
The PQ 3000-MF, thanks to its hydraulic characteristics and small size, allows for use in industrial environments in chillers, air conditioning, cooling or boiler feeding equipment.
The flow rate ranges from 5 to 50 liters per minute. The head ranges from 50 to 180 meters.
The pump's delivery and suction port is 1 inch.
The PQ 3000-MF must be powered by a three-phase voltage, has a horsepower of 3 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.
The maximum supported pressure is 18 bar. The manometric suction height is up to 8 meters.
Made of materials such as stainless steel, aluminum, bronze, graphite and ceramic, the PQ 3000-MF is very robust, resistant and guarantees a long life over time.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 12.9
- Current consumption at 400V (A)
- 7.5
- Suction mouth
- 3/4"
- Delivery mouth
- 3/4"
- Pump body
- AISI 316L stainless steel
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 50
- Max. head (m.)
- 180
- Jobs
- water supply
- Max. liquid temperature (°C)
- 90
- Motor voltage
- 230 V, 400V
- Height (cm)
- 21.1
- Width (cm)
- 34.7
- Depth (cm)
- 15.1
- Weight (Kg)
- 18.8
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ - C3 |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 NU |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | EN 14401 stainless steel (AISI 316) |
| 3.0 - Impeller | Bronze CC483K EN 1982 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
