-42%

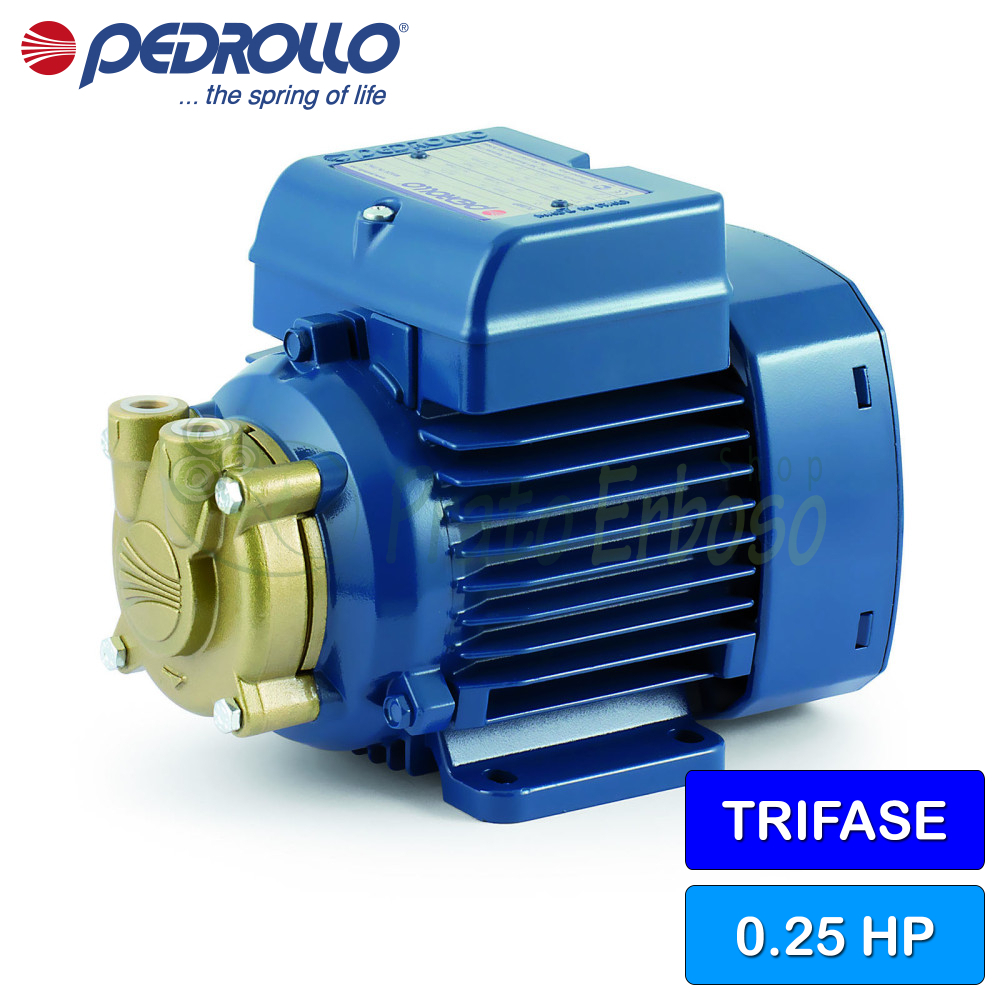

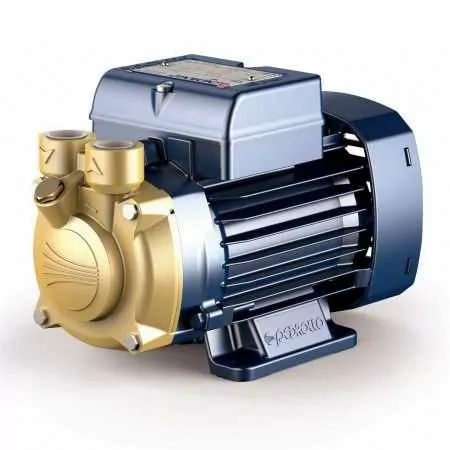

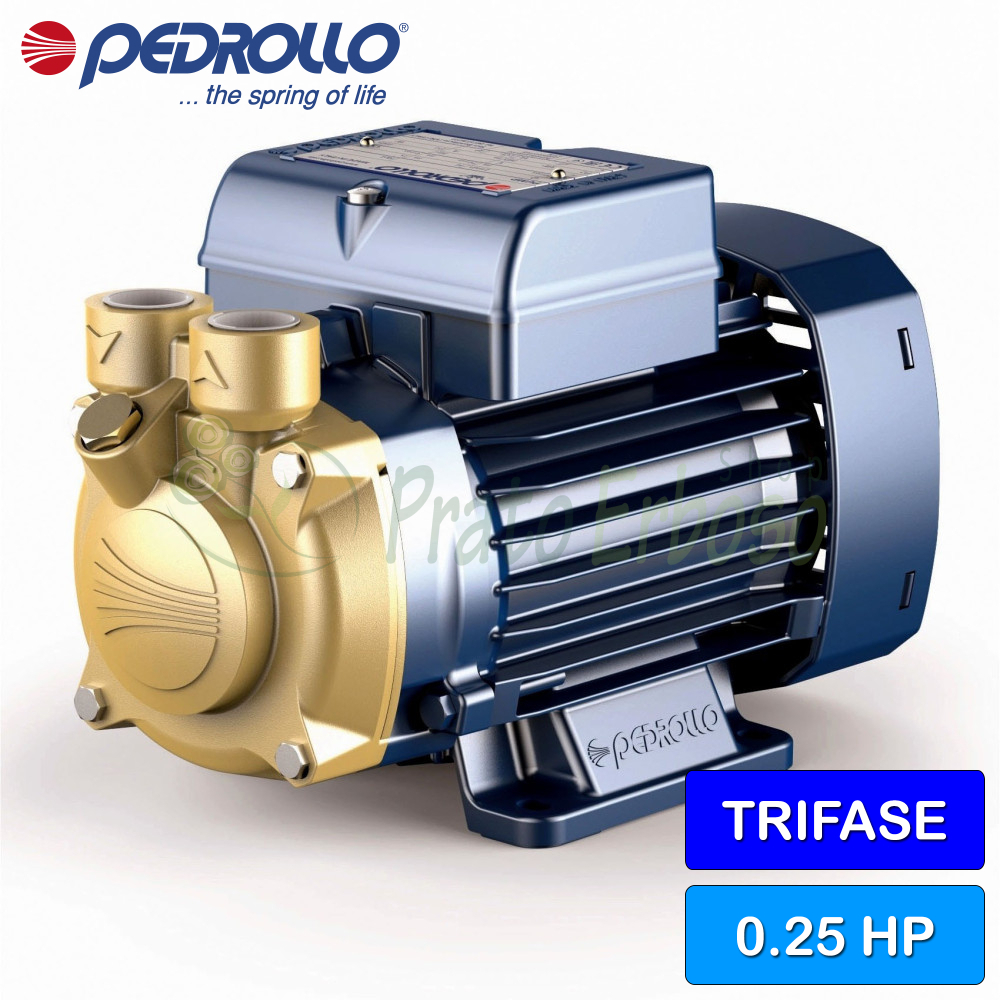

PV 55 - 0.25 HP three-phase peripheral impeller electric pump

Name: PV 55 - 0.25 HP three-phase peripheral impeller electric pump
Brand: Pedrollo
SKU: PV 55
Price: 155.67 EUR
Availability: InStock
Rating: 5 (1 reviews)

Flow rate up to 10 l/min (0.6 m³/h). Head up to 43 m. 0.18 Kw (0.25 HP) motor.

Variants:

Order it before 12:00 of tomorrow and receive it between Monday 28 April and Tuesday 29 April with Mail Boxes - 2 giorni

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Monday 28 April - Tuesday 29 April
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Monday 28 April - Tuesday 29 April
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Monday 28 April - Tuesday 29 April

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Monday 28 April - Tuesday 29 April

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Monday 28 April - Tuesday 29 April

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Monday 28 April - Tuesday 29 April

✖

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

It is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials making up the pump.

The construction features of this particularly compact brass pump are a sure guarantee against the formation of rust and oxidation; these features suggest its use in industrial fields such as cooling and air conditioning.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.18
Power (HP): 0.25
Absorption at 230V (A): 1.7
Absorption at 400V (A): 1.0
Suction mouth: 1/4 "
Delivery mouth: 1/4 "
Pump body: Brass, provided with ISO 228/1 threaded ports
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Min. flow rate (l./min.): 2
Max. flow rate (l./min.): 10
Min. head (m.): 5
Max. head (m.): 43
Jobs: air conditioning systems
Max. liquid temperature (°C): +90°C
Motor voltage: 400V
Height (cm): 14.5
Width (cm): 19.4
Depth (cm): 11.6
Weight (Kg): 4.4
Warranty (years): 2

Attachments

PV data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo PV series pumps.

Download (1.04MB)

Construction data of the PV 55-60-81-65

Bearings

Pump side motor bearing	6201 ZZ
Opposite side motor bearing	6201 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	ST1-12
LP diameter	12
Fixed ring LP	Silicon carbide
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Brass CW617N EN 12165
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	DX53D EN 10346 galvanized steel
7.0 - Lantern	Aluminum EN-AB 46100
