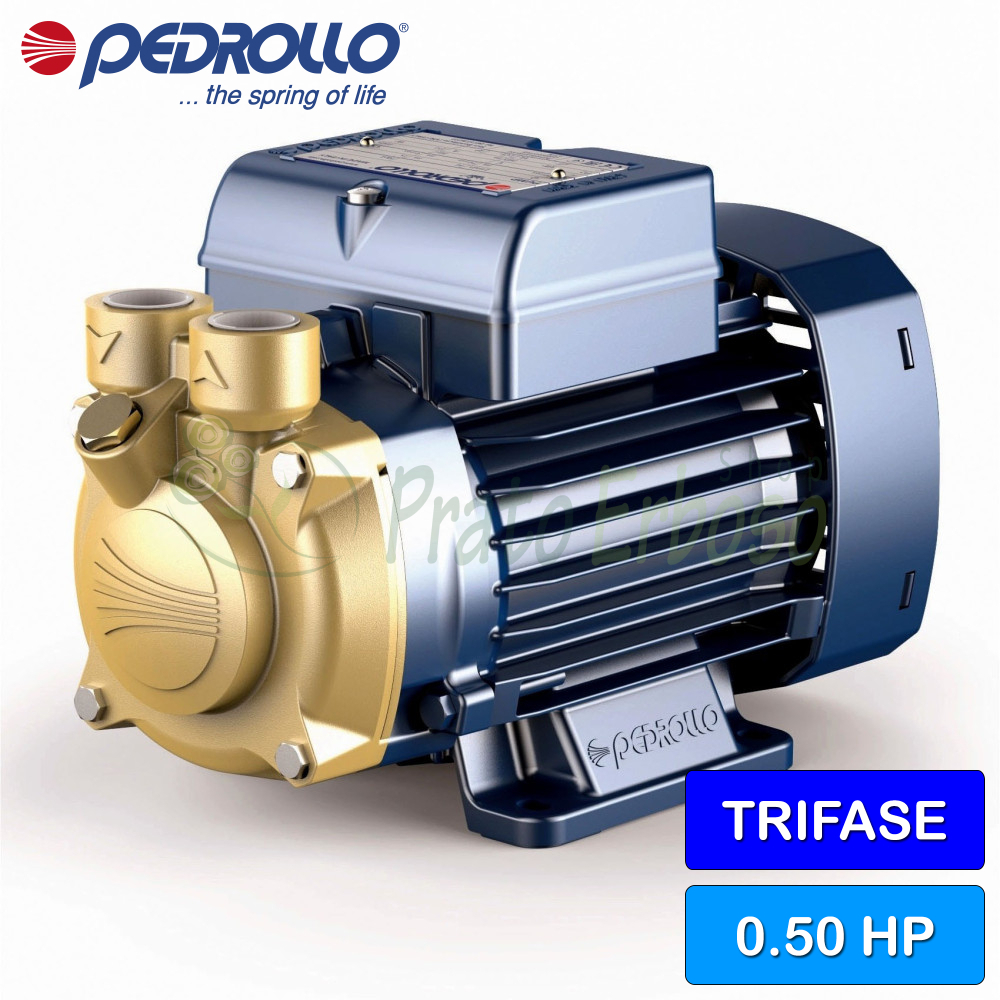

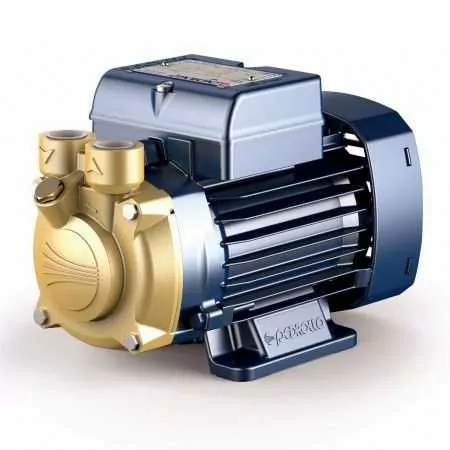

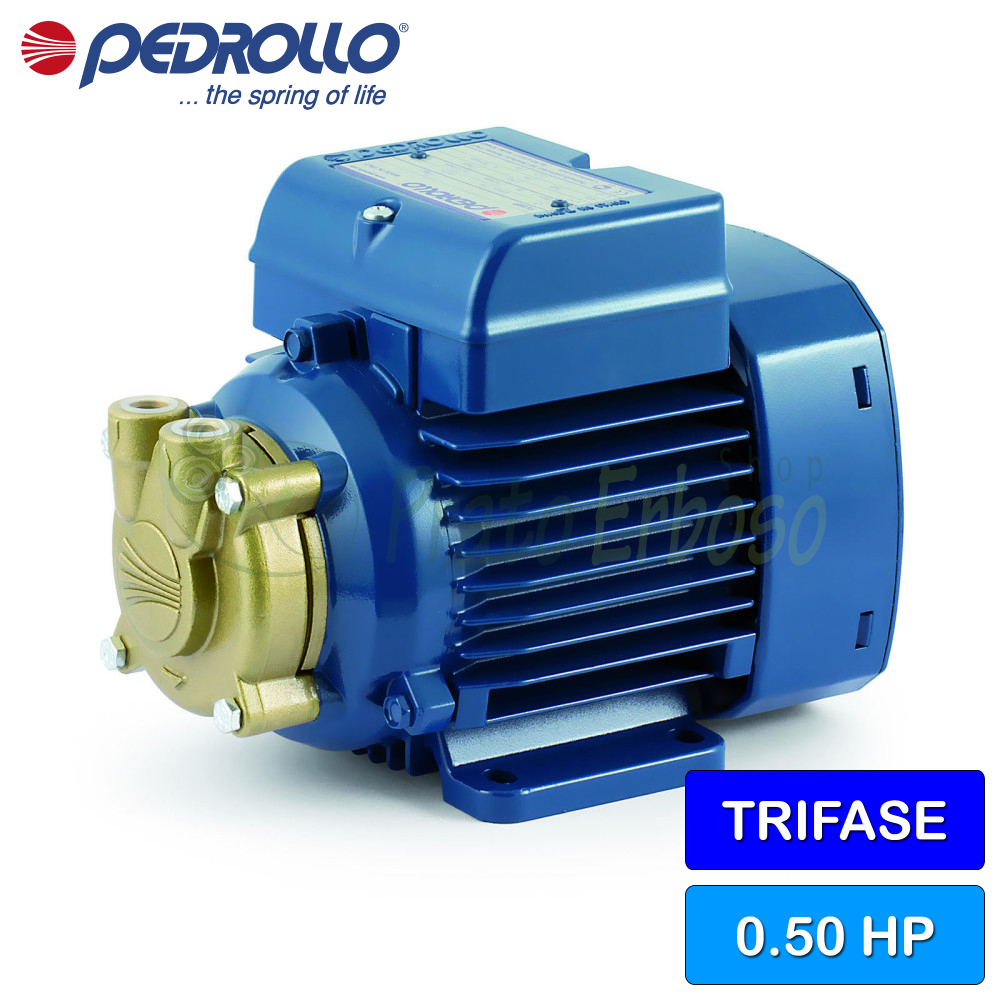

PV 81 - 0.50 HP three-phase peripheral impeller electric pump
Flow rate up to 17 l/min (1.02 m³/h). Head up to 86 m. 0.37 Kw (0.50 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
It is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials making up the pump.
The construction features of this particularly compact brass pump are a sure guarantee against the formation of rust and oxidation; these features suggest its use in industrial fields such as cooling and air conditioning.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 2.1
- Absorption at 400V (A)
- 1.2
- Suction mouth
- 1/2 "
- Delivery port
- 1/2 "
- Body Pump
- Brass, provided with ISO 228/1 threaded ports
- Impeller
- Brass
- Number of impellers
- 1
- Motor shaft
- AISI 431 stainless steel
- Check valve
- no
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- 2
- Max flow (l./min.)
- 17
- Min head (m.)
- 5
- Max head (m.)
- 85
- Employments
- air conditioning systems
- Liquid temperature max. (° C)
- +90°C
- Motor voltage
- 400 V
- Height (cm)
- 15.2
- Width (cm)
- 24.1
- Depth (cm)
- 12.0
- Weight kg)
- 5.8
- Guarantee
- 2
Models and PV performances
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the PV 55-60-81-65
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side motor bearing | 6201 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | ST1-12 |
| LP diameter | 12 |
| Fixed ring LP | Silicon carbide |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Brass CW617N EN 12165 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | DX53D EN 10346 galvanized steel |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
