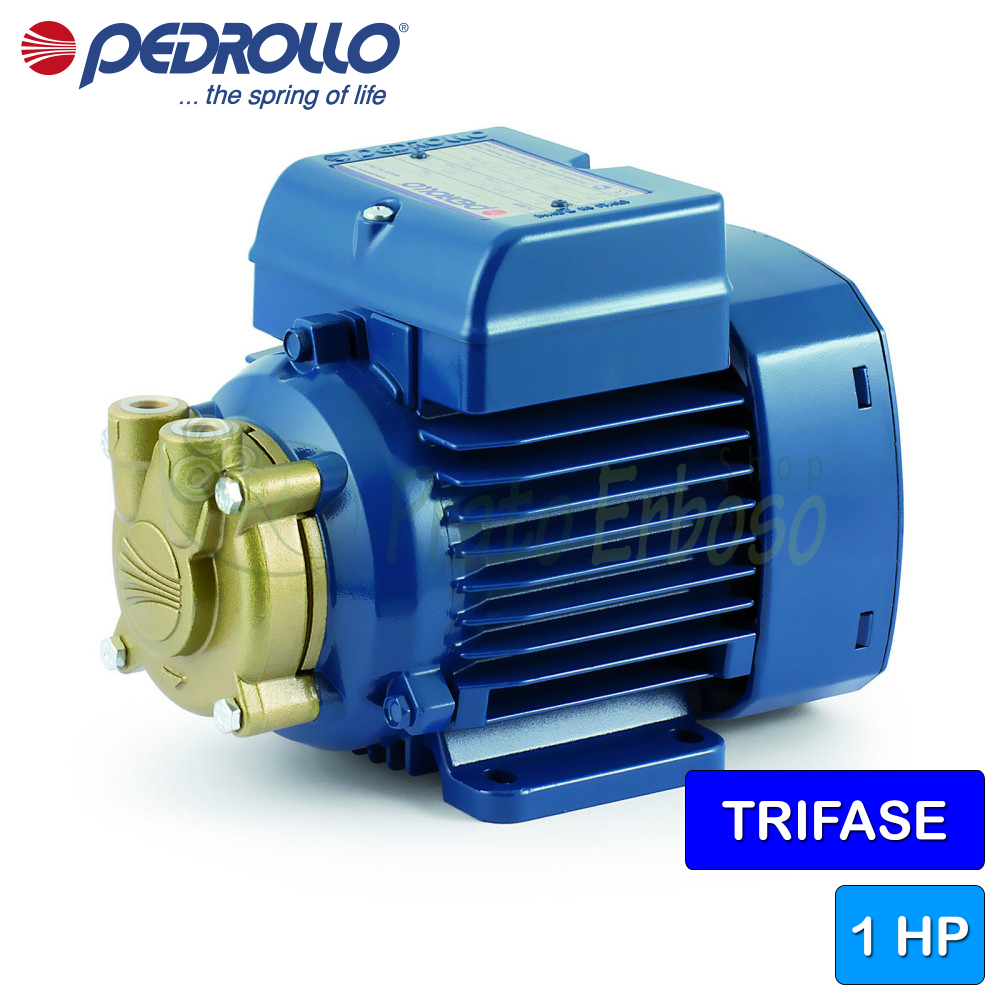

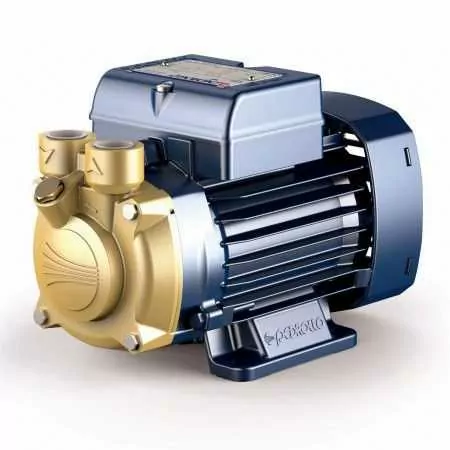

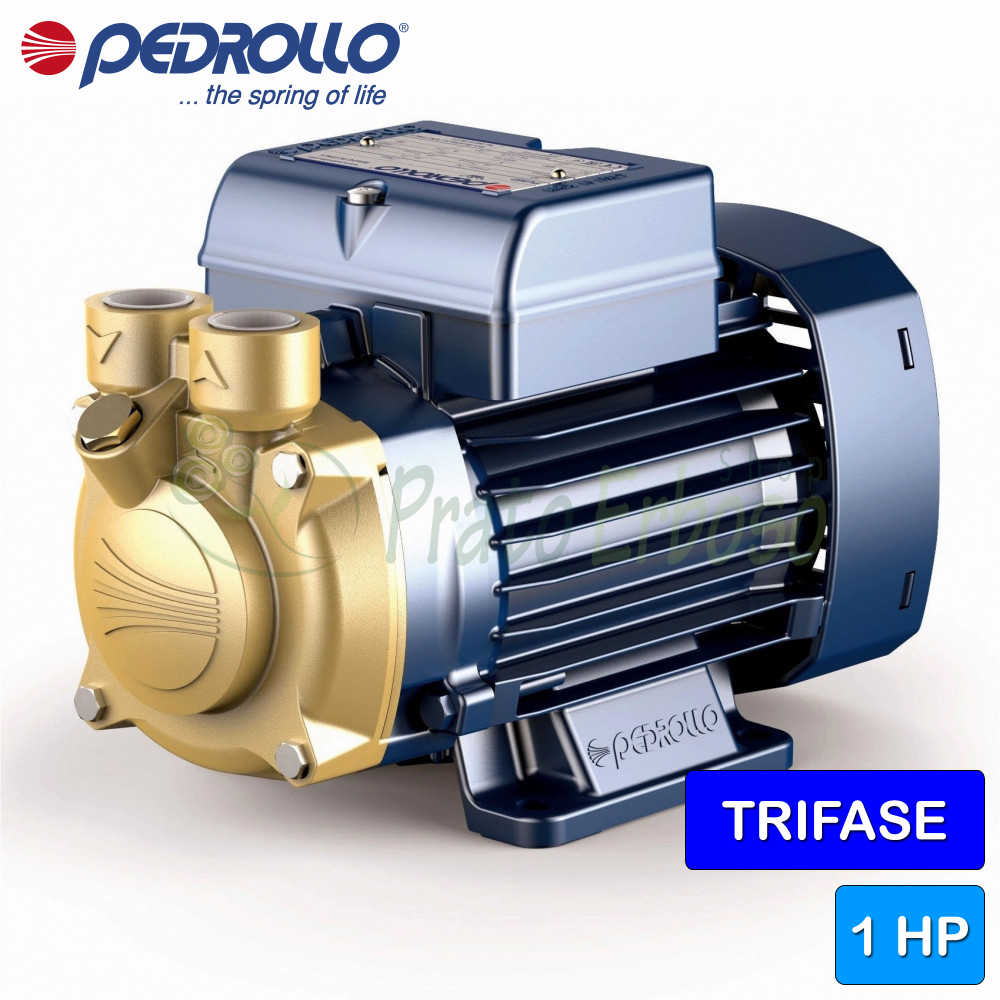

PV 70 - 1 HP three-phase peripheral impeller electric pump
Flow rate up to 45 l/min (2.7 m³/h). Head up to 74 m. 0.75 Kw (1 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo PVm 70 peripheral electric pump is recommended for use in the industrial sector.
Pedrollo suggests using it for cooling and air conditioning.
It can pump clean water without abrasive particles and liquids that are chemically non-aggressive for the pump materials.
The PVm 70 is made of brass which is a guarantee against the formation of rust and oxidation.
Particularly compact, it is easy to install.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.2
- Current consumption at 400V (A)
- 2.4
- Suction mouth
- 3/4"
- Delivery mouth
- 3/4"
- Pump body
- Brass
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 2
- Max. flow rate (l./min.)
- 45
- Min. head (m.)
- 7
- Max. head (m.)
- 74
- Jobs
- air conditioning systems
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 400V
- Height (cm)
- 18.0
- Width (cm)
- 27.6
- Depth (cm)
- 13.4
- Weight (Kg)
- 9.5
- Warranty (years)
- 2
Models and PV performances
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the PV 70-90
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | ST1-12 |
| LP diameter | 12 |
| Fixed ring LP | Silicon carbide |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Brass CW617N EN 12165 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
