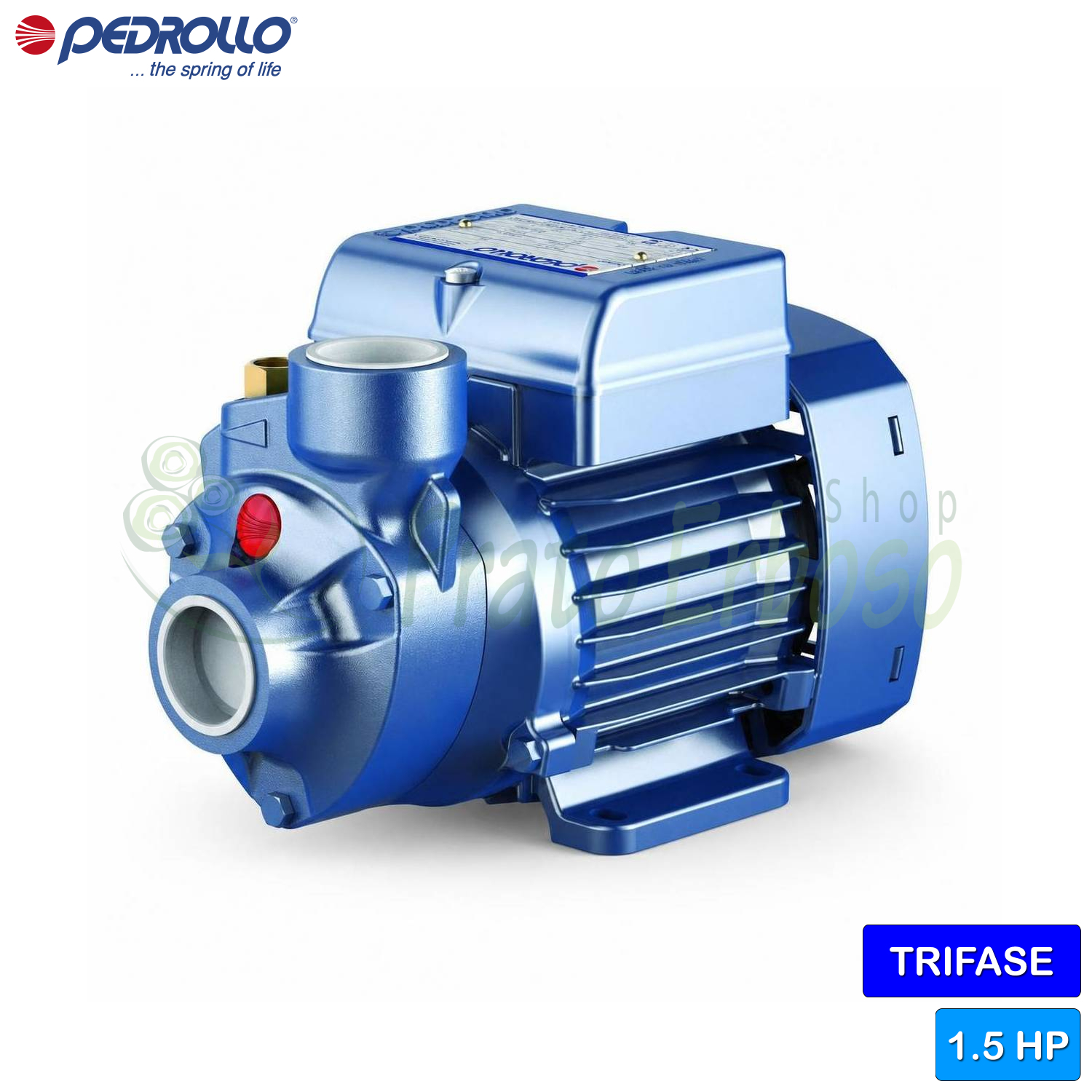

PK 100 - 1.5 HP three-phase peripheral impeller electric pump
1.1 Kw (1.5 HP) motor. Flow rate up to 70 l/min (4.2 m³/h). Head up to 80 m.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The Pedrollo PK 100 peripheral electric pump is suitable for irrigating vegetable gardens and gardens.
Suitable for water distribution in conjunction with small pressure tanks.
Convenient for home use, the PK 100 is a compact electric pump.
Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
The noise level has been reduced by 20% compared to the previous version.
The PK 100, unlike the PK 90 model, returns to having the 3/4 inch suction and delivery mouth.
The flow rate ranges from 5 to 70 litres per hour and the head from 15 to 80 metres.
Made with high quality materials and components, such as cast iron, steel, aluminum and brass, this pump is durable and reliable.
Certified IP44, the PK 100 is resistant to water and dust.
Installation must be carried out indoors or in any case protected from the elements.
- Jobs
- water supply, pressurization systems, irrigation
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 6.2
- Current consumption at 400V (A)
- 3.6
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 70
- Min. head (m.)
- 15
- Max. head (m.)
- 80
- Max. liquid temperature (°C)
- +60°C
- Motor voltage
- 230 V, 400 V
- Degree of protection
- IP 55
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Height (cm)
- 21.2
- Width (cm)
- 35.6
- Depth (cm)
- 12.5
- Weight (Kg)
- 14.9
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 6.2
- Current consumption at 400V (A)
- 3.6
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 70
- Min. head (m.)
- 15
- Max. head (m.)
- 80
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +60°C
Power supply and electrical parameters
- Motor voltage
- 230 V, 400 V
Safety and protection
- Degree of protection
- IP 55
Installation and connections
- Suction mouth
- 1"
- Delivery mouth
- 1"
Dimensions and weight
- Height (cm)
- 21.2
- Width (cm)
- 35.6
- Depth (cm)
- 12.5
- Weight (Kg)
- 14.9
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-14 |
| LP diameter | 14 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
