CB2 - FCR 15/4 - Three-phase pressure group 2x7.5 HP
2 x 5.5 kW (2 x 7.5 HP) motor. Flow rate up to 800 l/min (48 m³/h). Head up to 96 m.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | tomorrow - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | tomorrow - Friday 23 October |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | tomorrow - Friday 23 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | tomorrow |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
tomorrow - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow - Friday 23 October
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
tomorrow - Friday 23 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow
The CB2 - FCR 15/4 pressure group by Pedrollo is recommended for domestic, civil, agricultural and industrial sectors.
Particularly suitable for residential and commercial water supply, pressure boosting in industrial applications, irrigation of gardens and sports fields.
Suitable for pumping clean water or aqueous solutions that do not damage the components.

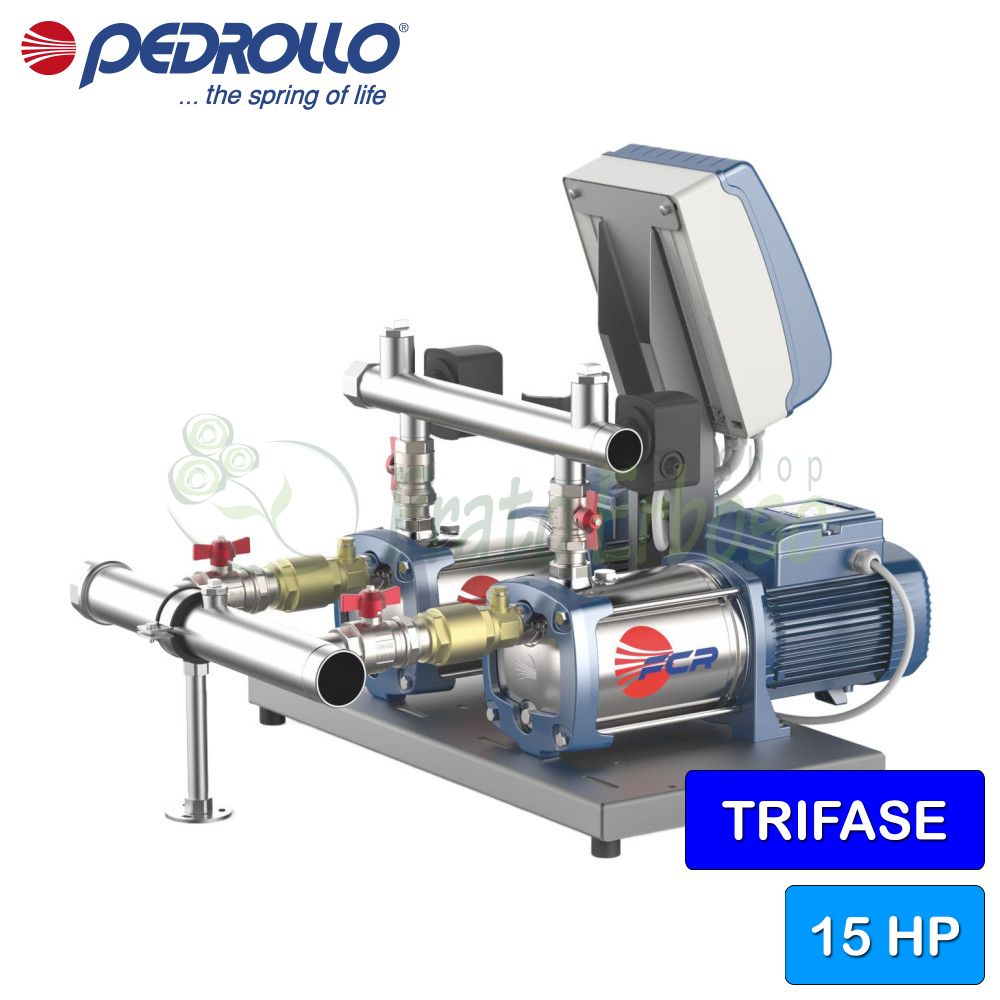

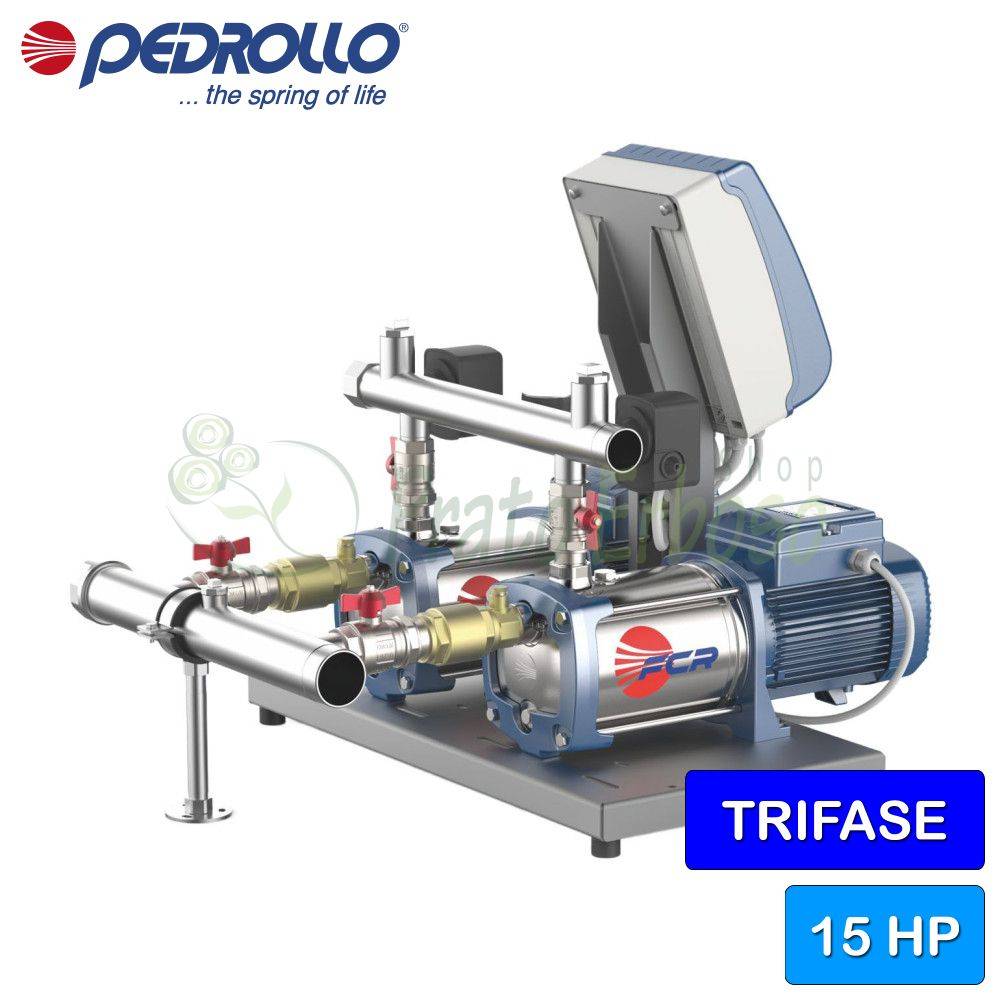

The CB2 - FCR 15/4 pressure set consists of two FCR 15/4 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.
It has a flow rate ranging from 10 to 800 litres per minute and a head from 36 to 96 metres.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 11
- Power (HP)
- 15
- Current consumption at 400V (A)
- 22.8
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 36
- Max. head (m.)
- 96
- Suction mouth
- 4"
- Delivery mouth
- 3"
- Height (cm)
- 70.4
- Width (cm)
- 70.0
- Depth (cm)
- 110.2
- Weight (Kg)
- 191
- Warranty (years)
- 2
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 11
- Power (HP)
- 15
- Current consumption at 400V (A)
- 22.8
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 36
- Max. head (m.)
- 96
Installation and connections
- Suction mouth
- 4"
- Delivery mouth
- 3"
Dimensions and weight
- Height (cm)
- 70.4
- Width (cm)
- 70.0
- Depth (cm)
- 110.2
- Weight (Kg)
- 191
Packaging, maintenance, and warranty
- Warranty (years)
- 2
Compare with Similar Products
 CB2 - FCR 15/4 - Three-phase pressure group 2x7.5 HPThis product 2 x 5.5 kW (2 x 7.5 HP) motor. Flow rate up to 800 l/min (48 m³/h). Head up to 96 m. |  CB2 - FCR 15/3 - Three-phase pressure group 2x5.5 HP 2 x 4 kW (2 x 5.5 HP) motors. Flow rate up to 800 l/min (48 m³/h). Head up to 72 m. | |
|---|---|---|
| Price | Price €8,160.58 -45% €4,488.32 | Price €7,686.00 -45% €4,227.30 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 11 | Power (Kw) 8 |
| Power (HP) | Power (HP) 15 | Power (HP) 11 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 22.8 | Current consumption at 400V (A) 16.6 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 |
| Min. head (m.) | Min. head (m.) 36 | Min. head (m.) 27 |
| Max. head (m.) | Max. head (m.) 96 | Max. head (m.) 72 |
| Suction mouth | Suction mouth 4" | Suction mouth 4" |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" |
| Height (cm) | Height (cm) 70.4 | Height (cm) 70.4 |
| Width (cm) | Width (cm) 70.0 | Width (cm) 70.0 |
| Depth (cm) | Depth (cm) 110.2 | Depth (cm) 105.8 |
| Weight (Kg) | Weight (Kg) 191 | Weight (Kg) 179 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
