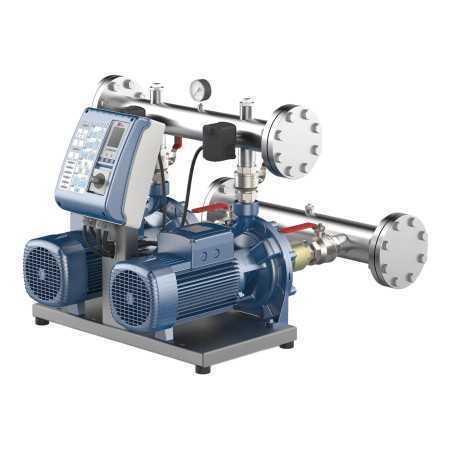

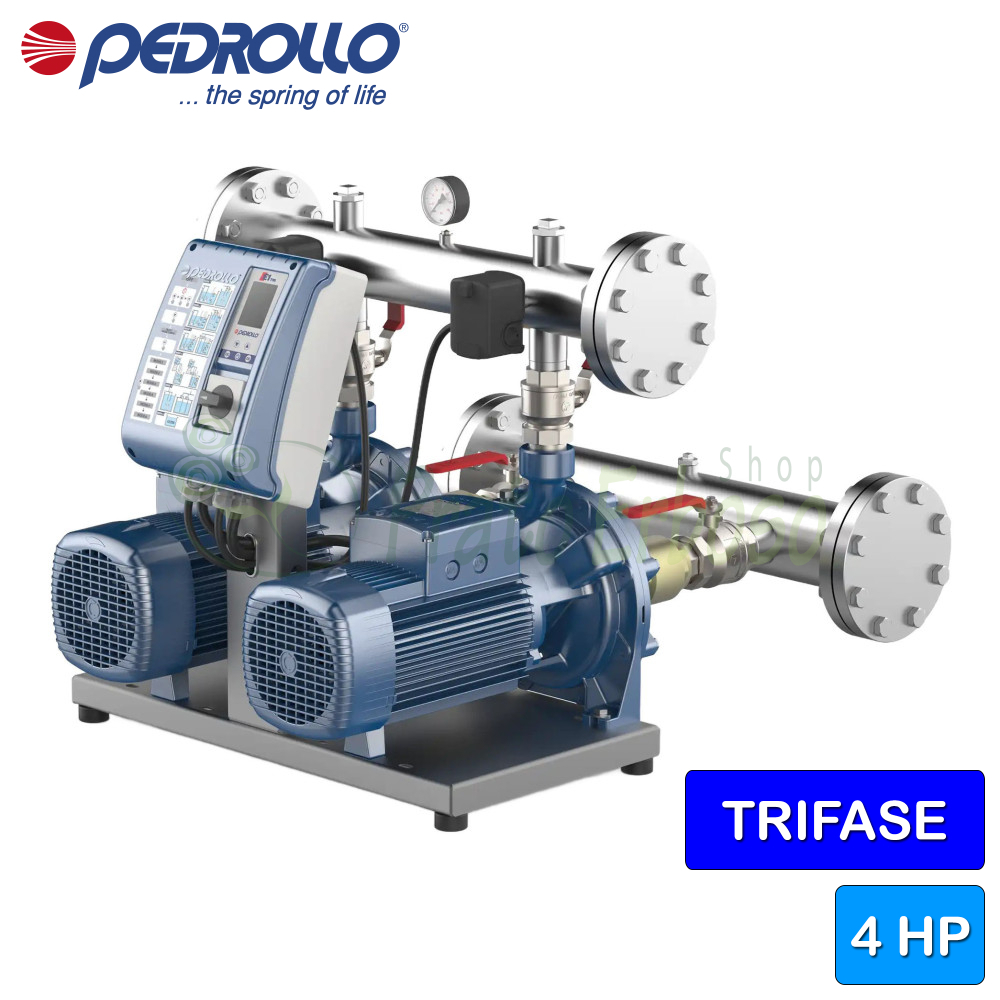

CB2 - HT 8/4 - 2x2 HP three-phase pressure booster set
2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 62.5 m.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 27 October - Wednesday 28 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 27 October - Wednesday 28 October |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Tuesday 27 October - Wednesday 28 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 28 October - Monday 2 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 27 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 27 October - Wednesday 28 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 27 October - Wednesday 28 October
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 27 October - Wednesday 28 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 28 October - Monday 2 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 27 October
-
Telephone support for information before purchasing. -
Reinforced packaging to reduce transport damage. -
After-sales assistance for product installation. -
We supply all spare parts on this product.
The Pedrollo CB2 - HT 8/4 pressure group is suitable for pumping clean water or aqueous solutions that do not damage the components.
Its use is recommended in the domestic, civil, agricultural and industrial sectors for supply and pressure increase.
The CB2 - HT 8/4 pressure group consists of two HT 8/4 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.
Each unit is equipped with ball valves on the delivery and suction sides, and non-return valves on the suction side.
The pressure switches, on the other hand, are used to turn the pumps on and off based on the setting.
The E2 control panel provides protection against dry running.
The CB2 - HT 8/4 pressure group has a flow rate ranging from 40 to 400 litres per minute and a head from 23 to 62.5 metres.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Current consumption at 400V (A)
- 8.0
- Minimum flow rate (l./min.)
- 40
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 23
- Max. head (m.)
- 62.5
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
- Height (cm)
- 67.4
- Width (cm)
- 53.0
- Depth (cm)
- 87.3
- Weight (Kg)
- 111
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Current consumption at 400V (A)
- 8.0
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 40
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 23
- Max. head (m.)
- 62.5
Installation and connections
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
Dimensions and weight
- Height (cm)
- 67.4
- Width (cm)
- 53.0
- Depth (cm)
- 87.3
- Weight (Kg)
- 111
Compare with Similar Products
 CB2 - HT 8/4 - 2x2 HP three-phase pressure booster setThis product 2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 62.5 m. |  CB2 - HT 8/3 - Three-phase pressure group 2x1.5 HP 2 x 1.1 kW (2 x 1.5 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 47 m. |  CB2 - HT 8/5 - 2x2.5 HP three-phase pressure booster set 2 x 1.8 kW (2 x 2.5 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 78 m. |  CB2 - HT 8/6 - 2x3 HP three-phase pressure booster set 2 x 2.2 kW (2 x 3 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 94 m. | |
|---|---|---|---|---|
| Price | Price €4,804.36 -45% €2,642.40 | Price €4,662.84 -45% €2,564.56 | Price €4,976.38 -45% €2,737.01 | Price €5,086.18 -45% €2,797.40 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 3 | Power (Kw) 2.2 | Power (Kw) 3.6 | Power (Kw) 4.4 |
| Power (HP) | Power (HP) 4 | Power (HP) 3 | Power (HP) 5 | Power (HP) 6 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 8.0 | Current consumption at 400V (A) 6.6 | Current consumption at 400V (A) 9.6 | Current consumption at 400V (A) 10.8 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 40 | Minimum flow rate (l./min.) 40 | Minimum flow rate (l./min.) 40 | Minimum flow rate (l./min.) 40 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 400 | Max. flow rate (l./min.) 400 | Max. flow rate (l./min.) 400 | Max. flow rate (l./min.) 400 |
| Min. head (m.) | Min. head (m.) 23 | Min. head (m.) 17 | Min. head (m.) 28.5 | Min. head (m.) 34.5 |
| Max. head (m.) | Max. head (m.) 62.5 | Max. head (m.) 47 | Max. head (m.) 78 | Max. head (m.) 94 |
| Suction mouth | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 |
| Delivery mouth | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 |
| Height (cm) | Height (cm) 67.4 | Height (cm) 67.4 | Height (cm) 85.4 | Height (cm) 85.4 |
| Width (cm) | Width (cm) 53.0 | Width (cm) 53.0 | Width (cm) 53.0 | Width (cm) 53.0 |
| Depth (cm) | Depth (cm) 87.3 | Depth (cm) 87.3 | Depth (cm) 87.3 | Depth (cm) 87.3 |
| Weight (Kg) | Weight (Kg) 111 | Weight (Kg) 107 | Weight (Kg) 120 | Weight (Kg) 120 |
