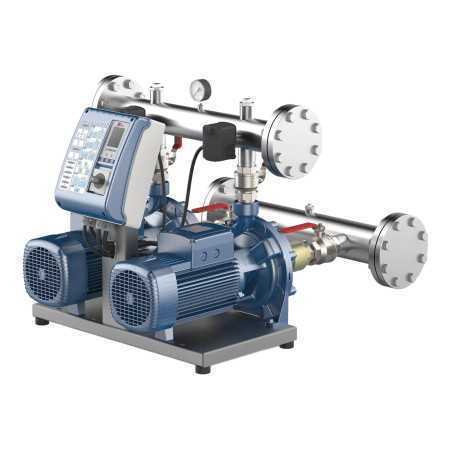

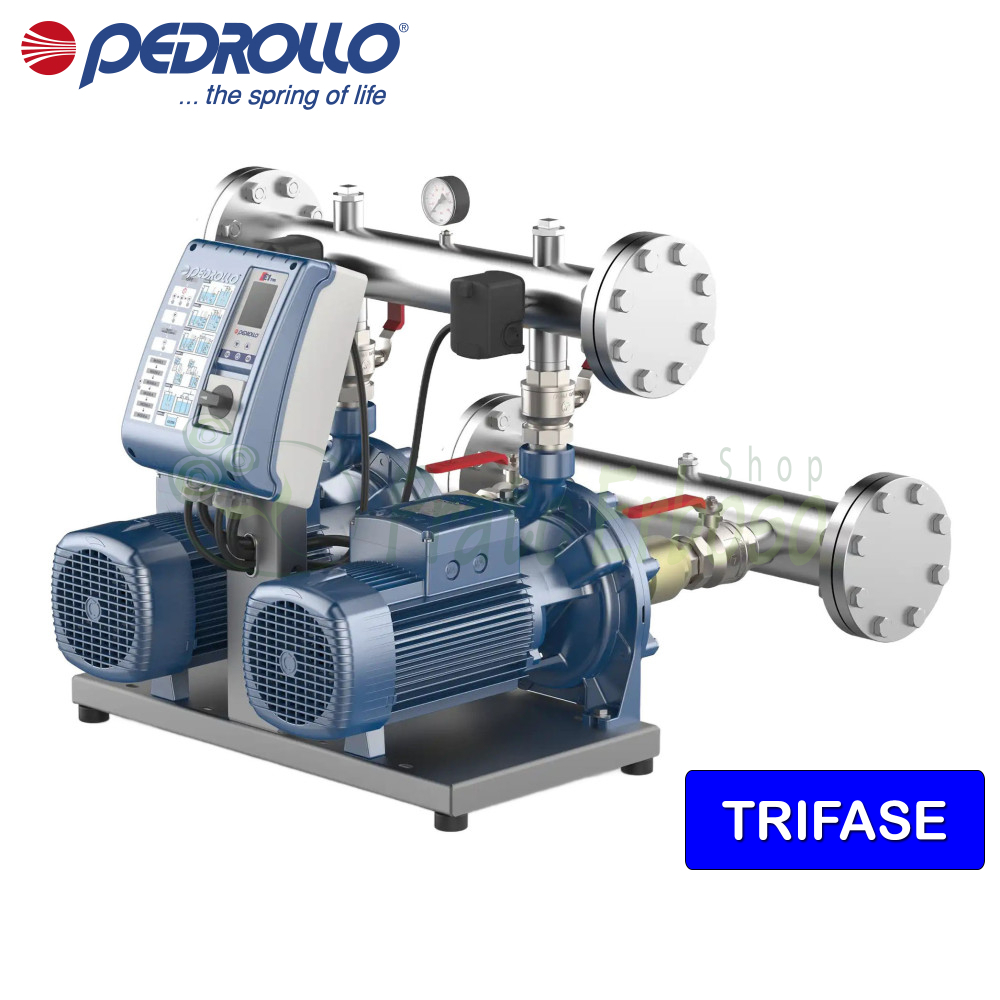

CB2 - HT 8/5 - 2x2.5 HP three-phase pressure booster set
2 x 1.8 kW (2 x 2.5 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 78 m.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 4 March - Thursday 5 March |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 4 March - Thursday 5 March |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Wednesday 4 March - Thursday 5 March |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 5 March - Monday 9 March |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | tomorrow |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | tomorrow |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 4 March - Thursday 5 March
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 4 March - Thursday 5 March
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 4 March - Thursday 5 March
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 5 March - Monday 9 March
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
tomorrow
The Pedrollo CB2 - HT 8/5 pressure group is recommended for domestic, civil, agricultural and industrial sectors.
Particularly suitable for residential and commercial water supply, pressure boosting in industrial applications, irrigation of gardens and sports fields.
Suitable for pumping clean water or aqueous solutions that do not damage the components.
The CB2 - HT 8/5 pressure group consists of two HT 8/5 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.
It has a flow rate ranging from 10 to 400 litres per minute and a head from 28.5 to 78 metres.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3.6
- Power (HP)
- 5
- Current consumption at 400V (A)
- 9.6
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
- Minimum flow rate (l./min.)
- 40
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 28.5
- Max. head (m.)
- 78
- Height (cm)
- 85.4
- Width (cm)
- 53.0
- Depth (cm)
- 87.3
- Weight (Kg)
- 120
Compare with Similar Products
 CB2 - HT 8/5 - 2x2.5 HP three-phase pressure booster setThis product 2 x 1.8 kW (2 x 2.5 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 78 m. |  CB2 - HT 8/4 - 2x2 HP three-phase pressure booster set2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 62.5 m. |  CB2 - HT 8/6 - 2x3 HP three-phase pressure booster set2 x 2.2 kW (2 x 3 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 94 m. |  CB2 - HT 8/7 - 2x4 HP three-phase pressure booster set2 x 3 kW (2 x 4 HP) motor. Flow rate up to 400 l/min (24 m³/h). Head up to 109 m. | |
|---|---|---|---|---|
| Price | Price €4,712.86 -45% €2,592.07 | Price €4,535.96 -45% €2,494.78 | Price €4,856.82 -45% €2,671.25 | Price €5,843.80 -45% €3,214.09 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 3.6 | Power (Kw) 3 | Power (Kw) 4.4 | Power (Kw) 6 |
| Power (HP) | Power (HP) 5 | Power (HP) 4 | Power (HP) 6 | Power (HP) 8 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 9.6 | Current consumption at 400V (A) 8.0 | Current consumption at 400V (A) 10.8 | Current consumption at 400V (A) 14.0 |
| Suction mouth | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 | Suction mouth 2" 1/2 |
| Delivery mouth | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 40 | Minimum flow rate (l./min.) 40 | Minimum flow rate (l./min.) 40 | Minimum flow rate (l./min.) 40 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 400 | Max. flow rate (l./min.) 400 | Max. flow rate (l./min.) 400 | Max. flow rate (l./min.) 400 |
| Min. head (m.) | Min. head (m.) 28.5 | Min. head (m.) 23 | Min. head (m.) 34.5 | Min. head (m.) 40 |
| Max. head (m.) | Max. head (m.) 78 | Max. head (m.) 62.5 | Max. head (m.) 94 | Max. head (m.) 109 |
| Height (cm) | Height (cm) 85.4 | Height (cm) 67.4 | Height (cm) 85.4 | Height (cm) 67.4 |
| Width (cm) | Width (cm) 53.0 | Width (cm) 53.0 | Width (cm) 53.0 | Width (cm) 70.0 |
| Depth (cm) | Depth (cm) 87.3 | Depth (cm) 87.3 | Depth (cm) 87.3 | Depth (cm) 87.3 |
| Weight (Kg) | Weight (Kg) 120 | Weight (Kg) 111 | Weight (Kg) 120 | Weight (Kg) 145 |
