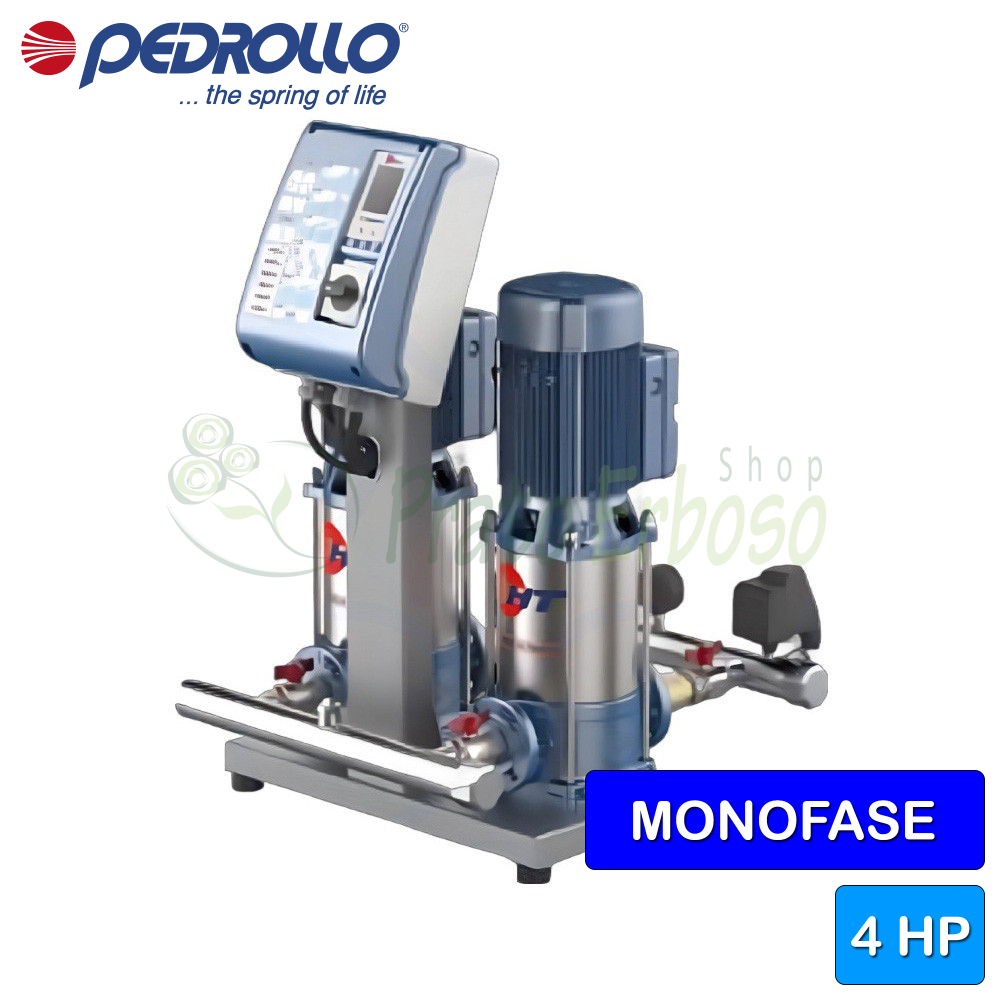

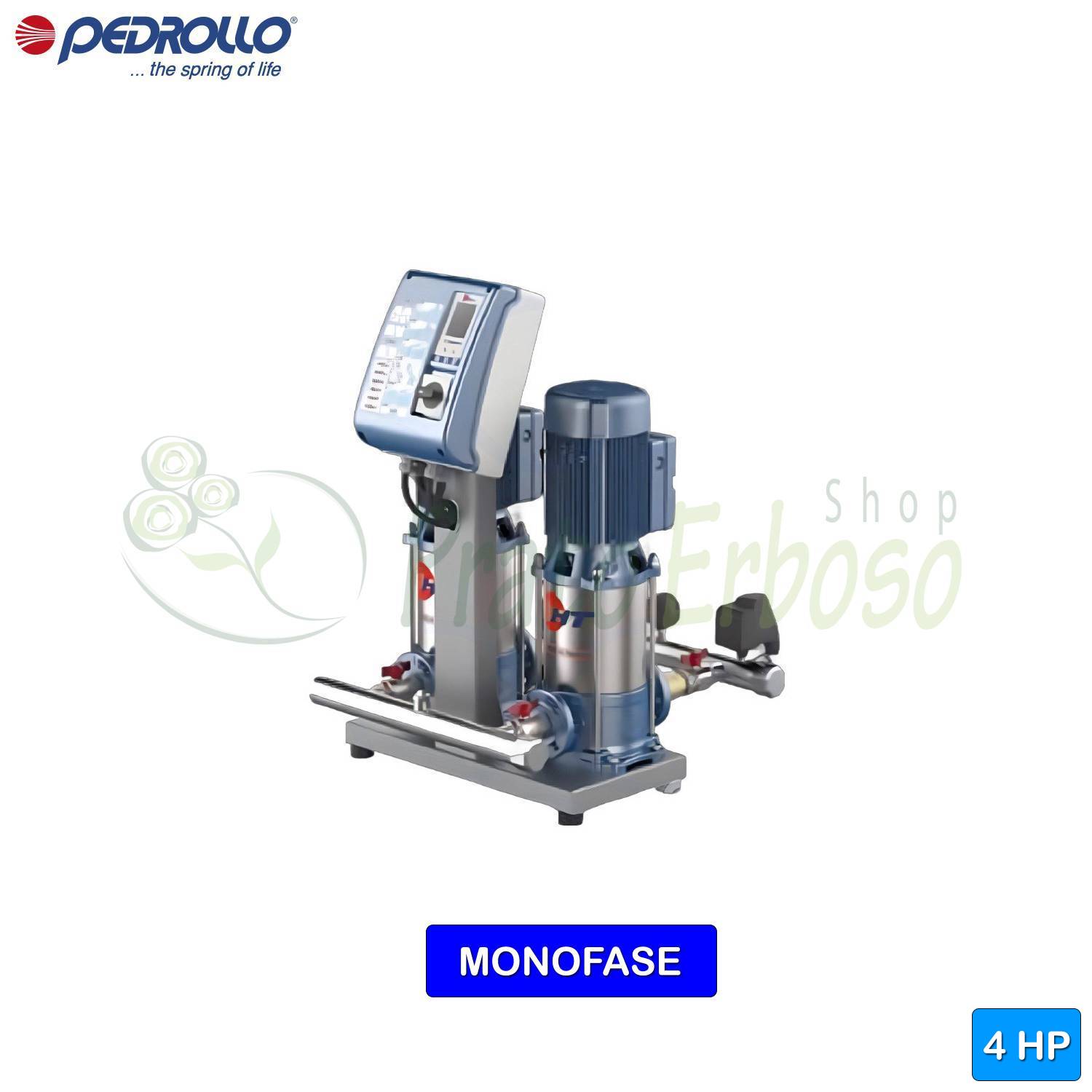

CB2 - HTm 10/3 - 2x2 HP single-phase pressure booster set
2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 47 m.
The Pedrollo CB2 - HTm 10/3 pressure group is suitable for residential and commercial water supply, for irrigation and for the movement of clean water in general, including in the industrial field.
Consisting of two HTm 10/3 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.
Each unit is equipped with ball valves on the delivery and suction sides, and non-return valves on the suction side.
The pressure switches, on the other hand, are used to turn the pumps on and off based on the setting.
The E2 control panel provides protection against dry running.
The CB2 - HTm 10/3 pressure group has a flow rate ranging from 60 to 500 litres per minute and a head from 13 to 47 metres.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Absorption at 230V (A)
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
- Minimum flow rate (l./min.)
- Max. flow rate (l./min.)
- Min. head (m.)
- Max. head (m.)
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
