CB2 - HTm 3/6 - 2x2 HP single-phase pressure group
2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 180 l/min (10.8 m³/h). Head up to 97 m.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 27 October - Wednesday 28 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 27 October - Wednesday 28 October |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Tuesday 27 October - Wednesday 28 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 28 October - Monday 2 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 27 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 27 October - Wednesday 28 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 27 October - Wednesday 28 October
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 27 October - Wednesday 28 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 28 October - Monday 2 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 27 October
-
Telephone support for information before purchasing. -
Reinforced packaging to reduce transport damage. -
After-sales assistance for product installation. -
We supply all spare parts on this product.

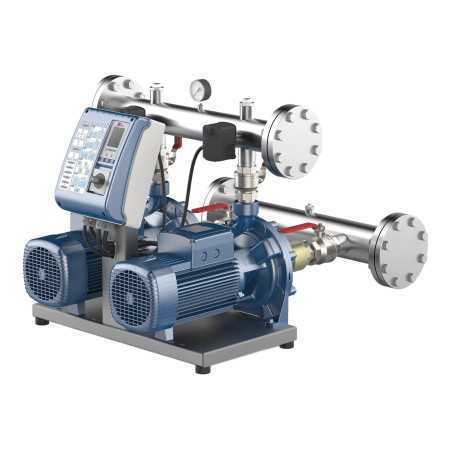

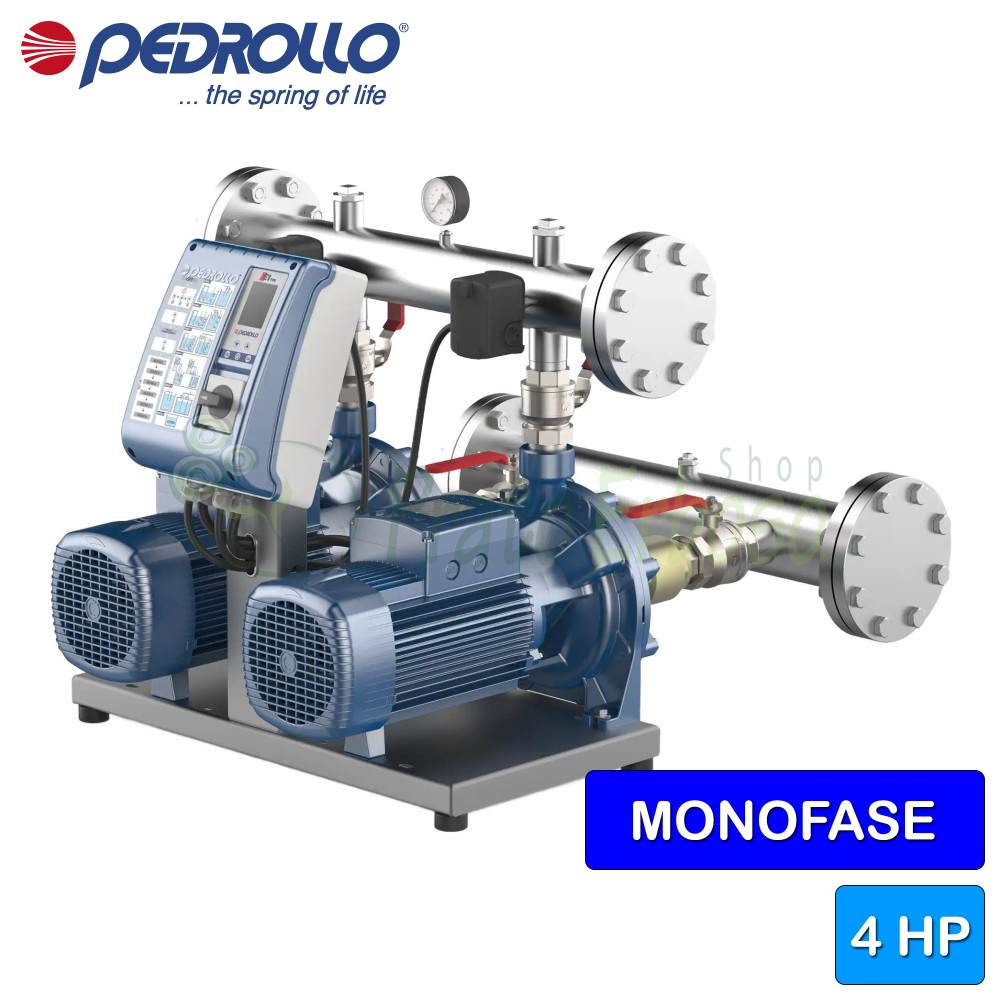

The Pedrollo CB2 - HTm 3/6 pressure booster set is suitable for residential and commercial water supply, for irrigation and for the movement of clean water in general, including in the industrial field.
Consisting of two HTm 3/6 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.
Each unit is equipped with ball valves on the delivery and suction sides, and non-return valves on the suction side.
The pressure switches, on the other hand, are used to turn the pumps on and off based on the setting.
The E2 control panel provides protection against dry running.
The CB2 - HTm 3/6 pressure group has a flow rate ranging from 10 to 180 litres per minute and a head from 48 to 97 metres.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Absorption at 230V (A)
- 21.0
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 180
- Min. head (m.)
- 48
- Max. head (m.)
- 97
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Height (cm)
- 85.4
- Width (cm)
- 53.0
- Depth (cm)
- 73.2
- Weight (Kg)
- 102
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Absorption at 230V (A)
- 21.0
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 180
- Min. head (m.)
- 48
- Max. head (m.)
- 97
Installation and connections
- Suction mouth
- 2"
- Delivery mouth
- 2"
Dimensions and weight
- Height (cm)
- 85.4
- Width (cm)
- 53.0
- Depth (cm)
- 73.2
- Weight (Kg)
- 102
Compare with Similar Products
 CB2 - HTm 3/6 - 2x2 HP single-phase pressure groupThis product 2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 180 l/min (10.8 m³/h). Head up to 97 m. |  CB2 - HTm 3/4 - Single-phase pressure group 2x1 HP 2 x 0.75 kW (2 x 1 HP) motor. Flow rate up to 180 l/min (10.8 m³/h). Head up to 65 m. |  CB2 - HTm 3/5 - Single-phase pressure group 2x1.5 HP 2 x 1.1 kW (2 x 1.5 HP) motor. Flow rate up to 180 l/min (10.8 m³/h). Head up to 81 m. | |
|---|---|---|---|
| Price | Price €4,099.20 -45% €2,254.56 | Price €3,856.42 -45% €2,121.03 | Price €3,958.90 -45% €2,177.40 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 3 | Power (Kw) 1.5 | Power (Kw) 2.2 |
| Power (HP) | Power (HP) 4 | Power (HP) 2 | Power (HP) 3 |
| Absorption at 230V (A) | Absorption at 230V (A) 21.0 | Absorption at 230V (A) 15.0 | Absorption at 230V (A) 18.0 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 180 | Max. flow rate (l./min.) 180 | Max. flow rate (l./min.) 180 |
| Min. head (m.) | Min. head (m.) 48 | Min. head (m.) 33 | Min. head (m.) 41 |
| Max. head (m.) | Max. head (m.) 97 | Max. head (m.) 65 | Max. head (m.) 81 |
| Suction mouth | Suction mouth 2" | Suction mouth 2" | Suction mouth 2" |
| Delivery mouth | Delivery mouth 2" | Delivery mouth 2" | Delivery mouth 2" |
| Height (cm) | Height (cm) 85.4 | Height (cm) 67.4 | Height (cm) 67.4 |
| Width (cm) | Width (cm) 53.0 | Width (cm) 53.0 | Width (cm) 53.0 |
| Depth (cm) | Depth (cm) 73.2 | Depth (cm) 73.2 | Depth (cm) 73.2 |
| Weight (Kg) | Weight (Kg) 102 | Weight (Kg) 99 | Weight (Kg) 100 |
