CB2 - MK 5/7 - Three-phase pressure group 2x2.5 HP
2 THREE-PHASE ELECTRIC PUMPS.
Two 1.8 kW (2.5 HP) motors. Flow rate up to 240 l/min (14.4 m³/h). Head up to 98 m.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | tomorrow - Monday 30 March |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | tomorrow - Monday 30 March |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | tomorrow - Monday 30 March |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 1 April - Monday 6 April |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | tomorrow |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
tomorrow - Monday 30 March
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow - Monday 30 March
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
tomorrow - Monday 30 March
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 1 April - Monday 6 April
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow

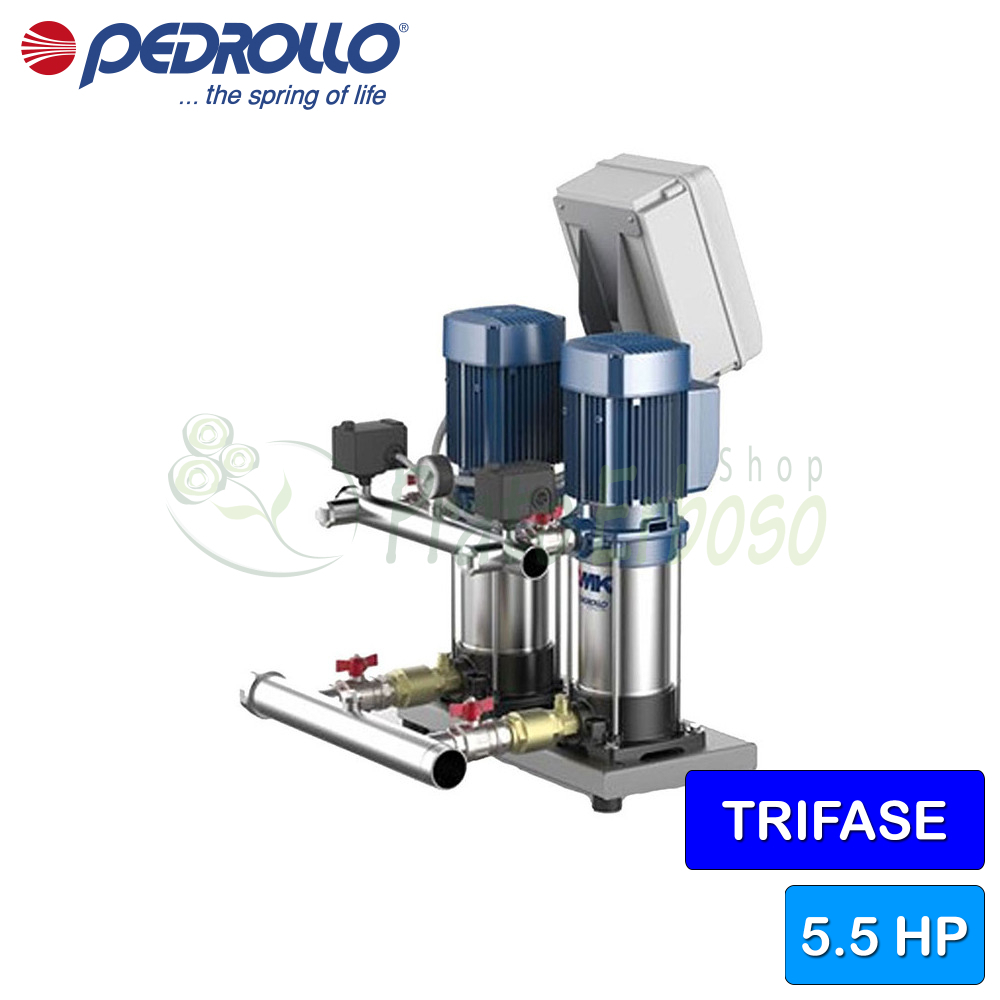

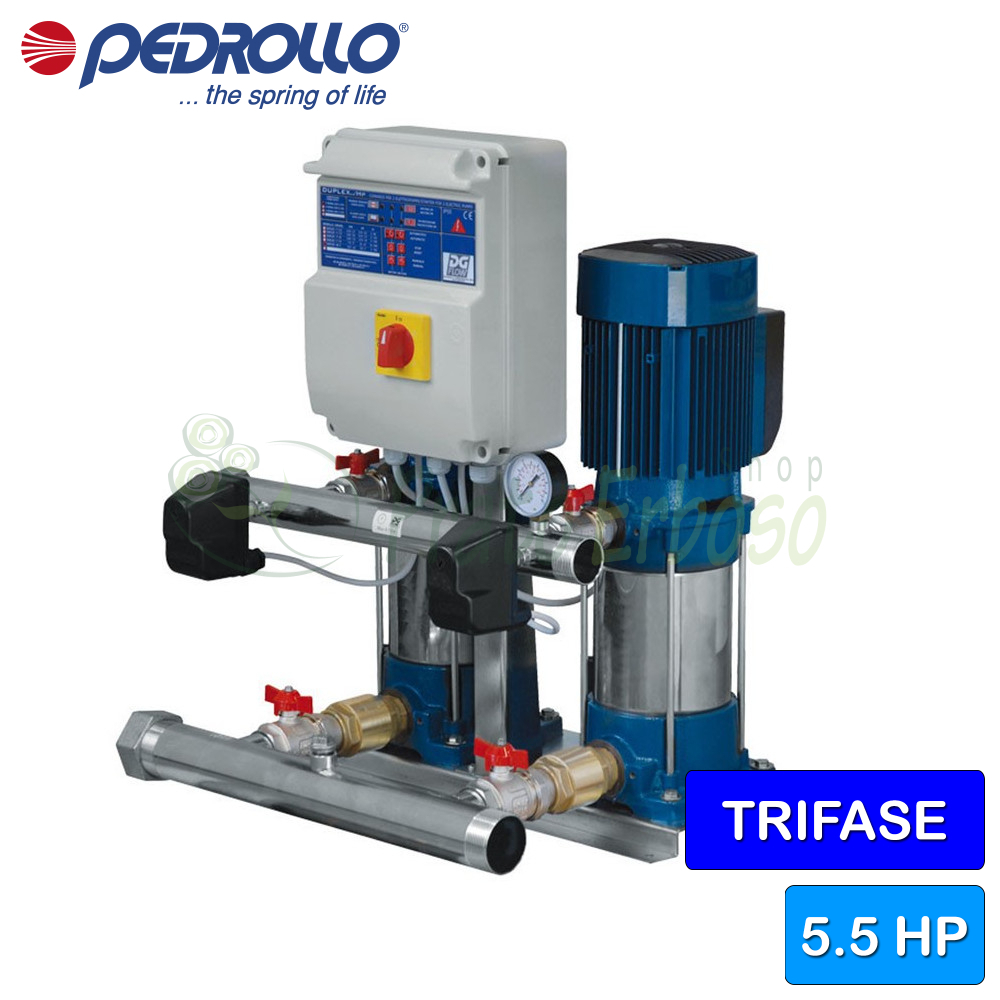

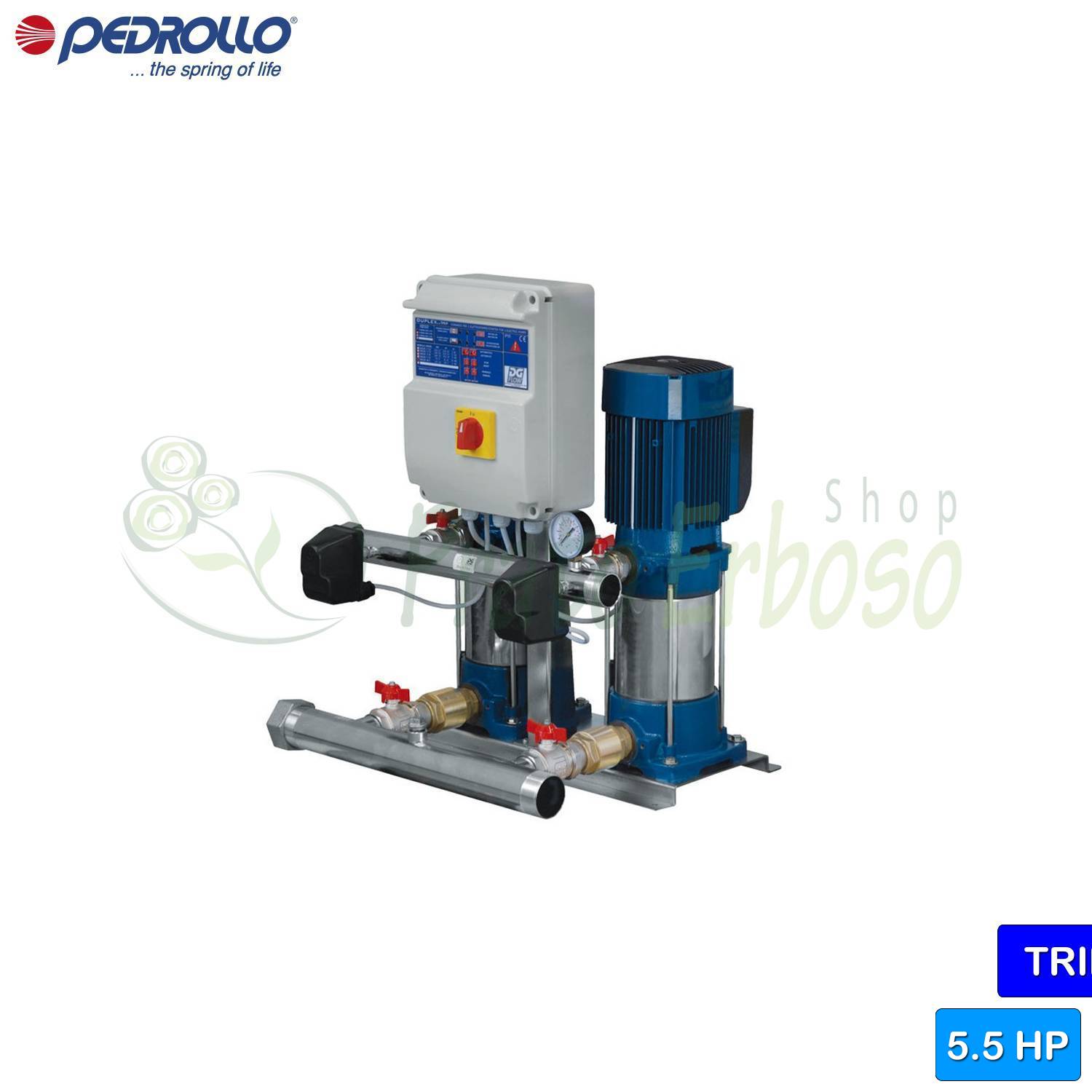

The CB2 - MK 5/7 pressure group from the CB2-CP series by Pedrollo is made up of 2 electric pumps, a base, a pressure switch and an electrical panel.
The electric pumps are connected in parallel via suction and delivery manifolds.
The base is made of metal profile and is equipped with adjustable anti-vibration feet.
The pressure switches are connected to the control panel to turn the pumps on and off.
The electrical panel, on the other hand, guarantees protection against dry running and allows the operating parameters of the entire unit to be modified.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3.6
- Power (HP)
- 5
- Current consumption at 400V (A)
- 9
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 240
- Min. head (m.)
- 34
- Max. head (m.)
- 98
- Height (cm)
- 69.5
- Width (cm)
- 53
- Depth (cm)
- 86.8
- Weight (Kg)
- 66
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
